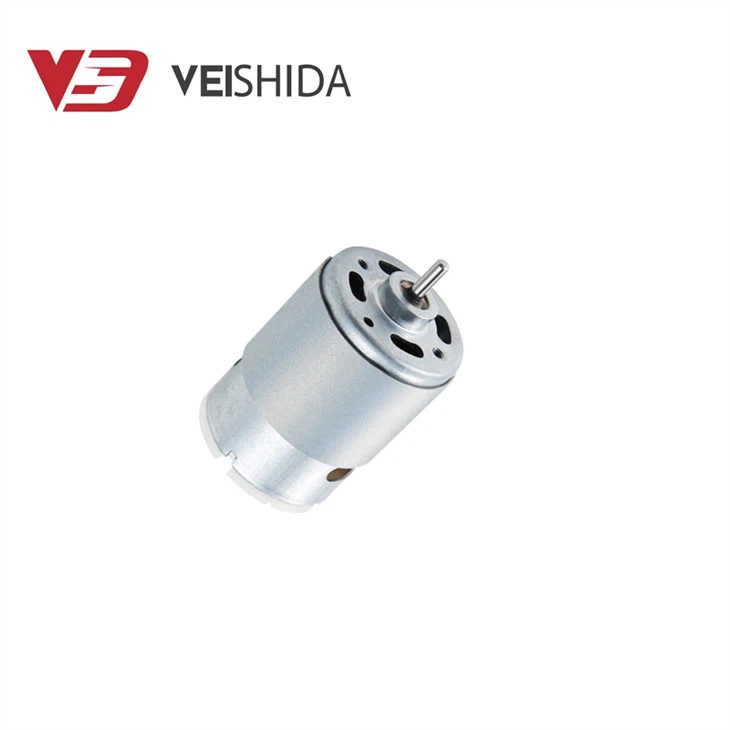

12V 545 Brushed Motor High Speed
Shaft extension: 15.5±0.5mm,
axial clearance: 0.05-0.5mm,
length: 50mm,
width: 37.5mm
12V 545 brushed motor high speed are widely used in medical, beauty, maternal and child health care, smart home, vehicle, office, model aircraft, toys and models, robots and other fields. We have many years of experience in micro-motor production and research and development, escort your products, and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3 months - 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VRK-545SA |
Usage | Home appliances, automobiles, auto cruise systems, vibrators, massagers, hair dryers, water pumps, air pumps, medical, industrial, personal care, robotics, etc. |
Type | Brushed dc motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brush |
Protect Feature | Customizated |
Efficiency | 80% |
Rated power | 4.973 (W) |
Rated speed | 3600±10% (rpm) |
Rated Voltage | 12 (V) |
Start Current | 3.454 A |
Start torque | 90.050 (NM) |
| Bearing | Ball bearing or oil-impregnated bearing |
Dimensions | 50*37.5 (mm) |
Payment terms | 30% advance, 70% balance |
Certificate | IATF 16949 2016 |
Customizated | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description
An average of two months to develop a new motor
Product Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||
OPERATING RANGE | NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
8-15 | 12 | 4244 | 0.10 | 3627 | 0.588 | 13.094 | 4.973 | 90.050 | 3.454 |
Product Size
Performance Curve
The above specifications are for reference only, the type and parameters of the specific brushed dc motor can be customized
Product Features
Good response speed, good braking effect, high control accuracy, relatively skilled technology, low processing cost, low speed, excellent torque performance, large torque, simple and convenient speed regulation, customized technical data (output shaft, speed, voltage).
Product Details
| 100% actual photos |
|
Rotor: pure copper wire wound, high-quality iron core, high temperature resistance, reduce energy loss, reduce current resistance | End cap: high-quality carbon brushes/electric brushes are used to increase the service life and have a higher matching degree | |
| 100% actual photos |
|
Bearing: choose brand bearing, quality is guaranteed (bearing can be customized) | Chassis: choose high-quality materials with high hardness, corrosion resistance, wear resistance and rust resistance, and have a longer service life |
Company Strength
Product Certificate
Some of our partners
We have been committed to the motor industry for many years, covering most of the European and American markets, and look forward to becoming your long-term partner in China.
Our Advantage
1. The 545SA brushed motor is made of high-quality raw materials, and the pure copper wire core is wound, which is durable, easy to wire and install, and not easy to break. Fashionable and beautiful, simple and elegant, good gloss.
2. Application: 12v motor is suitable for water pumps, air pumps, household appliances, hair dryers, massagers, vibrators, automotive products, automatic cruise control, etc.
3. Parameters: output power: 5-60W, rated voltage: 12V, voltage range: 8-15V, output shaft, speed, voltage, etc. can be customized according to customer needs.
4. Reply to your inquiry within 24 hours, can provide customized design for customers, our well-trained business will provide you with professional solutions, perfect after-sales service and technical support.
5. In the cooperation, it has the advantages of flexible operation, timely supply and in-place service, and provides perfect pre-sales and after-sales service and technical support. It is a rare long-term partner of the majority of manufacturers.
Application
Transport Packing
Shockproof foam packaging, suitable carton size.If you have special packing needs, please contact us in advance.
Buying Guides
Payment & Delivery
How do we start?
Our factory is committed to providing high quality micro motors to global buyers. Our goal is to increase customer satisfaction and experience by enabling customers to purchase products of high quality at reasonable prices.
Are our products high quality?
We have a professional development and quality inspection team to ensure that all products in the warehouse are of qualified quality. Patient and professional staff can solve all kinds of sales problems.
The production team has more than 500 workers, with a high degree of automation and an annual production capacity of 60 million units. We also have a professional R&D team, customer-oriented, quality as the core, technology as the driving force, to provide customers with flexible and professional services to achieve mutual benefit and win-win results.
