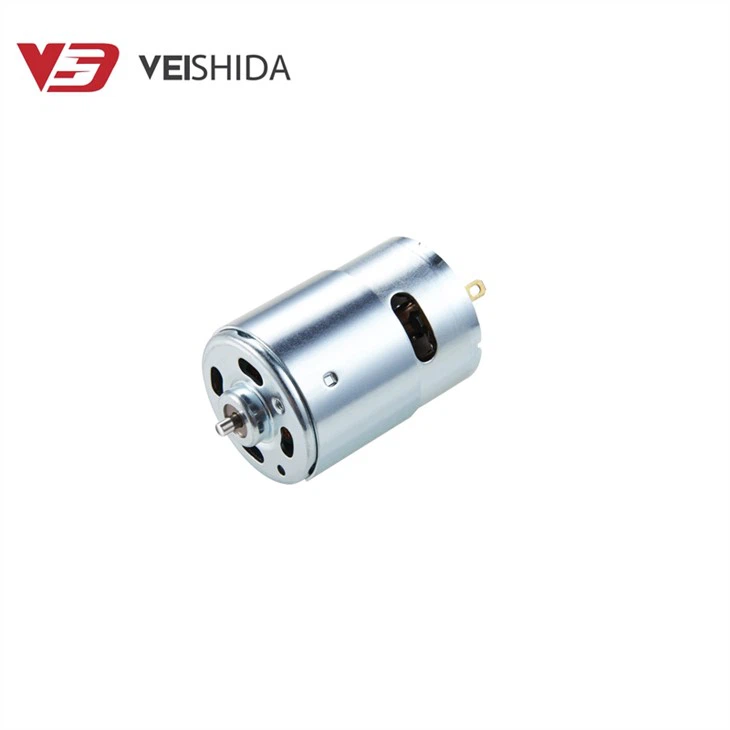

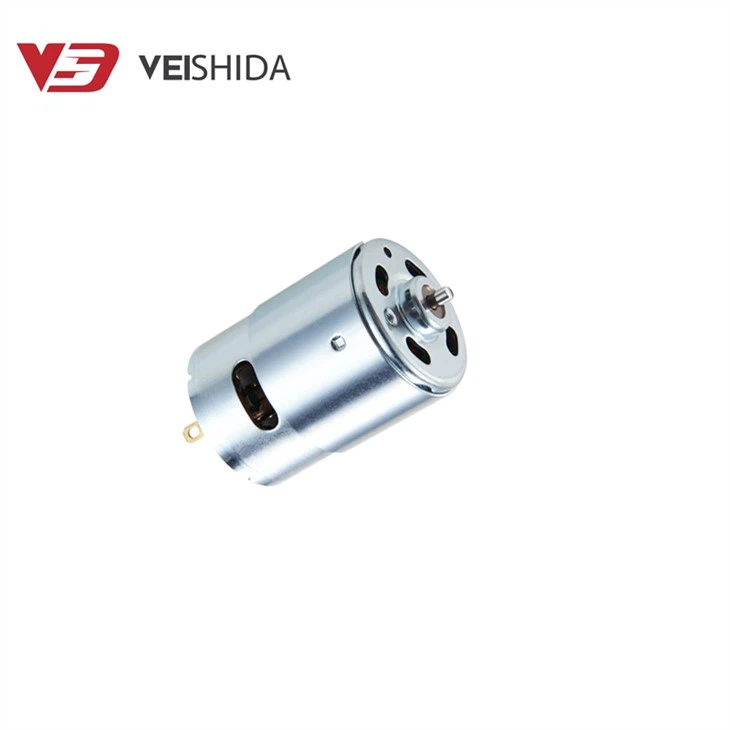

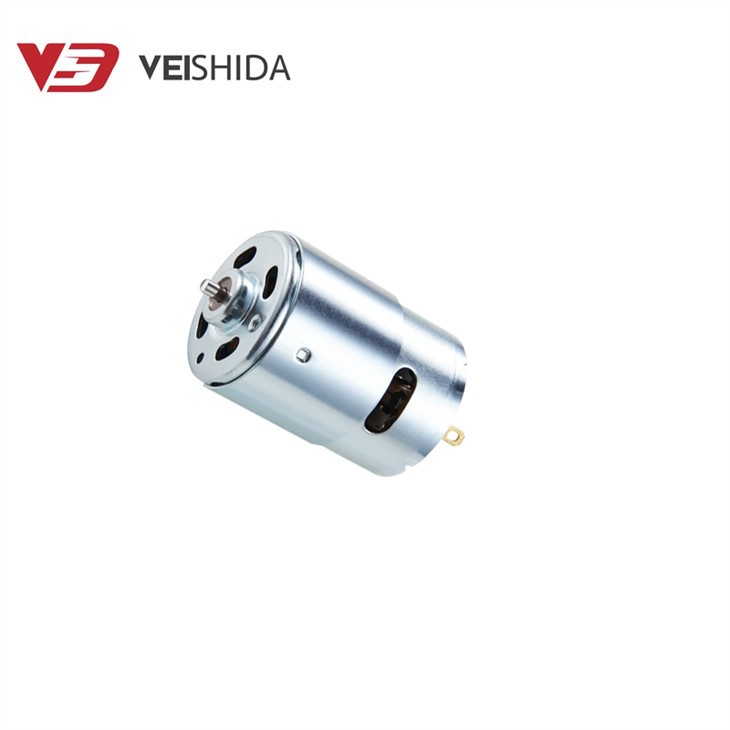

540 12V Electric DC Motor
diameter: 37.5mm;
Length: 50mm;
Axial clearance: 0.05-0.5mm
540 12V electric dc motor are widely used in medical, beauty, maternal and child health care, smart home, vehicle, office, model aircraft, toys and models, robots and other fields. We have many years of experience in micro-motor production and research and development, escort your products, and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3 months - 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VRK-540SH |
Usage | Household appliances, remote control models, toys, air pumps, water pumps, automobiles, office automation equipment, wireless control models, medical equipment, car massage seats, etc. |
Type | Brushed dc motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brush |
Protect Feature | Customized |
| Voltage range | 8-26 V |
No-load speed | 3500r/min |
No-load current | 0.11 A |
Max power speed | 2899 r/min |
Max power current | 0.531 A |
Max power torque | 13.029 mN.m |
Max power | 3.955 W |
Starting torque | 75.88 mN.m |
Starting current | 2.56 A |
Rated Voltage | 12 V |
Dimensions | 50*37.5 (mm) |
Payment terms | 30% advance, 70% balance |
Certificate | TS16949 |
Customizated | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description
An average of two months to develop a new motor
Product Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||
OPPERATING RANGE | NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
8-15 | 12 | 3500 | 0.110 | 2899 | 0.531 | 13.029 | 3.955 | 75.880 | 2.560 |
22-26 | 24 | 3752 | 0.058 | 3336 | 0.465 | 10.261 | 3.584 | 92.454 | 3.721 |
Product Size
Customized items: output shaft, speed, voltage
If you need matching drives, encoders, and gearboxes, please contact us! ! !

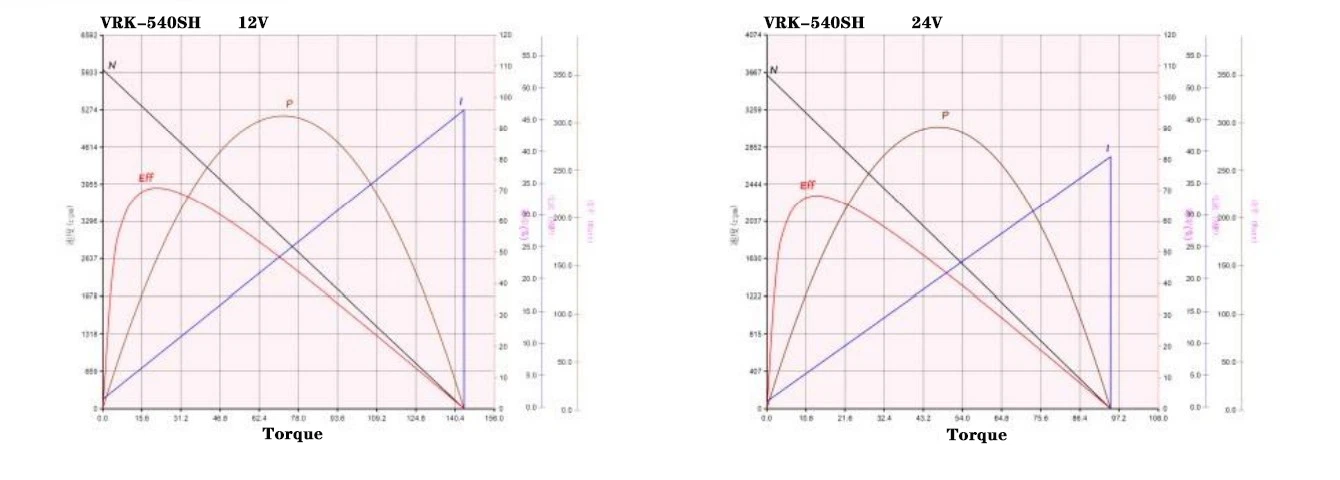

Performance Curve
The above specifications are for reference only, the type and parameters of the specific brush dc motor can be customized
Product Features
Stable performance, stable speed change, large transmission torque, high efficiency, low temperature rise, low noise, large torque, long service life, mini size, cheap price, customized technical parameters
Product Details
| 100% actual photos |
|
Rotor: Winding with pure copper wire, high-quality iron core, reducing energy loss and current resistance | End cap: Use high-quality carbon brushes/electric brushes to increase service life and better match | |
| 100% actual photos |
|
Bearings: choose brand bearings to reduce motor noise and ensure quality (bearings can be customized) | Chassis: selected high-quality materials with high hardness, high temperature resistance, corrosion resistance, wear resistance and rust resistance, with a longer service life |
Company Strength
Why Choose Us
1. We achieve 95% self-sufficiency, control the quality of accessories, and reduce production costs;
2. We have our own R&D team to recommend or customize the motor suitable for you;
3. Perfect quality process to ensure product quality and greatly reduce the loss caused by parts failure
4. Food-grade production in the production workshop to meet your hygienic needs for products;
5. We have a number of international certifications and patent certificates to make your products safer.
Product Certificate
Some of our partners
We have been committed to the motor industry for many years, covering most of the European and American markets, and look forward to becoming your long-term partner in China.
Application
Transport Packing
Shockproof foam packaging, suitable carton size.If you have special packing needs, please contact us in advance.
Buying Guides
Payment & Delivery
Customizable items
1. Precious metal brush/carbon brush
2. Lead wire, terminal
3. Adjust the voltage and speed by changing the winding
4. Modify the shaft length
5. Modify the shaft configuration (knurling, gears on the shaft)
6. Assemble gears, vibrators, pulleys, etc.
7. Ball or oil bearing available.
8. Color zinc chassis, salt spray test
Other Customized 37.5mm Low Speed Micro DC Motors
1) Plastic end cap or metal end cap
2) Specifications can be customized
3) Rotation direction: CW or CCW
4) Flux ring thickness can be customized.
5) Motor connectors are available.
