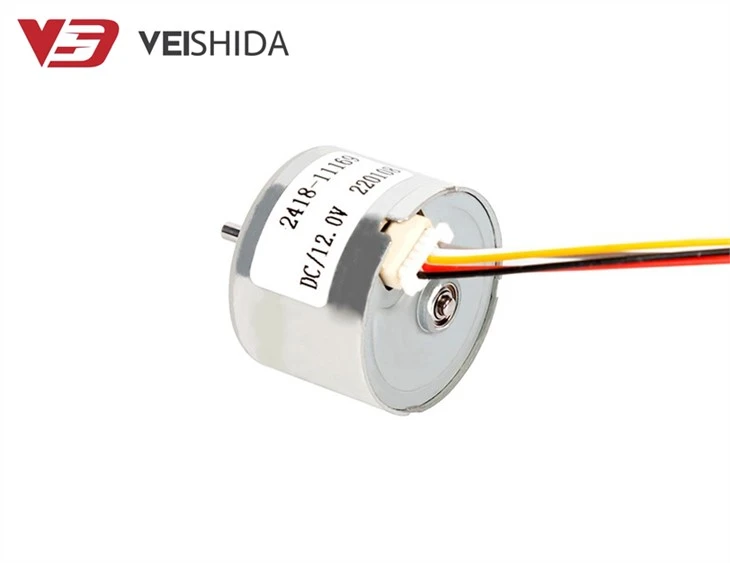

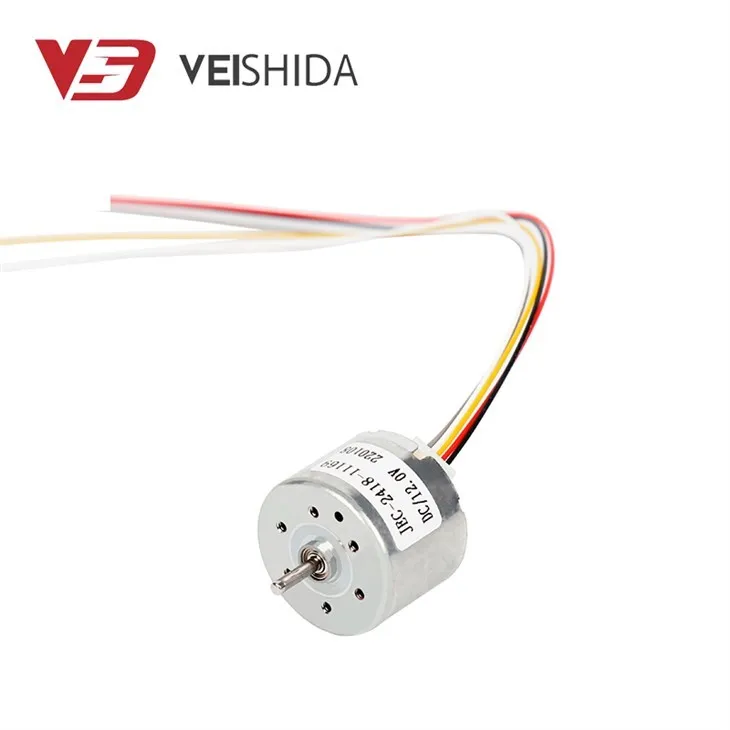

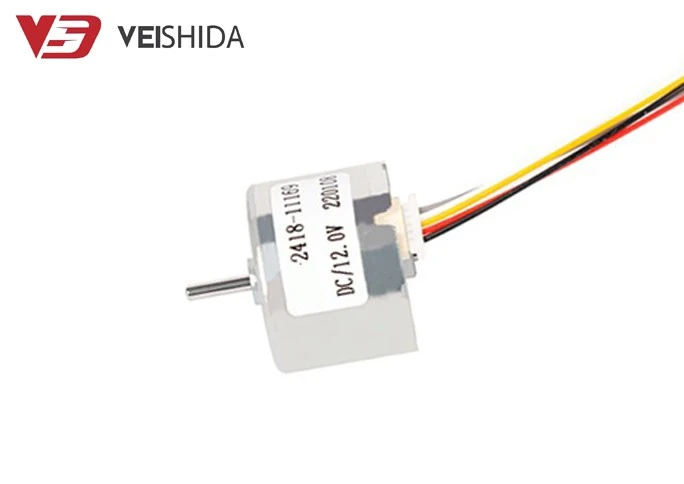

12V 24V 2418 Micro Brushless DC Motor

The 12V 24V 2418 Micro Brushless DC Motor is cylindrical with a 2mm diameter shaft and 2 terminals. Shaft length: 21mm. Motor diameter: 24mm. Motor length: 18mm. Motor fixing hole: 6*M2, input voltage: DC12V, 5000rpm; DC 24V, 9000rpm. Motor rotation direction: CW or CCW; reverse rotation is supported. Bearing type: sleeve, motor life: 10000 hours (normal use). The speed of the motor can be adjusted with a speed controller. It has the characteristics of high torque, low noise, long life, stable performance and high efficiency; widely used in household appliances, electric tools, electric drills, hair care, electric hammers, office equipment, cordless electric screwdrivers, etc.; speed, voltage, power, leads, etc. Can be customized according to customer needs.

Company Highlights

Overview

Warranty	3months-1year
Place of Origin	Shenzhen, China
Brand Name	Vshida
Model	VBL-3650DI
Usage	Household appliances, power tools, electric drills, hair care, electric hammers, office equipment, pumps, valves, currency counters, fans, cordless electric screwdrivers, etc.
Type	BLDC Motor
Weight	TBD (different ratio different weight)
Components	Diversifed
Construction	Permanent Magnet
Commutation	Brushless
Protect Feature	Customized
Efficiency	83%
Rated Voltage	12V
No Load Speed	9000±10%
Load Speed	5000±10%
No Load Current	0.102 A
Starting Torque	9.925 mN.m
Product Name	Micro  Brushless DC Motor
Power	1-6 W
Direction of rotation	CW&CCW
Payment terms	30% advance, 70% balance
Critificate	IATF16949
Customized	Acceped

Product Description

Independent R&D group providing OEM and ODM services to meet your customized requirements.

Product Parameter

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
OPERATING RANGE	NOMINAL V	SPEED r/min	CURRENT A	SPEED r/min	CURRENT A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	CURRENT A
8~16	12	5347	0.185	3853	0.219	2.77	1.119	9.925	0.566
18~26	24	8721	0.102	6454	0.290	4.77	3.230	18.385	0.827

Motor Outline

Motor Performance Curve

The information above is provided for reference purposes only; the types and features of certain models of micro brushless DC motors may vary.

Customized items:

Output shaft, speed, voltage, leads, lead terminals, mounting holes

Please get in touch with us if you require any other customized goods; we promise to respond to your message within 24 hours.

Product Details

	100% actual photos
Rotor: composed of high-quality iron core with excellent temperature resistance and pure copper wire twisted around it. Additionally, it has a lower current resistance and requires less energy.		Bearings: The motor bearing adopts CNC machining, which increases the friction, makes the transmission more stable, and the connection and fixing are more convenient
	100% actual photos
End cap: Using high-quality raw materials, fixed electronic rotor, with heat dissipation, higher matching degree and longer service life.		Chassis: High-quality materials that are high in hardness, high in temperature resistance, low in corrosion, low in wear, and low in rust resistance

Motor Description

1. Brushless DC motor with built-in driver (built-in controller with Hall effect sensor), PWM pulse width speed regulation range, clockwise/counterclockwise rotation, FG speed feedback signal, low EMC, low noise, long life, etc.;

2. Durable, compared with brushed motors, there is no need to replace the brushes regularly. Maintenance-free, with an average service life of more than 15,000 hours; compared with AC motors, this motor does not require a starting capacitor. There will be no deceleration due to capacitor failure.

3. Strong productivity, automated production process, more than 50 production lines, daily output of more than 200,000 motors, to meet customers' large quantities of orders;

4. This 12V 24V 2418 Micro Brushless DC Motor has built-in light sensor, single-chip microcomputer, integrated motor driver IC, and built-in encoder.

5. To provide consumers with professional services, OEM/ODM services, high quality assurance, free product replacement for quality errors, and an experienced customer service team to solve problems online 24 hours a day.

Company Strength

Every day, 200,000 motors are produced by the Vshida Micro Motor Company using more than 40 production lines, more than 500 workers, and high levels of automation. In order to provide customers with flexible, professional services that are exactly tailored to their needs in order to create win-win outcomes, we also have a strong business team that focuses on quality, client expectations, and technology.



All of the motors in our production have been put through a number of rigorous tests, including a reliability lab test, a noise test, a waterproof test, a life test, a crash test, a storage test, a salt spray test, etc.

Product Certificate

So far, it has passed a number of international certifications and patent certifications to meet customers' needs for various certificates.

Some of our partners

We are excited to become your long-term partner in China. We have been dedicated to the micro motor sector for many years, serving the majority of the European and American markets.

Application

Micro motors offer a very broad range of applications and can be customized for many use cases. Contact us if you have any special requirements.

Transport Packing

Packaging & Delivery

Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.

Port: Shenzhen / HongKong

Shockproof foam packaging, the right carton size. If you require specific packing services, kindly contact us in advance.



Payment & Delivery



12V 24V 2418 Micro Brushless DC Motor Application

Industrial equipment: water, electricity, air valves, air switches, water pumps, air pumps, electric drills.
Hair care: hair dryer, electric hair clipper, massager.
Household appliances: air fresheners, smart vacuum cleaners, soap dispensers, dryers.
Commercial equipment: vending machines, parking locks, ATM machines, mahjong machines, credit card machines.
Office equipment: printers, projectors, counting machines, paper shredders.



Motor wiring method introduction
Black wire: Connect to the negative pole of the DC power supply - (errors are prohibited)

Red line: connect to DC power supply positive + (wrong connection is prohibited)

Yellow line: signal line, the motor outputs 18 pulse signals in one revolution

White line: duty cycle, pulse width speed regulation 15-25khz

Orange wire: It is the wire that controls the motor to rotate clockwise or counterclockwise. Connect the orange wire to the black wire and the motor will instantly change direction of rotation. (Overcurrent protection 0.8A, once the current is exceeded, the motor will stop working immediately, and the motor can restart after the power is turned on again.)

Please contact us so that we may provide compatible gearboxes, drives, and encoders. We'll respond to your message within the next 24 hours.
