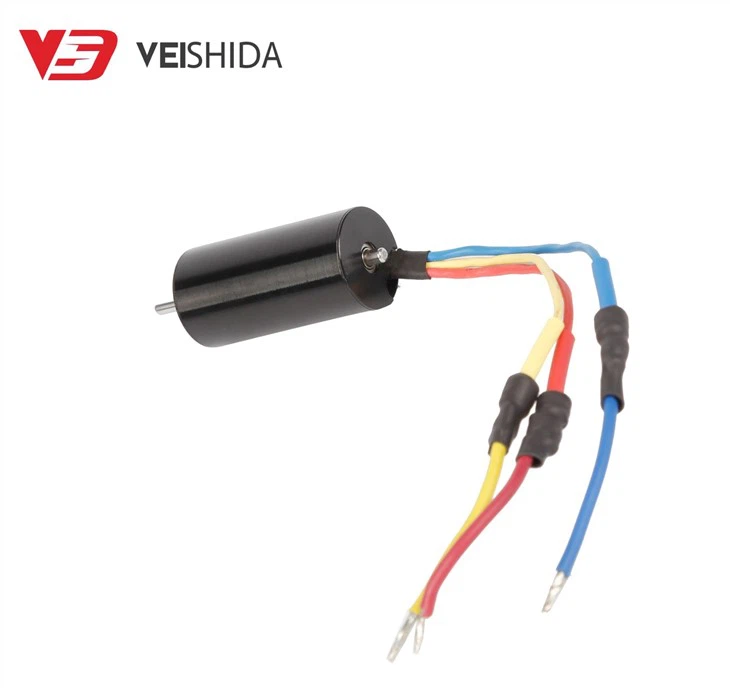

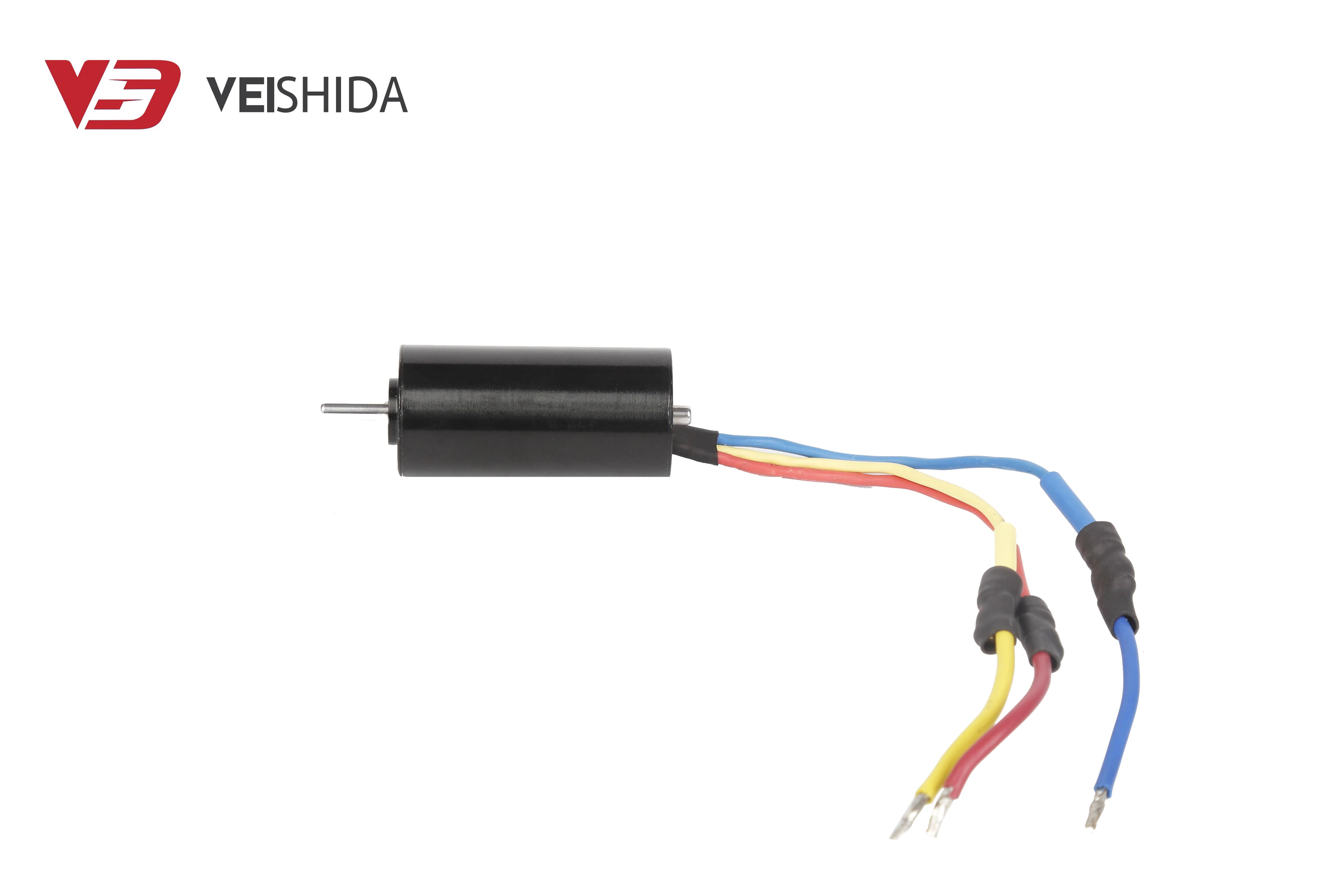

22mm Brushless DC Motor
Outer diameter: 22mm,
length: 47mm;
built-in drive, can work when power is on.
Widely used in medical, beauty, maternal and child health care, smart home, drones, vehicle, office, model aircraft, toy models, power tools, robots and other fields. We have 15 years of experience in micro-motor production and development, providing customers with flexible and professional customized services.
Description
22mm brushless DC motor has the characteristics of low noise, long life, stable performance, wide speed regulation range, high efficiency, large starting torque and small starting current. Built-in drive, can work after power on; forward and reverse rotation and brake control; PWM speed regulation and FG signal feedback; can be equipped with planetary gearbox, driver, encoder and other supporting facilities, voltage range ≤ 36V, can be customized according to customer needs, Automated production lines fulfill your lead orders.
Company Highlights
Overview
Warranty | 3months-1year |
Place of Origin | Shenzhen, China |
Brand Name | Vshida |
Model Number | VBL-3540 |
Usage | robots, electric seats, General, Industrial, Home Appliances, Automotive, Power Tools, Engraving Machines, etc. |
Type | BLDC Motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brushless |
Protect Feature | Customized（Fireproof, watertight, completely enclosed） |
Efficiency | 86% |
| Product Name | Micro Brushless dc motor |
Rated Voltage | DC 12 V |
| Direction of rotation | CCW CW |
| Voltage range | ≤36 V |
Payment terms | 30% advance, 70% balance |
Dimensions | 22*47（mm） |
| Critificate | RoHS |
Customized | Acceped |
Product Description
If customers have any further requirements, please contact us. We respond to your inquiries online every day. Any technical characteristics can be changed in order to meet the needs of the customer.
Motor Parameter

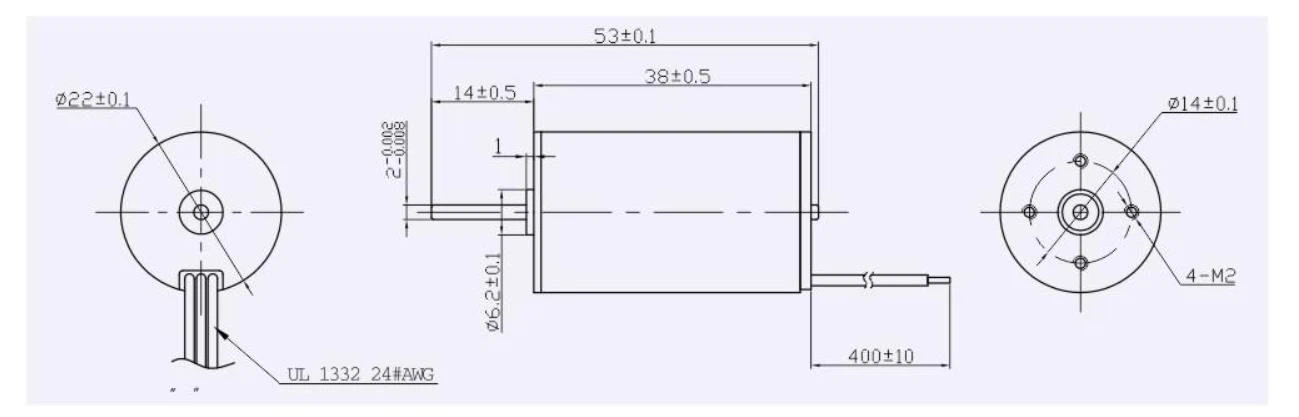

Product Outline
Motor Performance Curve
Product Details
| 100% actual photos |
|
Rotor: comprised of a high-quality iron core with exceptional temperature resistance wrapped around a pure copper wire. Additionally, it has a lower current resistance and requires less energy. | Bearings: Use branded bearings to assure quality and reduce motor noise (bearings can be customized) | |
| 100% actual photos |
|
End cap:Use premium raw materials to increase lifespan, repair the motor's rotor, and enhance heat dissipation. | Chassis:Using high-quality materials with high hardness, high temperature resistance, corrosion resistance, wear resistance, and rust resistance increases the service life. |
Detailed description of the motor
1. The 22mm Brushless DC Motor has excellent craftsmanship, cutting-edge technology, precise specifications, tiny tolerances, high fit, and stable performance.
2. Production of motor components with high precision, energy efficiency, and quietness, as well as modern manufacturing technologies to assure reliable performance
3. Quality control, more than 50 precise production lines, for simple bulk shipments, to fulfill your bulk orders, and to offer you the most competitive pricing.
4. The complete and comprehensive motor specifications are provided. In order to satisfy the clients' individualized needs, it merges production, R&D, and sales.
5. This 2247 DC brushless motor contains a built-in optical sensor, a single-chip microcontroller, an integrated motor driver IC, and its own encoder.
Company Strength
With our independent R&D team, mature process design, and 15 years of motor R&D and manufacturing experience, choosing to work with us is choosing to work with a well-thought-out, high-quality manufacturer.
Why Choose Us?
Product Certificate
Some of our partners
Application
We are pleased to work with you in China as a long-term partner. We have dedicated a lot of work to developing brushless dc motors, serving the majority of the European and American markets, all in an effort to give clients the best motors and services possible.
Transport Packing
Supply Capacity: More than 200000 DC motors with per Day
Inner packaging of foam box: 350*265*280mm
Carton outer packaging: 365*275*320mm
Weight 16.7kg/350pcs
Payment & Delivery
Notice
22mm Brushless DC Motor that operates at its peak efficiency in the conventional RPM range, allowing for customized planetary gearbox integration. Low power consumption, peak performance at low rpm, and high torque in a small form factor all contribute to quiet operation.
Peak performance for conventional BLDC motors occurs at very high RPMs. These speeds are too high for the gearbox to function properly, and even regular BLDC motors frequently experience noise and heat problems when coupled with a high-speed custom gearbox, making it unsuitable for high-end applications.
A unique planetary gearbox is expertly incorporated with the Vshida micromotor. combined into a tiny BLDC motor that generates robust, noise-free operation and great torque at low RPM!
