small bldc motor

Using advanced technology and high-quality materials, VSD's small bldc motor series offers a wide range of torques, voltages and sizes to meet a wide range of application needs. From drones and small robots to service robots and small actuators, our motors stand out for their lightweight design, higher torque output and greater power. With their superior performance and dual ball bearing design, VSD small BLDC motors excel when dealing with external disturbances such as high temperature, pressure and vibration, ensuring a longer service life and a lower failure rate.



VSD's small bldc motor is a hot product recommendation

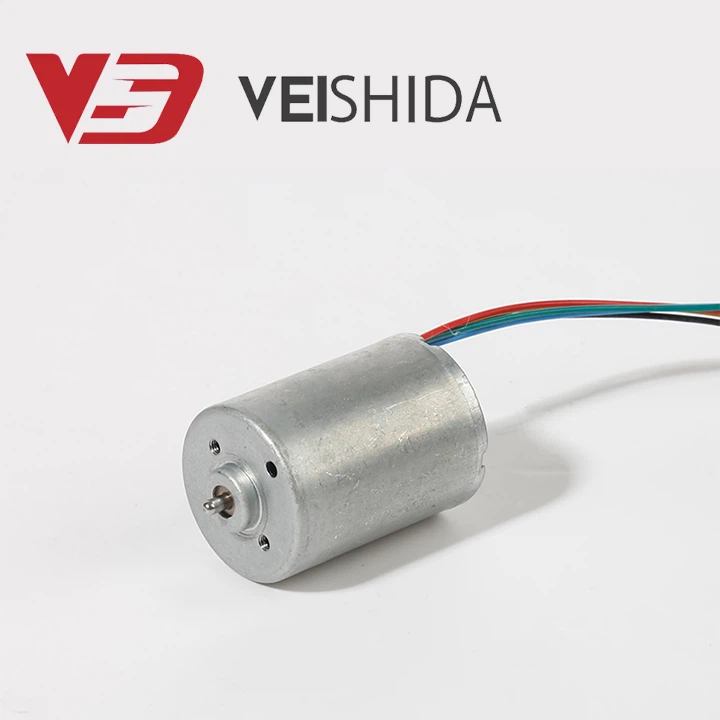

Product 1:

Model number:	VBL-2838
Typical applications:	Hair clippers, cordless drills
Main hot spot:	High speed, mini , Double ball bearings
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
8~16	12	3044	0.096	2294	0.293	7.59	1.825	30.81	0.897
18~26	24	6133	0.132	4879	0.513	13.36	6.826	65.32	1.997



Brushless motor design:



Motor performance：



Product 2:

Model number:	VBL-1725
Typical applications:	micro pumps, surgical instruments
Main hot spot:	High speed, Double ball bearings, lightweight
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
3.5~7	5	6147	0.064	4502	0.174	0.78	0.369	2.92	0.476
3.5~7	6	12741	0.102	10149	0.399	1.317	1.400	6.47	1.563



Brushless motor design:



Motor performance：



Product 3:

Model number:	VBL-3050
Typical applications:	rehabilitation robots, small robots
Main hot spot:	lightweight, longer life, higher efficiency
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
8~16	12	3800	0.119	3054	0.488	10.44	3.342	53.25	1.997
18~26	24	5486	0.108	4482	0.482	5.19	2.438	28.38	2.154



Brushless motor design:



Motor performance：



Product 4:

Model number:	VBL-3626
Typical applications:	small actuators, service robots
Main hot spot:	high cost performance, higher efficiency, lightweight
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
8~16	12	7014	0.258	5525	0.957	11.31	6.543	53.26	3.550
18~26	24	4338	0.098	3276	0.302	9.67	3.318	39.50	0.933



Brushless motor design:



Motor performance：



Product 5:

Model number:	VBL-3657
Typical applications:	micro water pumps, swimming pools, automobiles
Main hot spot:	low noise, direct drive,  mini, higher efficiency
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
8~16	12	5067	0.172	4324	1.002	17.987	8.145	122.734	5.833
18~26	24	8648	0.146	7491	0.944	20.401	16.003	152.414	6.111



Brushless motor design:



Motor performance：



Product 6:

Model number:	VBL-6570
Typical applications:	Water pump, air pump, mixer, centrifuge
Main hot spot:	high cost performance,High speed,Double ball bearings
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
20~26	24	1055	0.200	870	0.940	167.573	15.266	955.343	4.420



Brushless motor design:



Motor performance：



Why choose VSD's small bldc motor (take VBL-2838 as an example)



Multiple specifications with high performance

VSD's line of small brushless motors offers a wide range of torques and voltages (6V, 12V, 24V) to meet the needs of everything from precision tools to industrial equipment. The motor can reach 7,000 RPM at maximum efficiency, with an efficiency of 85 to 90 percent. Compared to other products on the market, VSD's small brushless motor is lighter, more powerful and has a higher torque output, fully demonstrating the advantages of a high-performance design.



Longer life and high reliability

The VSD motor is designed with double ball bearings, which reduces mechanical friction, greatly extends service life, and makes installation easier. This design not only reduces the need for maintenance, but also significantly improves the reliability of the motor. High-quality materials and cutting-edge technology are used inside to ensure that the motor can operate properly in complex environments and resist interference from external factors such as temperature, pressure and vibration.



Low cost and high cost performance

Despite the advanced performance and design of VSD's small brushless motors, their manufacturing costs are well controlled, making them a competitive choice in the market. Especially in the field of customized services, VSD is able to provide professional customized solutions according to the special needs of customers, covering the integrated support of drive systems, mechanical transmission and other aspects, to ensure that customers can get the best application results at a lower cost.



Industry-leading technical support

VSD's small brushless motors not only feature standard integrated and built-in drives, but also support mechanical drivetrains to meet diverse application needs. The company provides a full range of customized services to adjust the voltage, torque and design to the specific requirements, ensuring that each motor is precisely matched to the customer's project needs.



Low failure rate and environmental performance

With its efficient electronic commutation system and brushless design, VSD's small brushless motors avoid the failure problems caused by brush wear in traditional motors, reducing downtime and maintenance costs. At the same time, its efficient operation also means lower energy consumption, in line with modern environmental standards, is an economical and environmentally friendly choice for long-term use.



small bldc motor application field



Because of its high efficiency, compact, low maintenance and precise control characteristics, small bldc motor is widely used in many fields, from consumer electronic equipment to industrial applications, and its application field covers almost all kinds of light and precision mechanical equipment.



Consumer electronics: In the field of consumer electronics, small bldc motor has become the core power source of many devices. For example, in hair trimmers, VSD's VBL-2838 series motors are ideal due to their compact design, high efficiency and low noise performance.



Robots: With the rapid development of the intelligent robot industry, small brushless motors have become one of the core components of service robots and small robots. Robots usually require motors with lightweight design, high efficiency and low noise to ensure stable and accurate power output during long periods of operation. VSD's brushless motors are widely used in home service robots, automatic cleaning equipment and educational robots to provide smooth and reliable power support.



Tools and electric equipment: Small brushless motors are also widely used in power tools, such as cordless drills, grinding tools and cutting equipment. These tools rely on high torque output and low maintenance characteristics to make the operation more efficient and long-lasting. The high torque design of VSD's brushless motors is particularly suited to the needs of these tools, ensuring that users can still achieve excellent performance under high-intensity operating conditions.



Medical equipment: The precision, reliability and safety of electric motors are highly required in the medical field. Small brushless motors are widely used in miniature pumps, ventilators, surgical equipment and other precision medical instruments. With their long life and low failure rate, VSD brushless motors meet the demanding requirements for continuous and stable operation of medical equipment.



In addition to the above fields, they are also widely used in household appliances, car seat adjustment, electric curtains, precision instruments and other fields.



Contact us for a quote

If you are looking for a high-performance small bldc motor, VSD, as a leading manufacturer and supplier in China, will provide you with the best quality products and services. Our wide range of small BLDC motors is suitable for a variety of application scenarios such as drones, service robots, and power tools.



Whether you have any needs for specific products, or want to know about customized services, please feel free to contact us. Please fill in your contact information and requirements for detailed product quotes, price lists and more technical support. We promise to respond to your request for a quote within as soon as 2 hours, ensuring that you get a quality small bldc motor solution as early as possible.
