Mini Gear Encoder Reducer Motor

Mini Gear Encoder Reducer Motor The rated speed is 6-600 rpm, the rear is equipped with a dual-channel Hall-effect encoder, dual AB output, single channel 12PPR per pulse period, two channels per channel, total output 48CPR, phase difference 90 degrees, dual channel Hall-effect encoders are used to detect the rotation of the disk in the rear bump of the motor shaft. Rated voltage DC 12V, suitable for projects such as robots, RC car models, custom servos, 3D printers, DIY motor toys, etc. High-quality metal material, small size, large torque; excellent thermal conductivity, high hardness and anti-friction, low noise; high-quality engine, long life; new Hall encoder has a dust cover, durable and not easy to wear and other characteristics, can be customized

Company Highlights

Overview

Product Description

A month to develop a variety of new motors

Motor Parameter

Product Size

Customized Item

Lead wire, connector, mounting hole, output shaft, power，voltage and speed，etc.

Please get in touch with us if you need to match the driver, encoder, or gear box.

Performance Curve

The aforementioned details are just offered as a general guide; a given gear motor's kind and specifications are flexible.

Product Details

Product Features

1. Product type: Dual-channel Hall-effect encoder DC gear motor Rated voltage: 12V No-load speed: 600rpm. No-load current: ≤0.15A Rated torque: 0.6lbs

2. Single output 120 pulses per revolution: gear reduction ratio: 1/10, each loop output pulse: 12PPR 10 x 12 = 120PPR;

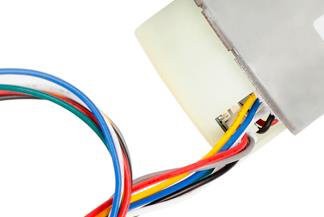

3. Wiring diagram: red - motor power terminal (+); black - motor power terminal (-); green - four-channel encoder grounding - blue - encoder + 5V VCC; yellow - four-channel encoder signal A; White - Signal B.

4. Application: suitable for robots, RC car models, custom servos, 3D printers, DIY motor toys, smart balance car models, remote control car models, smart home appliances robots, camera swings, treadmills; electric toothbrushes, medical equipment, laboratory equipment Wait

5. Advantages of Mini Gear Encoder Reducer Motor: high-quality metal material, small size, large torque; excellent thermal conductivity, high hardness and anti-friction, extremely small sound; high-quality engine, lifespan up to about 1000 hours; new Hall The encoder has a dust cover, which is durable and not easy to wear.

6. Independent R&D team, which can be customized according to customer needs, provide OEM ODM services, automated production lines, and meet customers' large-scale orders.

Company Strength

We have more than 500 highly skilled workers generating more than 200,000 motors each day on contemporary automated production lines. We have established quality control procedures and more than 300 high-end machines of various types to further verify that the motors comply with CE, REACH, and RoHS requirements.

Product Certificate

Some of our partners

We are thrilled to work alongside you as a trusted partner in China. For many years, we have made it our objective to provide high torque gear motor to the bulk of the European and American markets.

Why choose us

Application

Micro motors offer a very broad range of applications and can be customized for many use cases. Contact us if you have any special requirements.

Transport Packing

The 2430 Brushless DC worm gear motor is packed in shockproof foam, suitable carton size. If you require specific packaging services, please contact us in advance.

Payment & Delivery

Why does the mini gear encoder reducer motor spark?

1. If the shaft position is not suitable, it will produce large friction, which will lead to production sparks, so if the shaft of the geared motor is not correct, it can be adjusted to the appropriate position;

2. Incorrect voltage, poor contact between carbon brushes and commutators, electrical wear, and incorrect specifications of electrical accessories will also cause a sharp increase in friction, resulting in the generation of sparks;

3. The surface of the commutator is rough, the friction with the brush increases, and a large number of electric sparks are generated;

4. The continuous use time is too long, and the electric spark generated by the high-load operation of the geared motor;

5. Damaged windings or unbalanced rotors will also produce sparks.

We are a professional motor manufacturer, and we can customize the design according to customer needs. If you need other accessories, please contact us and respond to your inquiries online 24 hours a day.
