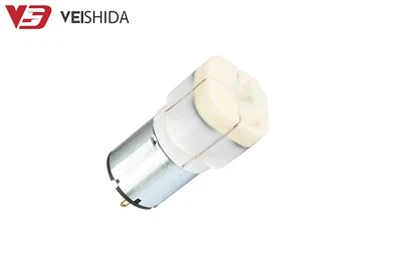

60mm DC 12V Large Flow Small Air Pump

New original VAP-3601 60mm DC 12V Large Flow Small Air Pump for separator removal screen Machine Air Pump Microair. A new type of silent rated voltage DC 12V vacuum pump, air pump.auto-start.air pump. Widely used in massager, hospital machinery and other fields. Vacuum pump, dual-use booster pump. The shell is made of high quality ABS material, with good corrosion resistance and heat resistance, and can operate stably in various environments. The pump body and the diaphragm are made of high quality polyester material, with very good mechanical strength and thermal stability, which can ensure the long-term stability and life of the pump.

Motor and power components are also good materials that ensure the high efficiency and low noise of the air pump. Its motor control precision is high, low power consumption, can ensure the efficient and lasting operation of the gas pump. The power supply components of the air pump adopt high-quality electric control components, which have excellent stability and protection function, and will not cause interference and damage to the power grid in the process of using it. All the connecting parts and seals also use high quality materials to ensure the safety and reliability of the air pump. The connection and sealing technology used in the gas pump can avoid gas leakage and other adverse effects, and ensure the reliability and stability of the gas pump in various environments.

Product Description

Rated Voltage	Rated Current	Max Pressure	Air Flow	Inflation Time	Leakage	Noise Withload	Life Test
DC 6.0V	≤2000mA	≥450mmHg	≥13LPM	≤5S(1500cc)	≤15mmHg/min	≤63dB	≥400H
DC 12.0V	≤1000mA	≥450mmHg	≥13LPM	≤5S(1500cc)	≤15mmHg/min	≤63dB	≥400H
DC 24.0V	≤600mA	≥450mmHg	≥13LPM	≤5S(1500cc)	≤15mmHg/min	≤63dB	≥400H

The working principle is to achieve the process of gas inhalation, compression and discharge through the changing volume in the pump chamber. Specifically, the 3601 micro diaphragm air pump can absorb the external gas inlet of the pump, then compress the gas through the diaphragm compression chamber, and finally discharge the compressed gas from the outlet. In this process, the diaphragm of the air pump divides the gas into two chambers, and the front and back two chambers are isolated, so that the gas in the pump will not pollute the external environment, and will not be polluted.

1. According to the working principle:
It is divided into mechanical gas pump, electric air pump and compressed air pump. Mechanical air pump is usually by hand, foot or other mechanical force transfer to produce air pressure, electric air pump is by power to produce air pressure, compressed air pump is by compressed machinery to compress the gas to produce air pressure.
2. According to the use:
Classified into air pump, vacuum pump, fluid pump, liquid pump, gas / liquid pump and other types. Different types of micro-air pumps are suitable for different industries and occasions, such as medical devices, laboratories, environmental protection equipment, etc. This 60mm DC 12V Large Flow Small Air Pump belongs to a vacuum air pump.
3. According to the structure:
It is divided into diaphragm air pump, diaphragm pump, plunger pump, rotary pump, axial plunger pump and other types. Different structures of the micro air pump has different advantages and disadvantages, the selection needs to be selected according to the specific needs.

Operating voltage: 12 VDC

Inflation Time:<6 seconds (from 0 to 300 mmHg in a 1000CC closed container)

Minimum pressure:>400 mmHg (53.33KPa)

Maximum pressure: 750.062mmHg (100KPa)

Hermeticity:<5mmHg (from 1000mmHg in 1000CC container min), airtight only for inflation

Use fluid: Gas (emergency can also be used as a pump!)

Outlet size: Use pagoda structure, the minimum 6mm, the maximum 8mm, mouth length 12mm

Inlet nozzle size: Around the structure, diameter 6.5mm, mouth length 10mm

Can be used with our silicone tube 5*8mm or PU tube 5*8mm (use an internal diameter of 6mm can also be)

Company Profile

Weishida Is a professional motor supplier. As a professional, high quality, modern, reliable small DC motors, micro diaphragm air pumps, vacuum pumps, liquid pumps, water pumps, solenoid valve manufacturers. Our products are widely used in medical electronics, health care equipment, beauty equipment, household appliances and other fields. Oxygen machine, such as sphygmomanometer, message chair, foot nursing chair, coffee machine, breast absorber, vacuum cleaner, etc. Our factory has passed the quality system of ISO9001:2008 and ISO14001:2004. A talented in-house design team that publishes original designs. Rich experience in sales manager and staff. Have rich manufacturing experience, advanced equipment, exquisite technology, efficient management. Working with us, you can reduce the cost of your products as we are factory direct, economies of scale.

The DC mini motor that Weishida manufactures can be used in many applications, including but not limited to:

water gasification and degassing

food preservation

medical devices

water treatment devices

Intelligent water-burning electric tea stove

electric wine opener

Smart electric breast pump

Home semi-automatic espresso machine

Automatic induction foam mobile phone washer

Electric Rechargeable Blackhead Pimple Extractor

Electric Vacuum Sealer Machine

Instant hot water purifier

1. Best price
As a direct manufacturer and supplier, our products are delivered directly to your hands. Direct purchase of raw materials and equipment, but also can hire their own employees to produce, to carry out their own quality monitoring. Due to sufficient line setting rate, it will generally be produced in large quantities, and more advanced technology and more efficient production line can be adopted, while higher quantity discounts can be obtained.
2. Optimized delivery process
We have an optimized program to shorten the time to receiving order confirmation from payment, sales order printing and delivery. In addition, our strong supply chain management also promotes the transportation process.
3. Quality of competition
Our products are not only unique in design, but also use durable materials. In addition, we have also established a very strict, comprehensive quality control system. Products will be delivered through IQC (QQC), IPQC (PQC) and OQC (External Quality Control) procedures prior to shipment. We also implemented a quality CLCA (closed-loop corrective action) mechanism to feedback the quality status and drive continued quality improvement.
4. Advanced service
As an external service team that has been in the motor B2B industry. We offer service access such as elaborate FAQ, tracking services, live chat, mail, web information etc. In addition, the telephone service is also provided for the VIP customers. Emails and messages will be answered within 24 hours.

1. The automatic production line can operate continuously and efficiently, and the shorter production cycle makes the production process faster. Robots operate much faster than humans, greatly shortening the production cycle and improving quality and yield., To respond to the changes in customer needs, to meet the market demand.
2. Effectively reduce labor-related costs, such as staff training and management costs. More importantly, automated production lines can reduce personnel errors and reduce waste production, thus reducing production costs.
3. By improving product consistency and reducing personnel errors, fully applying the robot precision control and measurement system to ensure the production of high-quality products, reduce the failure rate and the probability of quality problems. High-quality products can win customer trust for the company and increase the company's reputation and customer retention rate.
4. When customer needs change, the automated production line can be quickly adjusted quickly to meet customer needs. Improved flexibility in daily production processes.

Shipping by sea, air and Express like DHL, UPS, Fedex.

Shopping security：

Safe Payment Options

Secure privacy

Secure logistics

Purchase protection

Do you have any instructions for this 60mm DC 12V Large Flow Small Air Pump?

2 types of tubes can be used in the trachea or water pipe. Silicone tube is soft, suitable for the tube; PU tube is hard, suitable for the trachea. Combined with the actual use of individuals.(Not included tube.)
