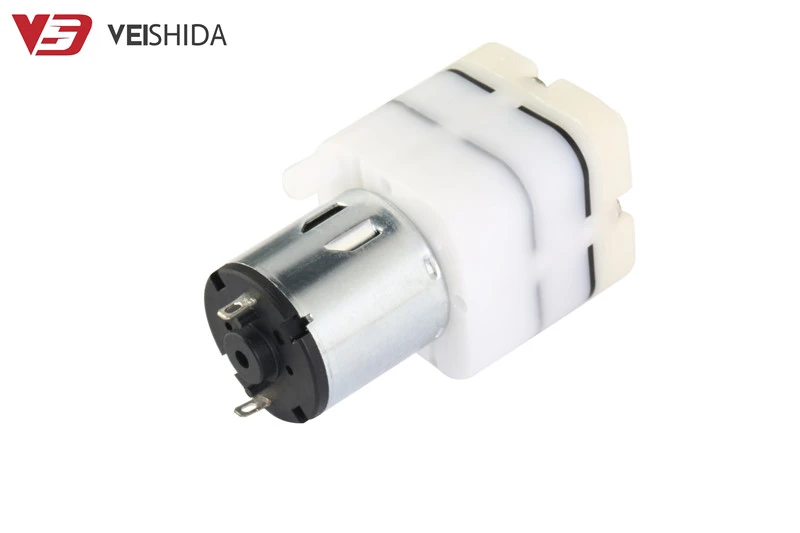

Low Noise Air Pump Motor
Low noise air pump motor Diameter: 39mm,
Length: 70±0.5mm,
Width: 30mm
Widely used in medical beauty, maternal and child health care, smart home, vehicle, office, model aircraft and other fields. We have many years of experience in micro-motor production and research and development to escort your products and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3 months - 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VAP-4001 |
Usage | Foot massager, massager, small household appliances, medical equipment, massage equipment, beauty equipment, household appliances, automotive electronics, automation equipment, etc. |
Type | Air pump |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Diaphragm pump |
Noise Withload | ≤63dB |
Protect Feature | Customized |
Leakage | ≤15mmHg/min |
Rated Voltage | Optional |
Max pressure | ≥450mmHg |
Life test | ≥400H |
Payment terms | 30% advance, 70% balance |
Certificate | Complete |
Customizated | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description
Customized technical data, long service life, stable performance, small size and light weight
Product Parameter
Rated Voltage | Rated Current | Max Pressure | Air Flow | Inflation Time (0mmHg → 300mmHg) | Leakage | Noise Withload | Life test |
DC 6.0V | ≤1000mA | ≥450mmHg | ≥9LPM | ≤6S (1500cc) | ≤15mmHg/min | ≤63dB | ≥400H |
DC 12.0V | ≤500mA | ≥450mmHg | ≥9LPM | ≤6S (1500cc) | ≤15mmHg/min | ≤63dB | ≥400H |
DC 24.0V | ≤200mA | ≥450mmHg | ≥9LPM | ≤6S (1500cc) | ≤15mmHg/min | ≤63dB | ≥400H |
Product Size
The above specifications are for reference only, the specific Low noise air pump motor model and parameters can be customized.
Product Features
Low noise air pump motor has high efficiency of air pump, low noise, high pressure, long service life, high temperature resistance, customized technical parameters.
Product Details
| 100% actual photos |
|
End cap: use high-quality raw materials to increase the service life, fix the rotor of the motor, and have a heat dissipation | Made of high-quality aluminum and plastic, it is corrosion-resistant and durable. | |
| 100% actual photos |
|
Chassis: selected high-quality materials with high hardness, high temperature resistance, corrosion resistance, wear resistance and rust resistance, with a longer service life | Rotor: pure copper wire wound, high quality iron core, low loss, low heat generation |
Company Strength
Product Certificate
Some of our partners
Application
Our Advantage
1. Compact design, small size, light and portable air pump, improve the running speed of electrical equipment, large air volume, no burden to install.
2. Easy to use, standard design, easy installation of electric pump, quick connection with equipment, stable operation.
3. Strong practicability, the air pump is widely used in air sampling, instrumentation, medicine and chemical industry, household appliances and other fields. It is highly flexible and can be adapted to more operating environments.
4. High-quality materials, the micro vacuum pump is made of high-quality aluminum and plastic, quality assurance, rigorous production process, sturdy and durable.
5. It can be customized for customers to meet the different needs of customers in different application scenarios.
Transport Packing
If you have special packing needs, please contact us in advance.
Buying Guides
Payment & Delivery
FAQ
1. Can we visit your factory before placing an order?
Yes, you are very welcome to visit our factory anytime to establish a good relationship for business dealings. Let me know your itinerary before the trigger if you can, I can give you the full itinerary and arrange for someone to pick you up,
2. Do you accept size custom design?
Yes, we accept customized services, you need to provide us with specific parameters, such as voltage, speed, torque, use, etc. After confirming the outline drawing, our company will arrange proofing for you
3. Can you give me a discount?
Discounts are possible, but we look at the actual quantity. We have different prices for different quantities. The discount is determined by the quantity. We sell directly from the manufacturer, and the price is very competitive in the field of motors and pumps.
4. If I have a product that I want to make with other special materials, can you make it?
Of course, you only need to provide us with design drawings or samples, the R&D department will evaluate whether we can do it, and we will give you the most satisfactory answer.
5. What is the lead time for regular orders?
For regular orders, the standard lead time is around 25 days (10-20 days for production samples) this time will be shorter or longer due to different models, cycles and quantities.
