Micro Air Pump for Inflatable Bed
Micro air pump motors Diameter: 27mm,
Length: 61mm,
Width: 24mm
Widely used in medical beauty, maternal and child health care, smart home, vehicle, office, model aircraft and other fields. We have many years of experience in micro-motor production and research and development to escort your products and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3 months - 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VAP-2705 |
Usage | Medical equipment, massage equipment, beauty equipment, household appliances, automotive electronics, automation equipment, etc. |
Type | Air pump |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Diaphragm pump |
Noise Withload | ≤55dB |
Protect Feature | Customized |
Rated Voltage | 12 V |
Rated Current | Optional |
Max pressure | ≥400mmHg |
Life test | ≥500H |
Payment terms | 30% advance, 70% balance |
Certificate | Complete |
Customizated | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description
Customized technical data, long service life, stable performance, small size and light weight
Product Parameter
Rated Voltage | Rated Current | Max Pressure | Air Flow | Inflation Time (0mmHg → 300mmHg) | Leakage | Noise Withload | Life test |
DC 3.0V | ≤600mA | ≥400mmHg | ≥1.5LPM | ≤15S (500cc) | ≤10mmHg/min | ≤55dB | ≥500H |
DC 6.0V | ≤430mA | ≥400mmHg | ≥1.5LPM | ≤15S (500cc) | ≤10mmHg/min | ≤55dB | ≥500H |
DC 12.0V | ≤280mA | ≥400mmHg | ≥1.5LPM | ≤15S (500cc) | ≤10mmHg/min | ≤55dB | ≥500H |
DC 24.0V | ≤150mA | ≥400mmHg | ≥1.5LPM | ≤15S (500cc) | ≤10mmHg/min | ≤55dB | ≥500H |
Product Size
The above specifications are for reference only, the specific air pump model and parameters can be customized.
Product Features
1. The air pump is easy to install and easy to use
2. Compact design, flexible customization and stable performance
3. Mini size design
4. With explosion-proof safety performance
5. Use in most DIY projects and vacuum suction automation equipment
Product Details
| 100% actual photos |
|
Made of high-quality aluminum and plastic, it is corrosion-resistant and durable. | End cap: use high-quality raw materials to increase the service life, fix the rotor of the motor, and have a heat dissipation effect. | |
| 100% actual photos |
|
Rotor: pure copper wire winding, high quality iron core, reduce energy loss, reduce current resistance | Chassis: selected high-quality materials with high hardness, high temperature resistance, corrosion resistance, wear resistance and rust resistance, with a longer service life |

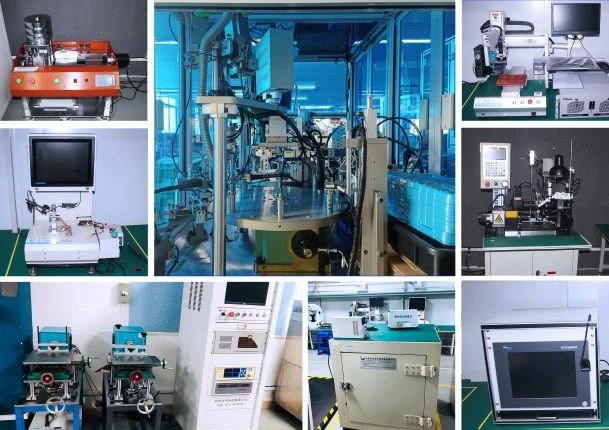

Company Strength
Product Certificate
Some of our partners
Application
Our Packing Service
1. The packaging is high-density Polylong single-distinct packaging, which does not collide with each other during packaging and transportation to affect performance.
2. Different models are customized with different placement grids, and the motor will not be transferred individually during packaging and transportation.
3. Packing tape on the outside of the carton to prevent damage to the carton.
4. Our company has special long-distance transportation packaging, the packaging is safe, please rest assured to order.
5. If you have special packaging requirements, please inform us in advance.
Transport Packing
If you have special packing needs, please contact us in advance.
Buying Guides
Payment & Delivery
Micro air pump, vacuum pump refers to a gas conveying device with a small size and a gaseous working medium, which is mainly used for gas sampling, gas circulation, vacuum adsorption, vacuum pressure holding, air extraction, pumping, pressurization and other purposes. The application range is very wide, and it can support customization. You can contact us at any time if you need it. The perfect after-sales service system ensures worry-free after-sales. Friends from all walks of life are welcome to visit our factory for business negotiation.
