AEG Motor Short Axle Airsoft Gun Accessories
Outer Diameter: 23mm,
Length: 78.5mm,
Width: 29.6mm
Magnetic materials:N35 Nd-Fe-b magnet
DC 11.1V:31000 rpm
weight:About 145g
Description
Overview
Warranty | 3months-1year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VSD-480WA-7021G |
| Usage | Airsoft Industry |
| Type | Airsoft motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brushless |
Protect Feature | Customized |
| Voltage range | ≤36 V |
Product Name | Micro motor |
Rated Voltage | 11.1 V |
Starting Current | 95 A |
| Test humidity | 45%-85% |
| Test temperature | 20℃±2℃ |
| No load speed | 30000±8% r/min |
| Output Power | 150W |
Starting torque | 5100 g.cm |
Payment terms | 30% advance, 70% balance |
Dimensions | 74*30（mm） |
| Critificate | ROHS |
Customized | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Product Description
An average of two months to develop a new motor
Product Parameter
| Customer | NO LOAD | AT MAX EFFICIENCY | STALL | |||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | EFF | CURRENT | TORQUE | |
| MODEL | rpm | A | rpm | A | g.cm | % | A | g.cm |
| VSD-480WA-7021G | 20200 | 2.4 | 17200 | 15.1 | 495 | 70.7 | 95 | 3600 |
Product Size
Performance Curve
The above specifications are for reference only, the type and parameters of the specific micro airsoft motor can be customized.
Product Feature
AEG Motor short Axle Airsoft Gun Accessories has Stable speed, low price and balanced performance. High-density chute armature rotor, improve output torque and efficiency, reduce motor running heat, precision CNC machined aluminum motor housing, stable performance, low noise, long service life, customized technical data
Product Details
| 100% actual photos |
|

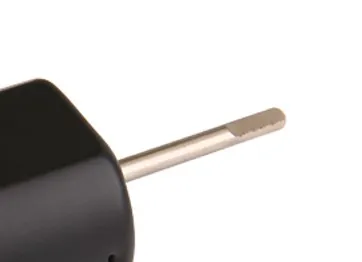

Rotor: pure copper wire wound, high-quality iron core, high temperature resistance, reduce energy consumption, reduce current resistance | Bearings: D axis, more convenient to install, not easy to slip, save installation time (can be customized according to demand) | |
| 100% actual photos |
|
End cap:use high-quality raw materials to increase the service life, fix the rotor of the motor, and have a heat dissipation effect. | Chassis：High-quality materials with high hardness, high temperature resistance, corrosion resistance, wear resistance and rust resistance are selected, and the service life is longer |
Airsoft Motor
CNC motor gear
CNC machined pinion steel gear
CNC machined stainless steel shaft
Enlarged motor-shaft ball-bearing stabilizers
Silicon steel rotor
Precision built motor housing
Heat resistant rare-earth magnets
High-grade silver plated wiring and larger carbon brushes
Type: Long Type
TPA: 15TPA
RPM: 31000
Application: High Torque
Company Strength

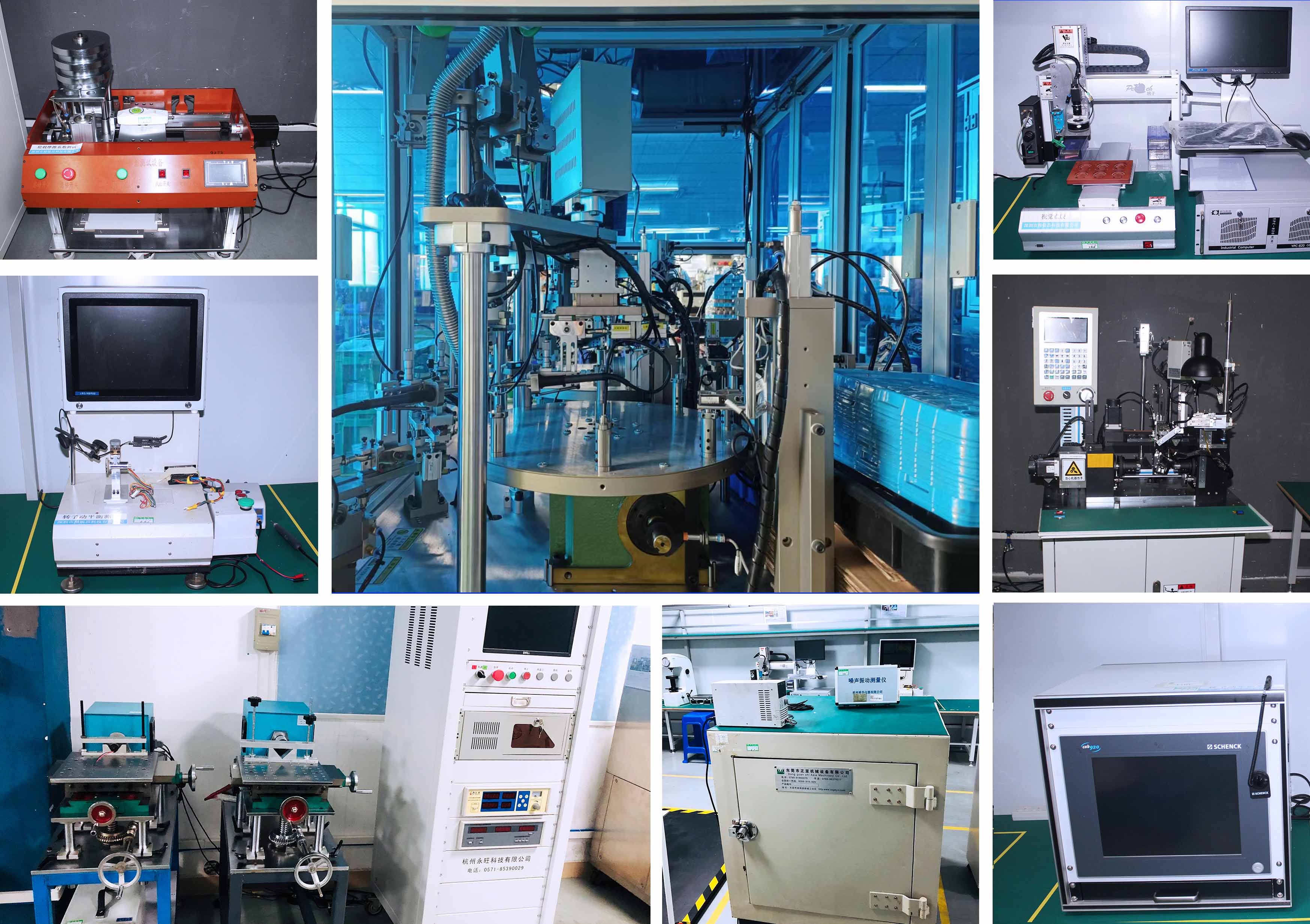

Automatic winding machine, stator automatic stator machine, end cover automatic stator machine, automatic soldering machine and other high-end motor equipment
Reliability test and laboratory, noise test, waterproof test, life test, crash test, storage test, salt spray test, etc. High quality guarantee for your motor
Product Certificate
Some of our partners
We have been committed to the motor industry for many years, covering most of the European and American markets, and look forward to becoming your long-term partner in China.
Application
The application range of micro motors is very wide, and the models can be customized for different application fields. If you have special needs, please feel free to contact us
Transport Packing
Shockproof foam packaging, suitable carton size.If you have special packing needs, please contact us in advance.
Inner packaging of foam box: 350*265*280mm
Carton outer packaging: 365*275*320mm
Weight 16.7kg/350pcs
Buying Guides
All AIRSOFT products are quality assured, hand assembled, custom modified and dry fired tested. We sell new, unsold motors. Different manufacturers have different assembly standards. Logo parts being moved and replaced, cosmetic defects or lubrication are normal parts of the air gun assembly process and will not affect performance.
Payment & Delivery
Our advantages
* We have a sample workshop dedicated to handling samples.
* We have more than 10 years of production and R&D experience in the DC motor industry.
* We accept OEM or ODM orders.
* Our daily motor output exceeds 200,000 pieces.
* We have an independent R&D team and professional international sales staff, who can provide you with professional solutions.
* We have competitive prices in the Chinese micromotor market and even the world.
* Fast delivery, large production scale, automated production process, the conventional motor proofing time is 3-5 days, and the new model motor proofing time is 25 days.
* We have CE, ROHS, ts16949, REACH and other certifications.
*Our customer service staff will reply your inquiry within 12 hours.
If you have other needs, please contact us.
