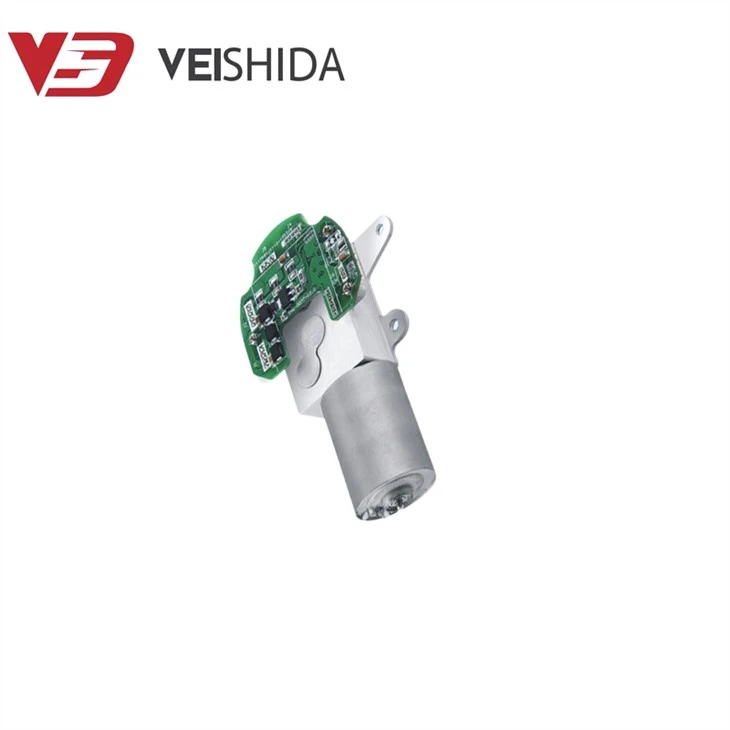

High Torque Gear Motor 12v

Overview

Warranty	3 months to 1 year
Place of Origin	Guangdong, China
Brand Name	Vshida
Model Number	GBW30-EC2838
Usage	Smart home, industry, office smart equipment, power tools, toys, robots, vehicle, model aircraft, medical, commercial, etc.
Type	Micro motor
Weight	TBD (different ratio different weight)
Components	Diversifed
Construction	Permanent Magnet
Protect Feature	Customized
Efficiency	85%
Rated valtage	2.4 (V)
No load speed	19  r/min
No load current	0.6 (A)
Starting torque	18148.5 mN.m
Dimensions	28*38(mm)
Payment terms	30% advance, 70% balance
Certificate	ROHS
Customizated	Acceped



Company Highlights



Supply Ability

Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight



Packaging & Delivery

Packaging Details

Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.

Port: Shenzhen / HongKong



Product Description

An average of two months to develop a new motor



Product Parameter

VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
NOMINAL V	SPEED r/min	CURRENT A	SPEED r/min	CURRENT A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	CURRENT A
12	19	0.600	15	2.314	3736.71	5.749	18148.5	8.925

Product Size

Performance Curve



The above specifications are for reference only, the type and parameters of the specific  gearbox reduction motor can be customized.



Product Features

Space-saving, reliable and durable, high overload capacity, low energy consumption, superior performance, reducer efficiency as high as 95%, low vibration, low noise, high energy saving, high-quality steel material, rigid cast iron box, gear surface through High frequency heat treatment, can be customized design for customers.



Product Details

	100%  actual  photos
End cap:  Use high-quality raw materials to increase the service life, fix the rotor of the motor, and have a heat dissipation effect.		Bearings can be customized
	100%  actual  photos
Chassis: selected high-quality materials with high  hardness, high temperature resistance, corrosion  resistance, wear resistance and rust resistance, with  a longer service life		Rotor: pure copper wire winding, high quality iron core,reduce current resistance, low heat generation, low loss



Company Strength



Motor introduction

1. Application areas: smart bathroom, smart home, sweeper, robot elbow rotation, precision instruments, industry, medical and other fields.

2. Adopt planetary gear transmission, rational use of internal and external meshing, power splitting, improve efficiency, box body is made of ductile iron, which greatly improves the rigidity and shock resistance of the box body.

3. The worm gears are all treated by infiltration and quenching to obtain a high-hard wear-resistant surface. After heat treatment, the gears are all ground, which reduces noise and improves the efficiency and life of the motor.

4. High control precision, complete functions, and performance parameters can be reasonably customized and designed according to customer needs.

5. Stable quality, reasonable price, convenient delivery, short delivery cycle, strong R&D capability and guaranteed quality.



Product Certificate



Some of our partners

We have been committed to the motor industry for many years, covering most of the European and American markets, and look forward to becoming your long-term partner in China.

Application



Transport Packing

Shockproof foam packaging, suitable carton size.If you have special packing needs, please contact us in advance.
