385 28MM 12V Micro DC Motor
385 28MM 12V Micro DC Motor
385 28MM 12V Micro DC Motor
385 28MM 12V Micro DC Motor
385 28MM 12V Micro DC Motor

385 28MM 12V Micro DC Motor

Send Inquiry

Description

385 28MM 12V Micro DC Motor is a medium-speed "385" type motor, rated at 24V 8000 rpm, with a body diameter of 27.7mm and a shaft diameter of 2.3mm. It has the characteristics of high torque, low noise, stable performance, high efficiency, and smooth speed change. ;Motors are usually used in household appliances, automotive products, hair dryers, water pumps, air pumps, medical equipment, toy motors, small electric drills, etc.; the operating voltage range is below DC 36V; the motor will consume high current, so you should ensure that the power supply you use and control hardware capable of withstanding this current. Can be customized for customers, highly automated production lines to meet customers' large quantities of orders.

Company Highlights

High speed 385SA DC Motor

dc carbon brushed 385 motor for pump

Overview

Warranty	3months-1year
Place of Origin	Shenzhen, China
Brand Name	Vshida
Model	VRK-385
Usage	Household appliances, automotive products, hair dryers, water pumps, air pumps, medical equipment, toy motors, small electric drills, etc.
Type	Carbon Brush Motor
Weight	TBD (different ratio different weight)
Components	Diversifed
Construction	Permanent Magnet
Commutation	Brushed
Protect Feature	Customized
Efficiency	88%
Voltage range	≤36 V
Product Name	Micro Brush DC Motor
Rated Voltage	12 V
No load Speed	8000±10%rpm
No Load Current	0.07 A
Load Speed	7000士8%rpm
Starting Torque	48.856 mN.m
Payment terms	30% advance, 70% balance
Critificate	IATF16949
Customized	Acceped

Product Description

mini 385 dc carbon brush motor

Vshida micro motor has a dedicated research and development team, which can produce various new motors in less than a month, and meet the customization needs of customers, and also provide OEM/ODM services.

Product Parameter

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
OPPERATING RANGE	NOMINAL V	SPEED r/min	CURRENT A	SPEED r/min	CURRENT A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	CURRENT A
10-14	12	4403	0.057	3643	0.27	5.32	2.028	30.79	1.308
22-26	24	8356	0.07	7017	0.37	7.83	5.754	48.856	1.921

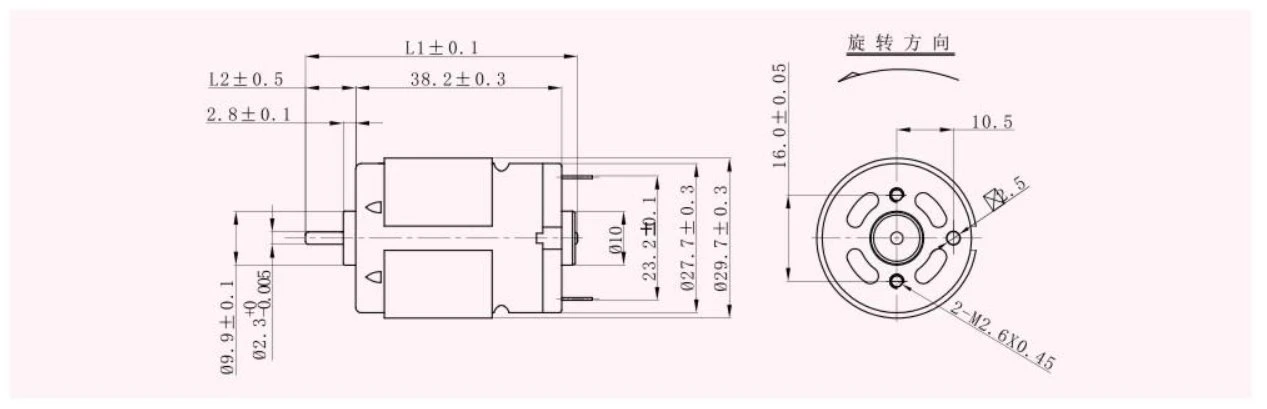

Motor Outline

Motor Performance Curve

385 performance curve

Customers should get in touch with us straight away if they have any particular requirements. Within 24 hours, we'll respond to your online question. Any technical issue can be resolved with the help of qualified professionals.

Our service

1. The 385 28MM 12V Micro DC Motor has excellent construction. High degree of cooperation, precise specifications, advanced technology, and steady operation.

2. Production of motor components that is energy-efficient and silent, high-precision, and uses sophisticated manufacturing technology to assure reliable performance

3. Following rigorous quality control testing, such as dependability and laboratory, noise, waterproof, life, crash, storage, and salt spray tests.

4. We have a fantastic team that concentrates on business operations, quality control, and inspection of products. To provide clients with quick and excellent motor selection and after-sales assistance, our customer support representatives are available online 24 hours a day.

5. To satisfy the huge volume orders from clients, high productivity, automated production, more than 50 production lines, and daily output of more than 200,000 motors;

Company Strength

Shenzhen Vshida Micromotor Co., Ltd. is a micromotor manufacturing enterprise integrating professional R&D, production and sales in Shenzhen. Its main products include precious metal brush micromotors, carbon brush micromotors, gear reduction motors, brushless motors, and Airsift motors. , hub motors, coreless slotless motors, pumps (water pumps, air pumps, solenoid valves) and other types of micro DC motors. It has gathered a large number of high-tech and management talents in the motor industry, and has strong product development and production capabilities. Meet customer customization needs.

carbon brushed 385 dc Motor process

385 dc motor checkout equipment

We have a variety of automation equipment, including an automatic soldering machine, an automatic winding machine, an automatic stator machine, an automatic end cap stator machine, and other precise electric tools.

Give your motor high-quality assurance, reliability testing, and a lab for noise, waterproof, life, collision, storage, salt spray, and other tests.

Product Certificate

small 385 carbon brushed DC motor certificate

Why choose us?

Some of our partners

385 micro dc motor partner

Application

high speed dc 385 motor application

We have an independent R&D team, a verified process design, and 15 years of motor production and R&D expertise. Joining forces with us entails working with a manufacturer who carefully evaluates each step and creates high-quality products. Each of our motors undergoes a battery of rigorous tests to further guarantee their high caliber.

Transport Packing

low noise dc brushed motor package
