Brushed DC Motor for Electric Shaver
Length: 47mm,
Output Shaft Length: 8±0.5mm
Width: 28mm
Brushed dc motor for electric shaver are widely used in medical beauty, maternal and child health care, smart home, vehicle, office, model aircraft and other fields. We have many years of experience in micro-motor production and research and development to escort your products and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3 months - 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VRK-2847SH |
Usage | Medical, maternal and child, beauty, vehicle, household appliances, communication equipment, industrial equipment, personal care, massager, banking equipment, office and other electronic equipment, etc. |
Type | Brushed dc motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brush |
Protect Feature | Customized |
Efficiency | 85% |
Max power | 5.006 (W) |
Max speed | 3659±10% (rpm) |
Rated Voltage | 12.0 (V) |
Max Current | 0.636(A) |
Starting torque | 91.439 mNm |
Payment terms | 30% advance, 70% balance |
Certificate | Complete |
Customizated | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description
An average of two months to develop a new motor
Product Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||
OPPERATING RANGE | NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
8-26 | 12 | 4269 | 0.106 | 3659 | 0.636 | 13.063 | 5.006 | 91.439 | 3.816 |
Product Size
Performance Curve
The above specifications are for reference only, the type and parameters of the specific carbon dc motor can be customized
Product Features
Brushed DC Motor for Electric Shaver efficiency can reach about 96%, high efficiency, high energy conversion rate, energy saving, low noise, long life, wear resistance, customized technical data
Product Details
| 100% actual photos |
|

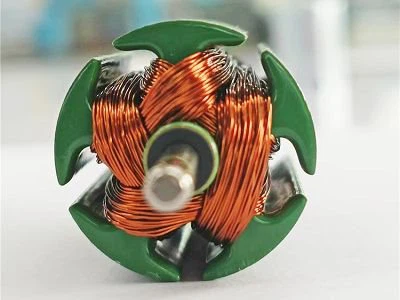

Rotor: Made of pure copper wire, high-quality iron core, low calorific value and low loss | End cap: high-quality carbon brush/electric brush is used to increase service life and higher matching degree | |
| 100% actual photos |
|

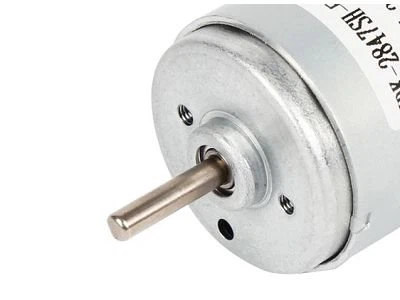

Chassis: high-quality materials with high hardness, high temperature resistance, corrosion resistance, wear resistance and rust resistance are selected, and the service life is longer | The bearing adopts low noise and wear-resistant bearing (the bearing can be customized) |
Company Strength
Product Certificate
Some of our partners
Application
Brushed DC Motor for Electric Shaver
Technical requirements: DC: 12.0V, load 100g-cm, CCW/CW steering. No-load current≤300mA, internal control current≤200mA, no-load speed: 4300±10% rpm, load current: ≤600mA, load speed: 3650±10%RPM; starting power distance≥600g-cm, output shaft length 25±0.5 mm, starting voltage: 8.5V, winding turns: 0.30*41; starting voltage: 8.5V
Transport Packing
If you have special packing needs, please contact us in advance.
Buying Guides
Payment & Delivery
FAQ
1. Which shipping method can you offer?
A: We can provide sea, air and express. If you have special needs, please contact us in advance.
2. How to contact, negotiate and cooperate?
A: Please contact our international team via email, phone and other effective means of communication.
3. What payment methods can you accept?
A: 30% down payment before production and 70% balance payment before shipment.
4. What are your payment terms?
A: T/T, Western Union, PayPal, etc. We accept any convenient and fast payment method.
5. Can the motor be customized after your request?
Of course, you only need to tell us your specific parameters, and it can be customized according to your requirements.
