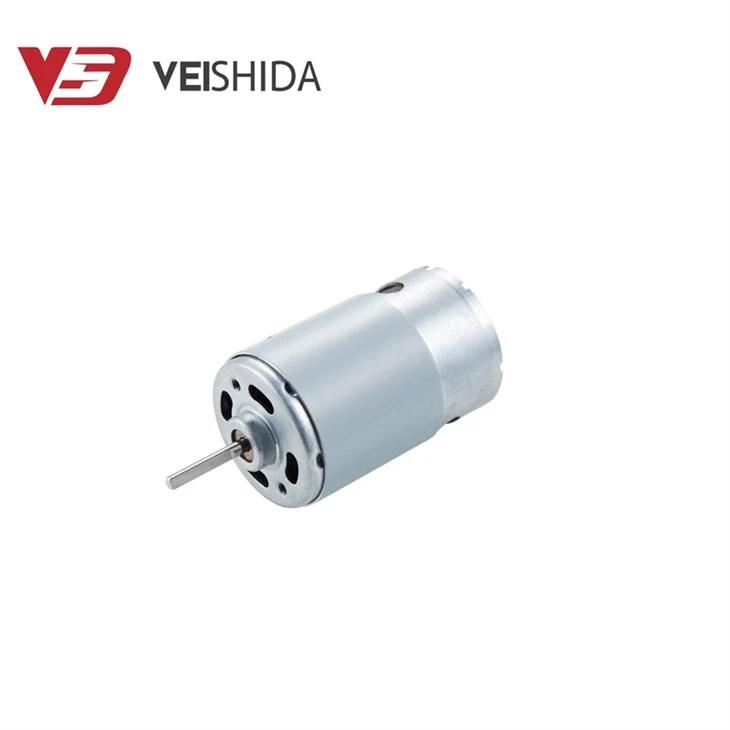

550 DC Carbon Brush Motor High-speed

Overview

Company Highlights

Supply Ability

Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight

Packaging & Delivery

Packaging Details

Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.

Port: Shenzhen / HongKong

Product Description

An average of two months to develop a new motor

Product Parameter

Product Size

Performance Curve

The above specifications are for reference only, the type and parameters of the specific brushed dc motor can be customized

Product Features

Using precision machining, magnetic material processing, insulation processing, high efficiency, fast response, sufficient power and torque, providing a quiet working environment, good wear resistance, high speed, customized technical parameters (speed, voltage, power, etc.)

Product Details

Our Advantage

1. Powerful torque, the armature of this powerful 550 motor is 30% longer than the standard 540 size motor, which can provide extremely high torque, and the high strength magnet ensures the best performance.

2. Long-lasting performance, heat-resistant motor with built-in cooling fan, not only fast speed, long running time, but also long service life.

3. Unique design, the plug is easy to connect without soldering. 1/8-inch shaft diameter brushed motor, ball bearing on the output side, compatible with a variety of brushed ESCs.

4. The rotor part adopts pure copper group, which has low resistance and strong conductivity, which increases the motor torque.

5. There is a professional case team, which can be customized according to customer needs to meet your customized needs, modern production processes, highly automated equipment, and the daily output of motors exceeds 200,000 units.

Company Strength

Product Certificate

Some of our partners

We have been committed to the motor industry for many years, covering most of the European and American markets, and look forward to becoming your long-term partner in China.

Application

Transport Packing

Shockproof foam packaging, suitable carton size.If you have special packing needs, please contact us in advance.

Buying Guides

Payment & Delivery

Precautions for replacing 550 brushes

1. When replacing the carbon brush, you should wear wire gloves, wear insulating shoes, and fasten your clothes and cuffs without entanglement.

2. When operating, only one hand or two hands can touch the same point for operation, and two hands are not allowed to touch different points, and two people are not allowed to operate at the same time, so as to avoid contact with live parts.

3. When the carbon brush is too short, less than 1/4 of the original length, or the brush braid is seriously discolored or damaged, it should be replaced with a new one in time.

4. In general, only one carbon brush can be replaced for each carbon brush holder at the same time. The quantity of each replacement cannot exceed 1/10 of the total

5. When replacing, only one carbon brush holder can be removed at a time. After replacement, each carbon brush must be put into the brush holder baffle, and then put into the generator brush socket. After replacement, measure the current to confirm that the carbon brushes are in good contact.

6. When the brush holder cannot be removed, do not shake it violently to prevent damage to the brush holder and brush socket, and should be notified for maintenance.

7. When replacing, avoid the high load of the generator, and do it when the generator and excitation system are normal and faulty.

8. When replacing the carbon brush, when the contact surface between other carbon brushes and the slip ring is found not smooth and rough, check whether the slip ring is smooth and clean, and if there is a problem with the slip ring, immediately notify the maintenance and repair.
