High Torque Brushed DC Motor

High torque brushed DC motor is a high-performance motor with advantages such as high speed, high torque, and high efficiency. It is suitable for various motor control systems and is widely used in fields such as mechanical manufacturing, vehicles, and industrial machinery.

Firstly, high torque is one of its most attractive features to customers, as it can output greater torque at lower voltages. In other words, high torque motors can easily cope with high loads and high speeds, making them an ideal choice for various industrial and commercial applications.

Secondly, in terms of work efficiency, high torque DC motors also perform well. Compared with other types of motors, they can work more efficiently under the same load, are relatively more durable and have a long lifespan. This makes it a better choice for high-speed sports and truck driving, which not only saves energy but also saves maintenance costs.

In addition, it also has reliability and stability, and can work normally in harsh environments. Usually made of high-quality materials, it has high seismic performance and can withstand the influence of factors such as high temperature, humidity, and chemical corrosion. Therefore, they are suitable for various challenging and extreme applications.

In short, this product is a high-performance, high-efficiency, safe and reliable motor that can meet various industrial and commercial needs and win the trust and choice of a wide range of customers. If you are looking for high-quality motors suitable for your industrial and commercial use, then this 320 DC motor is definitely worth a try!

Product Parameter



Model	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
VRK-320SH	OPPERATING RANGE	NOMINAL V	SPEED r/min	CURRENT A	SPEED r/min	CURRENT A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	CURRENT A
	3-7	3.7	5290	0.087	4171	0.324	1.52	0.664	7.188	1.208
	10-14	12	5861	0.028	4584	0.101	1.36	0.65	6.219	0.361

Product Size

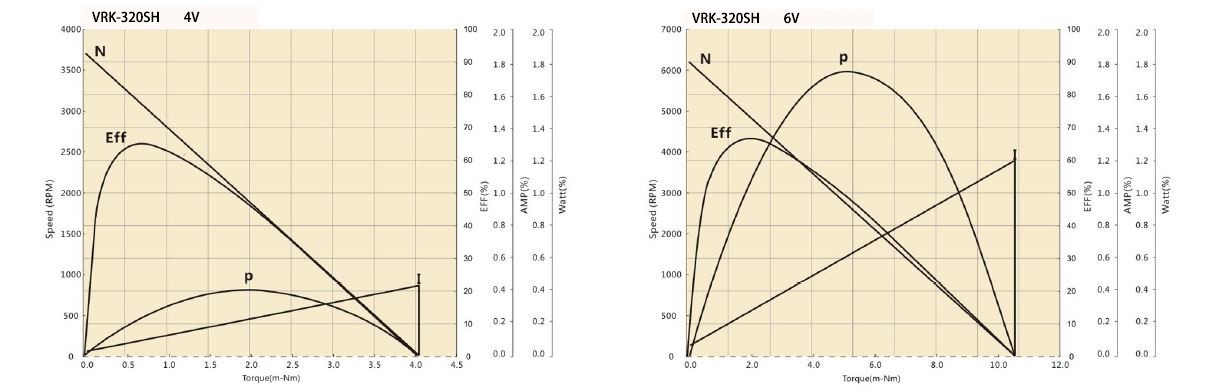

Performance Curve

As per the customer's requirements. Different applications may require different specifications, such as varying voltage, current or speed. When customizing a brushed DC motor, factors that should be considered include the application requirements, the available power supply, the required torque, and the desired operating temperature range. These factors can impact the motor's overall performance and durability, as well as the cost and lead time for production. It is recommended to consult with an experienced motor manufacturer or supplier for custom motor solutions.

Product Details

	100% actual photos
Consisting of permanent magnets with a certain number of poles embedded on the surface of the iron core or embedded inside the iron core. Made of rare earth permanent magnet materials with high coercivity and high permeability magnetic induction density such as neodymium, iron, and boron		Usually made of metal material aluminum alloy, it has the advantages of lightweight, high strength, and low corrosion resistance, making it suitable for manufacturing components such as motor casings, end caps, and rotors.

DESCRIPTION

1. Technical parameters:

The rated voltage of the 320 motor is 12V, the rated speed is 6000 rpm, the maximum output power is 120W, the maximum torque is 1.5N. m, the outer diameter is 24.4mm, and the length is 19mm. The front and rear axle ends are designed with circular shafts, with a diameter of 2mm.

2. Structural features:

Adopting a built-in electromagnetic brush design, it has good anti-interference performance and stability. The rotor is manufactured using high-precision processing technology, which has good balance and low noise. The bearings and gears are made of high-strength metal materials, which have high wear resistance and corrosion resistance.

3. Application field:

Widely used in household appliances, such as vacuum cleaners, air purifiers, etc; Medical equipment, such as medical nursing beds, medical nursing chairs, etc; Automation equipment, such as electric door, vending machine machine, etc.

4. Quality assurance:

Adopting strict production processes and quality control systems to ensure the stability and consistency of product quality. At the same time, the motor has also passed CE, ROHS and other certifications, making it safe to use.

5. Service Support:

The Vshida High Torque Brushed DC Motor factory provides a one-year warranty service. If you have any questions, customers can contact our after-sales service team at any time for support. We will provide you with professional and efficient services to ensure customer satisfaction

Company Strength



VRF-320SH motor manufacturer is a professional company with many years of experience and excellent technology, with complete equipment and advanced production processes. The factory strictly follows the ISO 9001 quality management system, and each process is controlled and monitored by relevant personnel to ensure product quality, production efficiency and job security. In addition, the factory is constantly innovating in research and development, improving product performance and adaptability to meet customer needs and market changes.

We have always upheld a high value and responsible attitude towards product quality and customer service, which has earned our products widespread recognition and trust from our customers. We look forward to becoming your first choice among Chinese manufacturers.

Product Certificate

1. ISO 9001: Confirming that the quality management system of the enterprise complies with international standards and is mandatory.
2. ISO 14001: Ensure that the environmental management system of enterprises complies with international standards to reduce harm to the environment.
3. OHSAS 18001: Safety and Health Management Certification, compliant with safety, health, and sustainability standards.
4. CE certification: Prove that the motor product meets European safety, health, and environmental standards and can be sold in the European market.
5. UL certification: a compulsory standard of the federal government of the United States, which proves that the product meets the standards for electrical, energy efficiency and fire safety, and is usually used to enter the North American market.
6. CCC certification: China's mandatory certification ensures that products comply with Chinese national standards and can be sold in the Chinese market.

In addition, we also have IATF16949 and multiple international patent certifications. We attach great importance to quality management and technological innovation, constantly improving our technical capabilities and product quality to ensure that we meet customer needs and expectations, while also complying with international standards and regulations. We will actively participate in different certifications to enhance brand influence and customer trust.

1. Home appliance industry

Widely used in household appliances, such as vacuum cleaners, handheld vacuum cleaners, electric fans, air purifiers, etc. These products require high-efficiency and low-noise motors to drive them

2. Automotive industry

Such as car front wipers, car seat adjusters, etc. These motors require high torque and reliability to meet the high requirements of the automotive industry,

3. Medical device industry

Such as dental treatment equipment, surgical instruments, etc. These devices require motors to be compact and low noise, but also to have high torque and reliability,

4. Industrial automation field

Such as robots, automatic assembly lines, vending machine machines, etc. These devices require motors with high precision, high-speed drive, low power consumption, and other characteristics,

Payment & Delivery

The payment method and delivery period of VSHIDA micro motors usually depend on the agreement between the supplier and buyer, and can be determined through negotiation based on specific contract terms. It supports wire transfer, letter of credit, Alipay, PayPal, etc., while the delivery period depends on the number of products, production cycle and other factors. Generally speaking, the delivery cycle is around 10-15 working days.

FAQ

The High Torque Brushed DC Motor rotor generally adopts the following manufacturing process？

1. Determine rotor shape and size, and design rotor structure and details.

2. Make a rotor mold, select appropriate mold materials according to the rotor design drawings and process requirements, and carry out mold making and repair.

3. Melt cast the rotor blank using materials such as metal powder or ingots, according to the appearance and size requirements of the rotor, in the casting mold. At this point, attention should be paid to controlling parameters such as mold temperature, pouring speed, and direction of metal liquid flow.

4. Conduct mechanical processing, rough machining, turning, grinding and other processes on the rotor blank formed by melting and casting, to ensure that it meets the design requirements in terms of size, shape, and surface quality.

5. Carry out fine processing, such as bearing holes, flying shear teeth and other details processing, while also carrying out surface treatment, such as acid washing, polishing, etc.

6. Conduct assembly and testing, assemble the rotor with other parts of the motor according to manufacturing and process requirements, and conduct electrical parameter testing and performance testing to ensure compliance with usage requirements.
