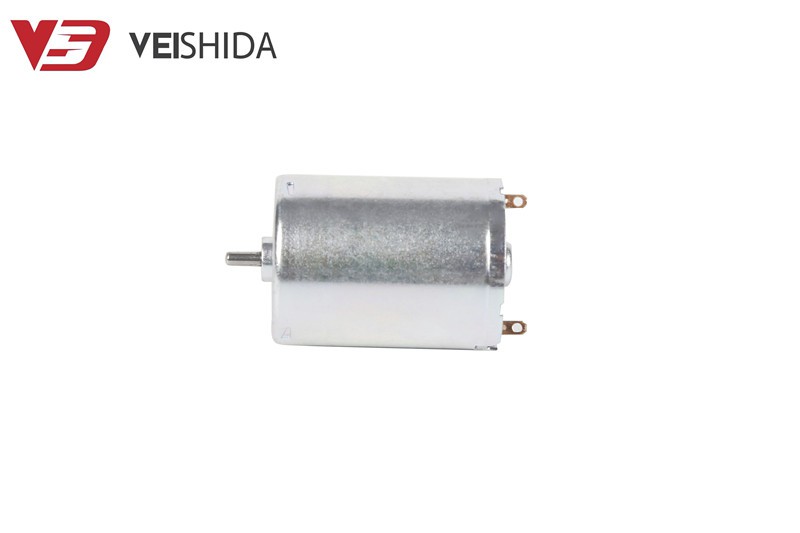

Brushed Motor for Office Automation Equipment
Shaft length: 6.5±0.3mm;
Axial clearance: 0.05-0.5mm；
Length: 31mm,
Width: 24mm
Brushed Motor for office automation equipment widely used in medical beauty, maternal and child health care, smart home, vehicle, office, model aircraft and other fields. We have many years of experience in micro-motor production and research and development to escort your products and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3 months - 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VRK-370SH |
Usage | Cars, Electric Bicycles, Fans, Home Appliances, Remote Control Models, Air Pumps, Water Pumps, Office Automation Equipment, ATMs, Vending Machines, Vacuum Cleaners, Unlimited Power Tools, medical equipment, car massage seats, etc. |
Type | Brushed dc motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brush |
Protect Feature | Customizated |
Efficiency | 70% |
Rated speed | 5066/2489 (rpm) |
Rated Voltage | 12/24 (V) |
Rated torque | 3.396/2.380 (NM) |
Dimensions | 30.8*24.4 (mm) |
Payment terms | 30% advance, 70% balance |
Certificate | ISO 9001:2015 /IATF16 |
Customizated | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description
An average of two months to develop a new motor
Product Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||
OPPERATING RANGE | NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
| 8-15 | 12 | 5066 | 0.031 | 4356 | 0.190 | 3.396 | 1.549 | 24.243 | 1.168 |
| 12-30 | 24 | 3489 | 0.010 | 2896 | 0.049 | 2.380 | 0.722 | 13.999 | 0.238 |
Product Size
Performance Curve
The above specifications are for reference only, the type and parameters of the specific motor can be customized
Product Features
1. Micro brushed dc motor are used in water pumps, air pumps, printers, copiers, etc., and can be customized.
2. Using special materials and new technology, the product has stable performance, high efficiency and good mute effect.
3. The motor has undergone strict life testing and has a long service life.
4. The parameters of the motor can be customized according to the different needs of different users.
Product Details
| 100% actual photos |
|

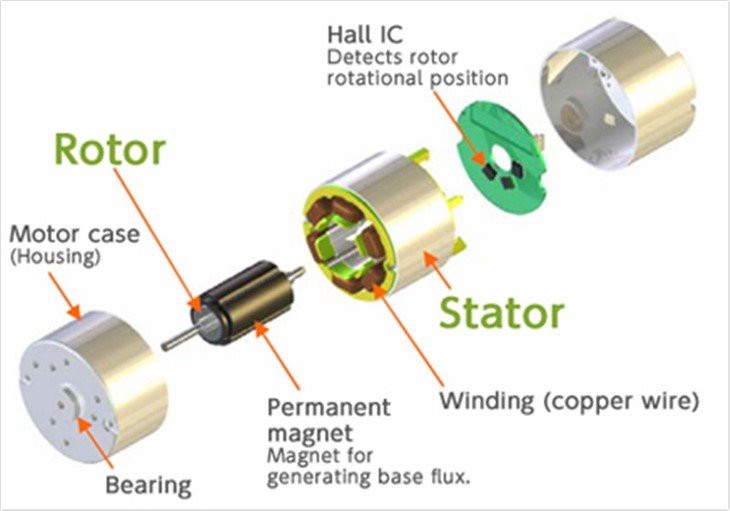

Rotor: pure copper wire wound, high quality iron core, low heat generation and low loss | End cap: use high-quality carbon brushes/electric brushes to increase the service life and make the matching degree higher | |
| 100% actual photos |
|
Bearings: choose brand bearings to reduce motor noise and improve service life (bearings can be customized) | Stator: selected high-quality materials with high hardness, high temperature resistance, corrosion resistance, wear resistance and rust resistance, with a longer service life |
Company Strength
Product Certificate
Our Service
1. We have more than 500 well-trained employees, the number and productivity With the help of modern automated production lines, the monthly output value of motors exceeds 4.5 million units.
2. There are more than 300 high-end machines of various types, in addition, we have advanced quality control process to ensure that the motors comply with CE, REACH and RoHS standards.
3. We have been using advanced CAD software such as Proe and Solidworks to guarantee our services. We provide total solutions and OEM services.
4. Powerful factory, quality assurance, worry-free after-sales. A number of international trade sales staff, providing flexible and professional services.
5. We guarantee: All inquiries will be replied within 12 hours. 95+% of orders can be delivered on time Complaints can be handled within 7 days.
Some of our partners
Application
Transport Packing
If you have special packing needs, please contact us in advance.
Buying Guides
Payment & Delivery
Note:
1. The size of the brushless motor is measured manually, please allow a slight error, thank you for your understanding.
2. The color of the picture may be slightly different from the actual product, please refer to the actual product.
3. Please pay attention to the size of the product before purchasing.
