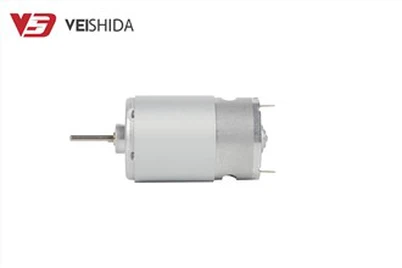

High Torque Carbon Brush DC Motor
Diameter: 33mm,
Length: 22mm,
Output Shaft Length: 8±0.5mm
Our motors are widely used in medical beauty, maternal and child health care, smart home, vehicle, office, model aircraft and other fields. We have many years of experience in micro-motor production and research and development to escort your products and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3 months - 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VRK-520TC |
Usage | fans, household appliances, remote control models, air pumps, water pumps, office automation equipment, ATMs, vending machines, vacuum cleaners, infinite power tools, medical equipment, car massage seats, etc. |
Type | Brushed dc motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brushed |
Protect Feature | Customized |
Efficiency | 86% |
Rated power | 2.30 (W) |
Rated speed | 4800±10% (rpm) |
Rated Voltage | 12 V |
Rated Current | ≤0.035 (A) |
Rated torque | ≥140 (NM) |
Dimensions | 33*22.8 (mm) |
Payment terms | 30% advance, 70% balance |
Certificate | ROHS |
Customizated | Acceped |
Company Highlights

Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description

An average of two months to develop a new motor
Product Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||
OPPERATING RANGE | NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
| 9.0-15 | 12 | 6103 | 0.040 | 5081 | 0.199 | 2.885 | 1.535 | 17.224 | 0.988 |
| 20-28 | 24 | 5723 | 0.015 | 4844 | 0.083 | 2.654 | 1.346 | 17.275 | 0.455 |
Product Size
Performance Curve
The above specifications are for reference only, the type and parameters of the specific motor can be customized
Product Features
Brushed DC motors are used in water pumps, air pumps, household appliances and automation products, etc., with a wide range of applications, low noise, high efficiency, stable speed change, and stable performance.
Product Details
| 100% actual photos |
|
Rotor: pure copper wire winding, low calorific value, low loss, reduce current resistance | End cap: high-quality carbon brush/electric brush is used to increase service life and higher matching degree | |
| 100% actual photos |
|
The bearing adopts low noise and wear-resistant bearing (the bearing can be customized) | Stator: high-quality materials with high hardness, high temperature resistance, corrosion resistance, wear resistance and rust resistance are selected, and the service life is longer |

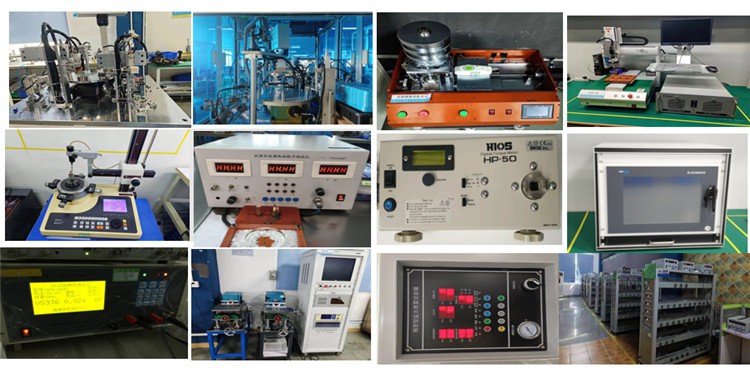

Company Strength


Product Certificate

Our Advantage
1. Powerful manufacturers, can be customized according to customer needs.
2. Price advantage, high quality and low price, has an absolute price advantage in the field of motors.
3. Strong production capacity, automatic production line, producing up to 150,000 micro motors per day.
4. Flexible operation and prompt delivery.
5. Provide technical support and after-sales service support.
Some of our partners

Application

Transport Packing

If you have special packing needs, please contact us in advance.
Buying Guides

Payment & Delivery

Caution:
This motor is not available or suitable for all models, be sure to check your specific application requirements before purchasing.
If you are replacing a motor, be sure to verify that the motor matches your size and shaft length and diameter before purchasing.
Please consult us for details, we will reply to your inquiry within 24 hours.
