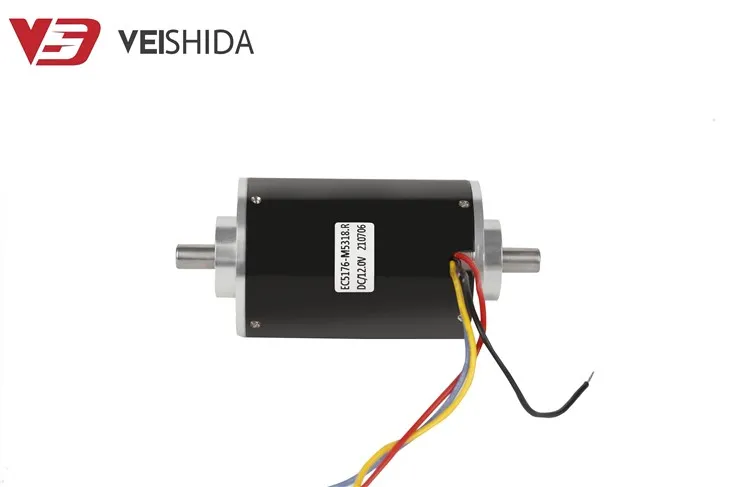

24v Double Shaft Dc Brushless Motor

Overview

Company Highlights

Supply Ability

Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight

Packaging & Delivery

Packaging Details

Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.

Port: Shenzhen / HongKong

Product Description

An average of two months to develop a new motor

Product Parameter

Product Size

Performance Curve

The above specifications are for reference only, the type and parameters of the specific high performance brushless dc motor can be customized.

Product Feature

Small size, light weight, high specific power, high reliability, simpler control system than asynchronous motors, strong overload capacity, good regenerative braking effect, can run in low, medium and high speed ranges, high torque, low noise, Stable performance, customized technical data (output shaft, leads, lead terminals, rotational speed, voltage, mounting holes, etc.)

Product Details

Our  Advantages

1. The 5176 brushless motor adopts double ball bearings, which has large axial bearing capacity, low friction, long service life, low self-heating, low noise, and relatively stable

2. Copper motor coil: The stator and rotor use fine copper coils to reduce electronic resistance, strengthen conduction and improve motor torque.

3. Silent motor: high-quality silent motor, sturdy, every link has been carefully crafted by factory professionals, and is delivered to customers after layers of inspection;

4. Double-ended output shaft: Using new technology, upper wheels or oscillators can be installed at both ends of the rotating shaft to meet special needs.

5. High-quality magnetic tile, high working efficiency, small dynamic loss, forward and reverse, adjustable speed, ready for stock;

6. Customized service: professional R&D team to meet customer's customized needs, voltage, speed, installation hole, output shaft, etc. can be customized according to customer needs

Company Strength

Product Certificate

Some of our partners

We have been committed to the motor industry for many years, covering most of the European and American markets, and look forward to becoming your long-term partner in China.

Application

Transport Packing

Shockproof foam packaging, suitable carton size.If you have special packing needs, please contact us in advance.

Buying Guides

Payment & Delivery

Assembly and combined structure requirements of brushless motor ball bearings

1. When the motor is subjected to allowable external force and vibration, it should be ensured that it is loose and separated from the shaft or bearing chamber;

2. After the motor bearing is installed, it should ensure the coaxiality with the bearing chamber, and at the same time ensure the verticality between the shaft center and the end face of the bearing chamber;

3. The shape and position tolerance of each mating surface matched with the bearing should be controlled within a certain range. After the bearing is assembled, when the temperature changes, the inner and outer rings of the bearing do not generate internal stress, and the bearing clearance is guaranteed to be within the required range;

4. Prevent undue axial thrust; when the two bearing outer rings are installed in the motor end cover and fixed axially, if undue axial thrust is generated, even if it is extremely small, the force on the steel ball will be very small. Big;

5. The axial installation of the two bearings on the brushless motor should ensure the possibility of adjusting the axial clearance
