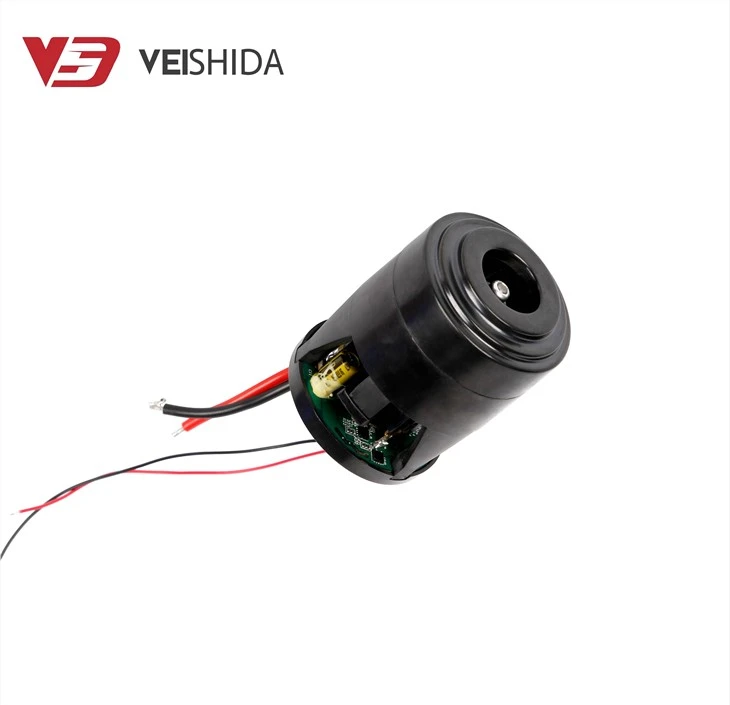

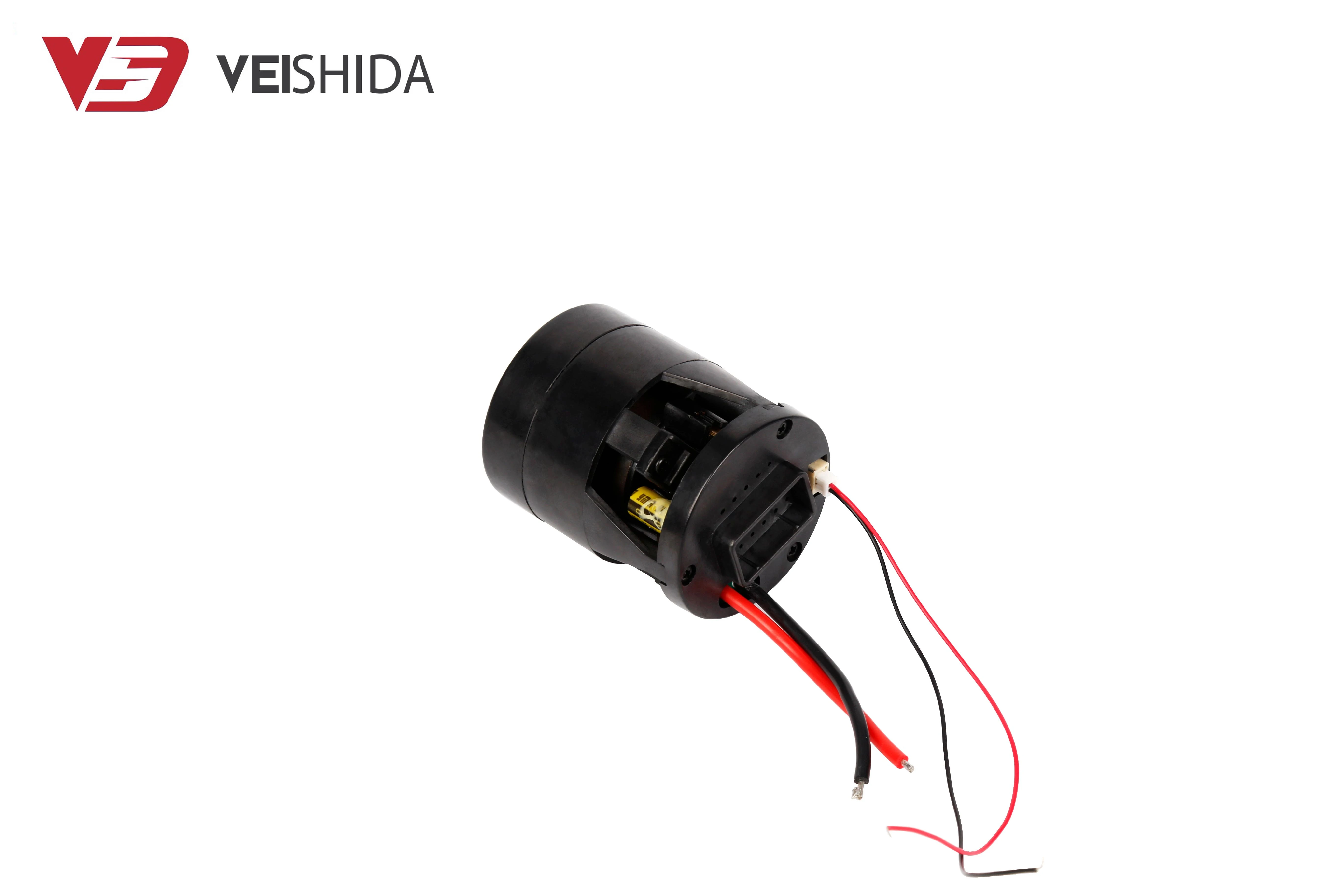

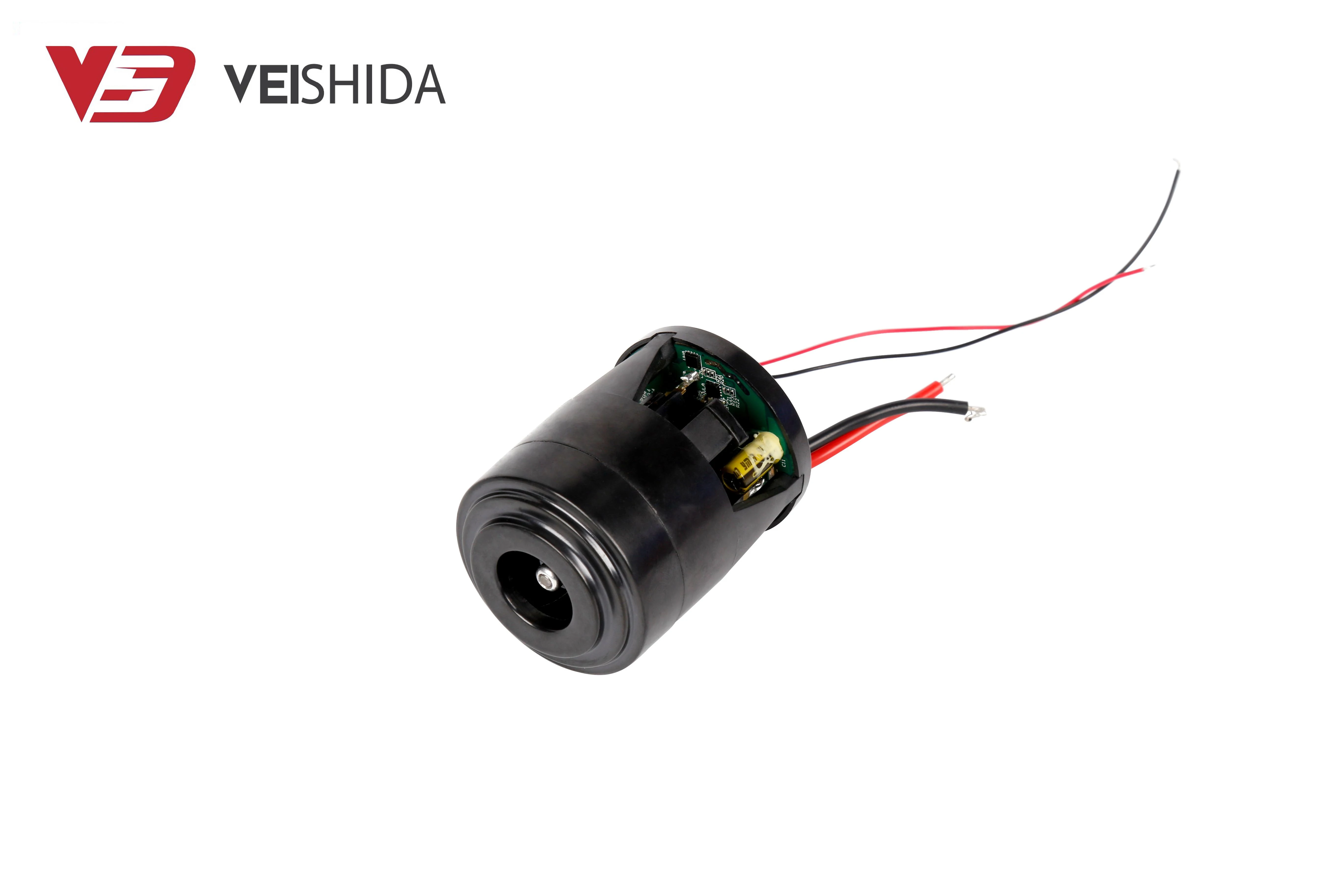

45mm DC Motor For Vacuum Cleaner
Outer diameter: 45mm,
direction of rotation: CW&CCW,
bearing: ball bearing or oil bearing,
axial clearance: 0.05-0.5mm
Widely used in medical, beauty, maternal and child health care, smart home, drones, vehicle, office, model aircraft, toy models, power tools, robots and other fields. We have 15 years of experience in micro-motor production and development, providing customers with flexible and professional customized services.
Description
The 45mm DC motor for vacuum cleaner has no brushes and commutators (or slip rings), also known as commutatorless motors, with a rated voltage of 12 volts, can run at high speeds, and has self-protection functions. With overheat protection, when the ambient temperature is unexpectedly high, the motor will automatically stop, red wire: connect to the positive pole; black wire: connect to the negative pole; blue wire: connect to GND as CW; green wire: FG signal output, 2PPR for one circle; yellow: PWM. Bearing, speed, voltage, power and other parameters can be customized according to customer needs, if you need supporting drivers, encoders, gearboxes, etc., please contact us.
Company Highlights
Overview
Warranty | 3months-1year |
Place of Origin | Shenzhen, China |
Brand Name | Vshida |
| Model | VBL-3245 |
| Usage | Smart home, sweeping robots, vacuum cleaners, model aircraft, toy models, auto parts, robots, industrial equipment, medical equipment, fitness equipment, etc. |
Type | Brushless DC Motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brushless |
Protect Feature | Customized |
Efficiency | 86% |
| Rated Voltage | 24V |
Product Name | Micro Brushless dc motor |
Direction of rotation | CW&CCW |
| Voltage range | ≤36 V |
Payment terms | 30% advance, 70% balance |
| Critificate | IATF16949 |
Customized | Acceped |
Product Description
Motor Outline
Motor Parameter
Vshida Micro Motor Company has an independent R&D team and strong R&D capabilities. It develops a variety of new motors in one month to meet customer customization needs.
Product Details
| 100% actual photos |
|
Rotor:comprised of a pure copper wire wrapped around a sturdy iron core with good heat resistance. It uses less energy and has less current resistance. | Bearings:use branded bearings to lessen motor noise; based on your requirements, you can pick between ball bearings and oil-impregnated bearings (bearings can be customized) | |
| 100% actual photos |
|
End cap:Strengthen the heat dissipation, select high-quality raw materials, prolong the service life, fix the motor rotor, and prolong the service life. | Chassis:employ premium raw materials, improve the motor rotor, expand the service life, and increase heat dissipation performance. |
Product advantages
1. Low operating voltage: The windings of Geeplus BLDC motors are designed for low supply voltage
2. High efficiency: optimized laminations minimize electromagnetic losses
3. Various flange sizes are available: 42mm, 57mm, 86mm, other sizes are available upon request
4. High flexibility with many customization options Encoders (incremental encoders, resolvers), shafts (also as lead screws for low cost linear actuators), flanges, insulation, bearings, ambient conditions
5. The 45mm DC Motor for Vacuum Cleaner can omit the hall sensor for sensorless operation, or other types of sensors can be added for higher quality speed stop or position control.
Company Strength
The Vshida Micro Motor Company uses more than 40 manufacturing lines, more than 500 production workers, and high degrees of automation to create 200,000 motors every day. Additionally, we have a strong business team that stresses quality, the demands of the customer, and technology to provide customers with flexible, knowledgeable services that are precisely customized to their needs in order to achieve win-win outcomes.
stringent quality control testing, including dependability, laboratory, noise, waterproof, life, crash, storage, and salt spray tests.
Product Certificate
Some of our partners
All motors can be customized for a variety of application domains and are created with the needs of the user in mind to guarantee that they meet your specific requirements and high standards. Contact us to get free samples.
Due to our independent R&D team, mature process design, and 15 years of motor R&D and production experience, working with us means choosing to work with a well-thought-out, high-quality manufacturer.
Application
Transport Packing
Inner packaging of foam box: 350*265*280mm
Carton outer packaging: 365*275*320mm
Weight 16.7kg/350pcs
Please get in touch with us if you require any other specific packaging needs.
Payment & Delivery
FAQ
Q: What is the price?
A: Since most motors are customized products, please contact us for an inquiry and we will give you the exact price according to your specification sheet.
Q: How do you guarantee the quality?
A: Always make samples according to the confirmed drawings. Always pre-production samples before mass production. Always 100% final inspection before shipment.
Q: Can we provide customized products?
A: Yes. You can send us drawings or samples before production, so that we can quote and make samples.
Q: Can we place sample order?
A: Yes, sample orders are always welcome to ensure our customers get qualified items. But don't worry, once you place an order in bulk, the sample fee will be refunded to you.
Q: What is the minimum quantity for mass production?
Depends on what type of motor you need. It's 100-500 normal motors. and 1000-5000 custom motors.
Q: Why should I buy from you instead of other suppliers?
A: Because we have: fast, accurate, stable is our efficient way of working. To solve customer pain points as its own responsibility. Emphasis on technology, quality and brand value.
Please get in touch with us and submit your response to your request online whenever you have additional motor needs.
