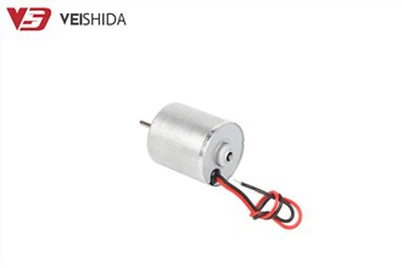

high speed bldc motor

Micro high-speed brushless motor with rated voltage of 15V, power of about 0.5W-7W, motor length: 32 mm, with high speed, high torque, low noise, long life and other characteristics, the speed can reach 20000 rpm under no load state, with connecting wire (Red wire: connect to the positive pole; black wire: connect to the negative pole; blue wire: connect to GND as CW; green wire: FG signal output, 2PPR per turn; yellow: PWM, 0-0.5V non-rotating, 0.5-4.5V speed regulation, floating or 4.5-5V full speed), mainly used for air pumps, auto parts, switchers, etc., can be customized

Overview

Warranty	3months-1year
Place of Origin	Guangdong, China
Brand Name	Vshida
Model Number	VBL-1732
Usage	Medical, maternal and child, beauty, vehicle, household appliances, communication equipment, banking equipment, office and other electronic equipment, etc.
Type	Brushless motor
Weight	TBD (different ratio different weight)
Components	Diversifed
Construction	Permanent Magnet
Commutation	Brushless
Protect Feature	Customization
Efficiency	83%
Product Name	Micro motor
Rated Voltage	15v
Rated Current	0.371(A)
Rated speed	19942 r/min
Rated torque	22.998(NM)
Certificate	IATF16949:2016
Customized	accept
Rated power	5.642(W)



Company Highlights



Supply Ability

Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight

Packaging & Delivery

Packaging Details

Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.

Port: Shenzhen / HongKong



Product Description

An average of two months to develop a new motor



Product Parameter



VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
OPERATING RANGE	NOMINAL V	SPEED r/min	CURRENT A	SPEED r/min	CURRENT A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	CURRENT A
8~18	15	19942	0.105	16363	0.480	2.647	4.535	14.748	2.195



Product Size



Performance Curve

The above specifications are for reference only, the type and parameters of the specific high speed bldc motor can be customized.



Product Details

	100%  actual  photos
Bearings: choose brand bearings to reduce motor  noise and improve service life (bearings can be  customized)		Rotor: pure copper wire winding, high-quality iron  core, high temperature resistance, reduce energy  consumption, reduce current resistance
	100%  actual  photos
Chassis: Made of high hardness, high temperature  resistance, corrosion resistance, wear resistance  and rust resistance material, longer service life		End cap: use high-quality raw materials to increase the service life, fix the rotor of the motor, and have a heat dissipation effect.



Our Advantages

1. Wide range of applications, high-speed brushless motors are widely used in air pumps, auto parts, smart home appliances, switchers and other fields;

2. Small and portable, the micro high-speed brushless motor is small in size, large in torque, light in weight, easy to carry and use;

3. High-speed and high-torque, the torque can hit 20000r/min;

4. Small and powerful, it can provide high efficiency and constant power for suspected stable operation.



Company Strength



Product Certificate



Some of our partners



Application



Transport Packing

If you have special packing needs, please contact us in advance.



Buying Guides



Payment & Delivery



FAQ

1. What payment method do you accept?

A: T/T, L/C, Western Union, Money Gram, Paypal, Secure Payment, Trade Assurance.



2. What is your product quality?

A: Our raw materials are purchased from qualified suppliers, And we have a strong quality control team to guarantee our product quality.



3. Do you accept OEM/ODM?

A: We accept both OEM and ODM projects. We have a professional technician team for designing and developing.



4. Where can I get detailed specifications regarding this product?Catalogue and price list?

A: Please contact me for details, thanks!



5. How to work with us?

A: We are very sincere to do business with you, normally, after order confirmed and deposit paid, mass production will be arranged. We'll keep you posted about status of production. When it's finished, we will arrange shipment door to door to your global office.
