BLDC External Rotor Motor
Outer diameter: 55mm (can be customized),
Axial clearance: 0.05-0.5mm,
Rated voltage: DC 2V/24V,
Rotation direction: CW CCW;
Widely used in medical, beauty, maternal and child health care, smart home, drones, vehicle, office, model aircraft, toy models, power tools, robots and other fields. We have 15 years of experience in micro-motor production and development, providing customers with flexible and professional customized services.
Description
When the BLDC External rotor Motor, the bracket is fixed with the drive plate/winding stator/winding iron core, and is fixed on the product through the threaded holes on the mounting surface, and these parts remain stationary. The shaft support is fixed with the casing and the magnetic ring to keep the rotation and output power. The outer diameter of the magnetic ring is relatively large, the inertia of the motor is large, and the torque is large. Suitable for fascia gun, deep muscle relaxation gun and other products. All technical parameters can be customized according to customer needs (speed, voltage, power, etc.).
Company Highlights
Overview
Warranty | 3months-1year |
Place of Origin | Shenzhen, China |
Brand Name | Vshida |
| Usage | Personal Care, Fascia guns, fitness equipment, paper shredders, electric bicycles, cameras, electric fans, refrigerators, air conditioners, electric doors, various types of fans, water pumps, etc. |
Type | Brushless Motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brushless |
Protect Feature | Customized |
Efficiency | 85% |
| Voltage range | ≤36 V |
Product Name | Micro Brushless dc motor |
Rated Voltage | 24V |
| Direction of rotation | CCW CW |
Payment terms | 30% advance, 70% balance |
| Critificate | IATF16949 |
Customized | Acceped |
Product Description
Supply Capacity: More than 200000 DC motors with per Day
Foam box inside dimensions are 350x265x280mm.
Dimensions of the outer carton: 365*275*320mm.
350 pieces; 16.7 kilogram
Motor Parameter

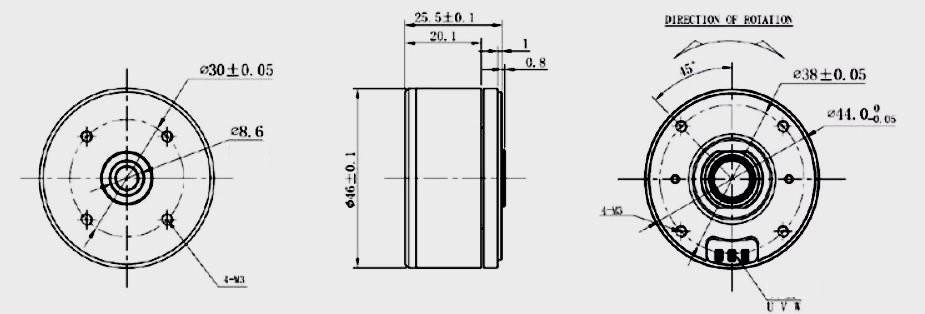

Motor Oline
In the event that the customer has any special demands, kindly contact us. We will respond to your online questions within 24 hours. All technological parameters can be adjusted to the client's requirements.
Motor Performance Curve
Product Details
| 100% actual photos |
|
Rotor:composed of a pure copper wire wrapped around an excellent iron core with exceptional heat resistance. It also uses less energy and has a lower current resistance. | Bearings:Use brand bearings, quality assurance, reduce motor noise, oil-impregnated bearings and ball bearings are available (bearings can be customized) | |
| 100% actual photos |
|
End cap:Use high-quality raw materials to increase lifespan, repair the motor's rotor, and enhance heat dissipation. | Chassis:Extend the service life, fix the motor rotor, improve the heat dissipation performance, and select high-quality raw materials. |
Description of the motor
1.Features: CW & CCW, signal function, stall protection, stepless speed regulation, low noise, low EMI, long life 3000-30000 hours
2. The BLDC External rotor Motor has a large moment of inertia, balanced rotation, large torque, easy fixation of the magnet, and strong magnetism;
3. Built-in controller with Hall effect sensor, with FG speed feedback signal;
4. Rated voltage: ≤36V, rated power: 10-150W, rated speed: 3000 rpm;
5. Wide range of applications, high-speed brushless fan drones or other types of motors, communication equipment, auto parts, home applications, medical equipment, industrial equipment, business equipment, personal care, etc.;
6. Can be customized design, provide OEM&ODM service to meet your bulk orders
Company Strength
Product Certificate
Some of our partners
Working with us means choosing to work with a well-thought-out, high-quality manufacturer due to our independent R&D team, mature process design, and 15 years of motor R&D and production experience.
Application
Transport Packing
Please get in touch with us if you require any other specific packaging needs.
Payment & Delivery
Inner Rotor Brushless DC Motor
This type of BLDC motor has a rotating part (rotor) within a solenoid (stator) assembly. This BLDC motor construction allows heat dissipation by conduction because the stator coils are mounted on the motor housing. Brushless DC motors easily reach peak speeds and are best suited for applications requiring higher speed characteristics.
Outer rotor brushless DC motor
This outer rotor BLDC motor is basically the opposite of the inner rotor brushless motor type. Also known as an outer rotor brushless motor, it uses a rotating housing around fixed internal components. Outer rotor BLDC motors typically use a higher number of permanent magnet poles on the rotor. That means more torque and smoother operation. The main disadvantage of external rotor BLDC motors is their slow speed. Therefore, these types of motors are better suited for low-speed, high-torque applications.
We will respond to your questions online whenever you require accessories like encoders, drives, gearboxes, etc., so please get in touch with us.
