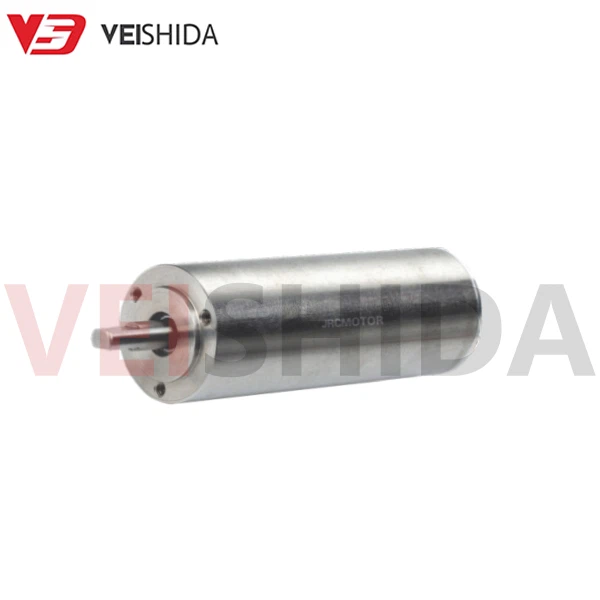

VEC-1956 12V 19mm Coreless Motor

The VEC-1956 coreless motor is a motor with excellent performance and precision design, suitable for all kinds of household appliances and industrial equipment that require high speed and high efficiency. With its excellent high speed output, low noise operation and precise torque control, the VEC-1956 has become an ideal driving source for RF radio frequency devices, laser skin rejuvenation devices, electric shavers, electric screwdrivers and other equipment. Whether in smart home appliances that need to work continuously and efficiently, or in tool equipment that requires high precision control, the VEC-1956 can provide stable and reliable power support.

Precision design and efficient output

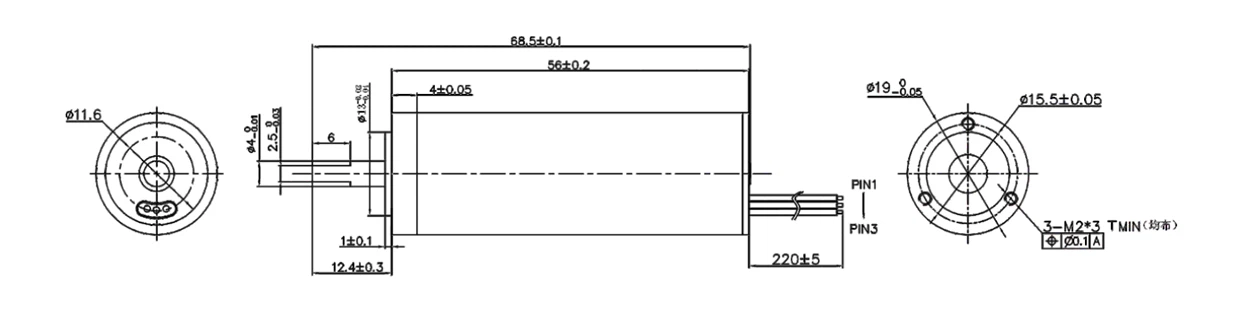

The VEC-1956 coreless motor has a diameter of 19mm and a length of 56mm. Its precise dimensions enable it to provide strong driving force in a compact space. The motor's bearing diameter is 2.5mm and the extended bearing length is 12.4mm, ensuring excellent stability at high speeds. The output lead length is 220mm, which facilitates equipment integration and installation, ensuring good electrical connection and signal transmission.

Excellent performance

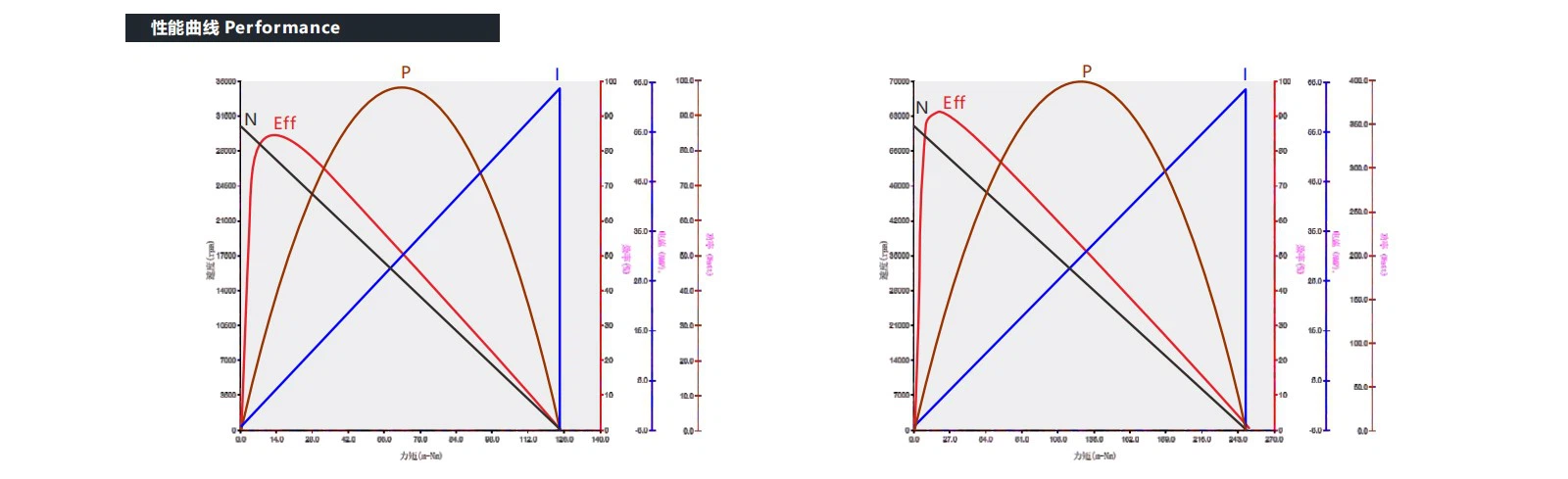

VEC-1956 provides two voltage ranges, which can provide different working performance according to different requirements. Its main specifications include:

Working voltage range: 8~14V, nominal voltage 12V

No-load speed: 30323 r/min, no-load current 0.37A

Maximum efficiency speed: 27352 r/min, maximum efficiency current 3.407A

Maximum efficiency torque: 12.288 mN.m, maximum efficiency output power 35.196W

Starting torque: 125.426 mN.m, starting current 31.368A

Whether it is continuous operation at lower voltage or high efficiency operation, VEC-1956 can provide excellent performance to meet the stringent requirements in various application scenarios.

Ultra-high speed and fast response

VEC-1956 adopts Coreless Motor design, which has extremely low inertia, quick response, and can provide precise power output during instantaneous start and stop. Its no-load speed is as high as 30323 r/min, ensuring that it can perform well in tasks that require fast response and precise control. This feature makes it widely used in electric shavers, electronic repair drills and other equipment, ensuring the efficiency and comfort of users during use.

Low noise design improves user experience

The VEC-1956 coreless motor minimizes noise output and remains quiet at high speeds, making it particularly suitable for noise-sensitive devices such as laser skin rejuvenation devices and electric shavers. Its non-cogging design ensures smooth operation, greatly reducing vibration and sound interference, and providing users with a better experience.

Highly customized to meet diverse needs

VEC-1956 provides flexible customization options. Users can customize the motor's output shaft, lead wires, terminal leads, mounting holes, speed, voltage, torque and other parameters according to their needs. This high degree of customization allows it to perfectly adapt to various equipment designs and meet the unique needs of different industry applications.

Wide range of application scenarios

With its excellent performance, VEC-1956 coreless motor is widely used in many fields, including:

RF radio frequency instrument: provides stable and accurate power output.

Laser Skin Rejuvenation Device: Quiet operation ensures a comfortable user experience.

Electric shavers, electric screwdrivers: high speed, high torque, and fast response.

Electronic maintenance drill: stable power output and improved work efficiency.

Mixers, electric grinders: high-efficiency operation ensures smooth work.

The VEC-1956 coreless motor is an ideal choice for driving various equipment with its excellent performance, efficient output and quiet operation. Whether it is home appliances, medical equipment or tool equipment, VEC-1956 can provide stable support to help your equipment improve overall performance. Contact us now to learn more about the customized solutions for the VEC-1956 coreless motor!
