VEC-1819 7.4V/24V 18mm 19mm Coreless Motor

VEC-1819 Coreless Motor : Precision Drive to Power High-Performance Applications

VEC-1819 Coreless Motor is a micro motor designed for high-efficiency requirements. It is widely used in limb rehabilitation robots, post-stroke rehabilitation robots, automatic handling robots, etc. With its excellent high speed, low noise and fast response capabilities, VEC-1819 performs well in medical equipment and precision control systems, and can provide stable and reliable power support for smart devices.

Compact design, powerful power

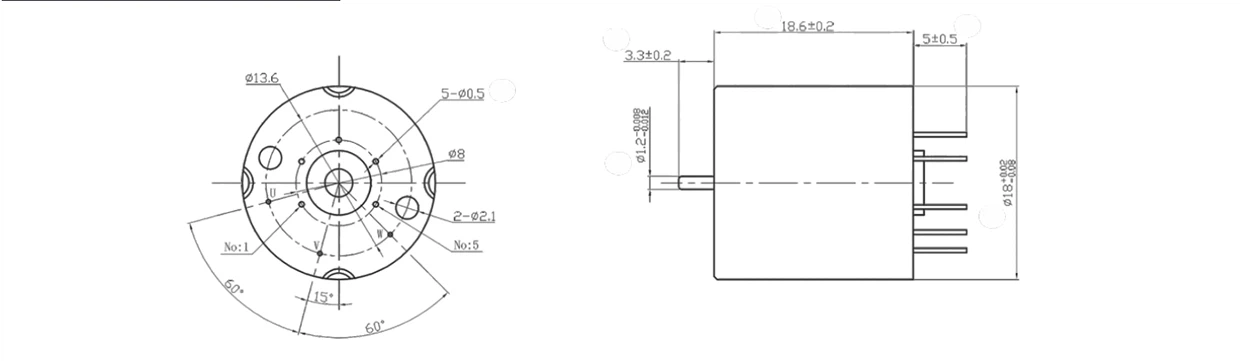

The VEC-1819 motor adopts a precision design, with a motor diameter of 18mm ±0.08mm and a motor body length of 18.6mm ±0.2mm, ensuring a compact size and high-efficiency output. Its bearing diameter is 1.2mm ±0.08mm, and the extended bearing length is 3.3mm ±0.2mm, ensuring the stability and durability of the motor at high speeds. The motor's output lead length is 123mm ±3mm, providing ample connection space for easy integration into various systems.

Adapt to various voltage requirements and meet different applications

VEC-1819 is available in two specifications, suitable for different voltage ranges, ensuring efficient driving in a variety of working environments:

Specification 1 (7.4V version)

No-load speed: 26300 r/min, no-load current 0.25A

Maximum efficiency speed: 22586 r/min, maximum efficiency current 1.52A

Maximum efficiency torque: 3.599 mN.m, maximum efficiency output power 8.512W

Starting torque: 25.482 mN.m, starting current 9.244A

Specification 2 (24V version)

No-load speed: 38233 r/min, no-load current 0.111A

Maximum efficiency speed: 33627 r/min, maximum efficiency current 1.811A

Maximum efficiency torque: 4.378 mN.m, maximum efficiency output power 15.417W

Starting torque: 36.343 mN.m, starting current 5.923A

Whether it is low voltage demand or high voltage application, VEC-1819 can provide precise and stable output to meet the driving needs of a variety of high-performance devices.

Excellent performance, comprehensive efficiency improvement

Low noise design: VEC-1819 adopts the unique design of Coreless Motor, which has low noise during operation and is suitable for applications that require a quiet environment, such as medical equipment and rehabilitation robots.

No cogging: Thanks to its coreless structure, the motor has almost no cogging at high speeds, ensuring smooth torque output and reducing vibration.

Ultra-high speed: The no-load speed can reach up to 38233 r/min, making it suitable for high-speed applications and meeting various precision control and high-speed requirements.

Fast response, low inertia: The low inertia characteristic enables the motor to respond quickly to input signals, ensuring efficient control of the equipment, which is particularly suitable for scenarios with frequent dynamic changes.

Flexible customization, perfect fit

VEC-1819 Coreless Motor provides a wealth of customization options. Users can adjust the motor's output shaft, lead wires, terminal leads, mounting holes, speed, voltage, torque and other parameters according to their needs. No matter what special needs your application scenario has, VEC-1819 can provide a tailor-made solution.

Widely used to promote intelligent development

VEC-1819 coreless motor is widely used in various intelligent devices, especially in the fields of rehabilitation medicine and automation, with unique advantages:

Limb rehabilitation robot: provides efficient power to help patients with limb rehabilitation training and enhance treatment effects.

Post-stroke rehabilitation robot: precise control and rapid response to improve the effectiveness and efficiency of the patient's rehabilitation process.

Automatic handling robot: The efficient and stable drive system enables it to perform well in the fields of industrial automation and logistics.

Electric blood collection system, trace blood testing equipment: provide precise control for medical equipment to ensure the efficiency and accuracy of each test.

Electric blood pressure measuring device: The fast-response drive system improves the accuracy of the blood pressure measuring device.

Electric grinder: provides high speed and high torque output to meet the needs of the grinding process.

The VEC-1819 coreless motor is a high-performance and high-stability precision motor suitable for a variety of demanding industries. Whether it is precision medical equipment, intelligent robots, or high-performance automation systems, the VEC-1819 can provide excellent power for your products. Contact us now to learn more about our customized services and create the perfect drive solution that best suits you!
