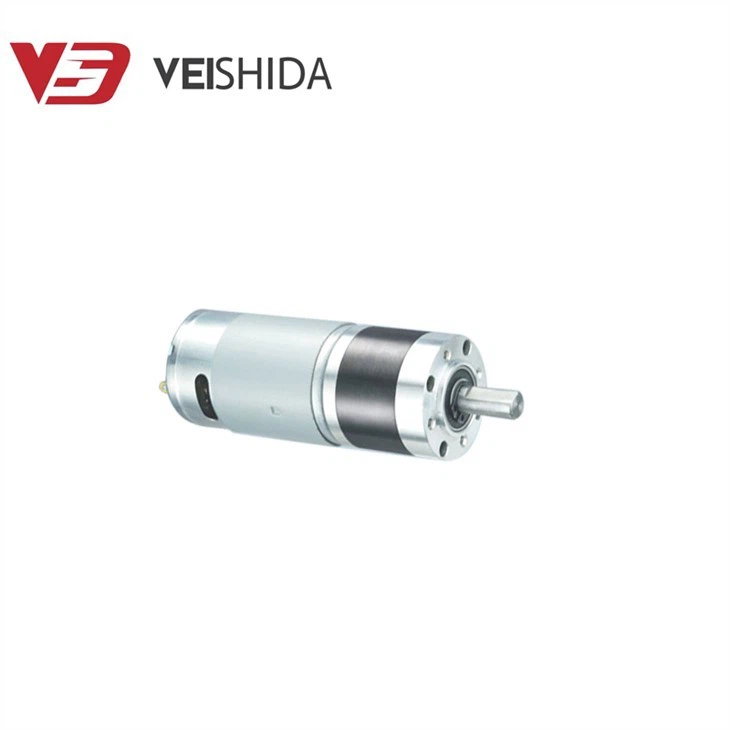

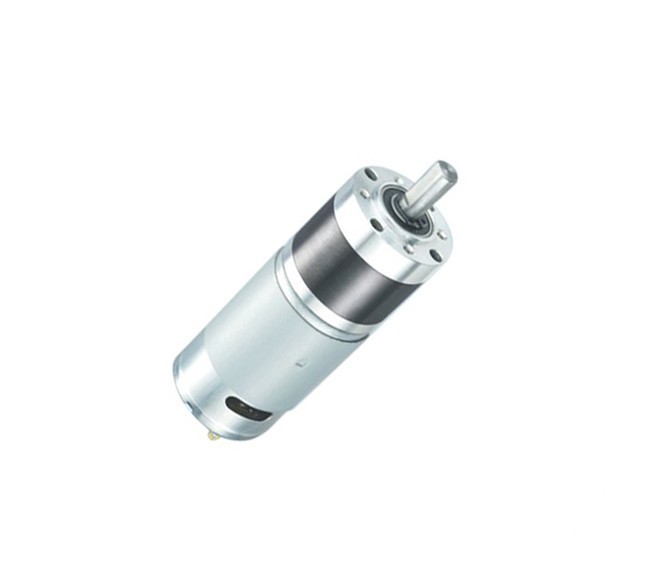

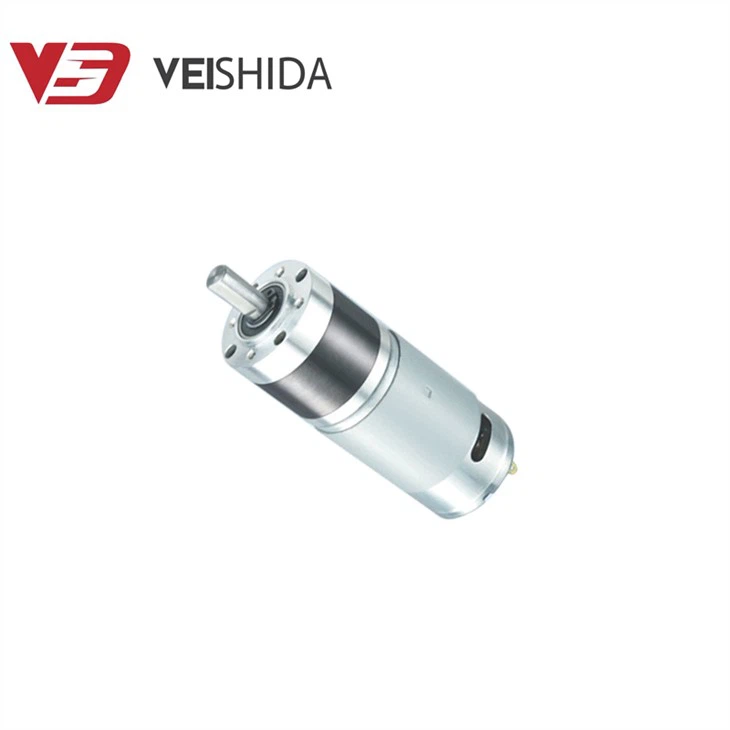

High Torque Planetary 42mm 775 Gear Motor

The High Torque Planetary 42mm 775 Gear Motor has a 36mm diameter gearbox. The motor's planetary gearbox has a reduction ratio of 26.9:1 (reduction ratio can be customized), there are 12V and 24V DC planetary geared motors, the speed range is from 10 to 1700 rpm, and the torque capacity exceeds 200 N-cm, with all gearboxes Highest continuous and peak torque capabilities of the type. They also have a very compact and lightweight design in their class. These planetary gear train motors are very popular in our robot designs. We test each motor in our laboratory to ensure their quality and performance before they leave the warehouse. to see how extreme they can take and push the limits. Provide supporting drives, encoders, gearboxes, etc., welcome to consult at any time.

Company Highlights

Overview

Product Description

With excellent research and development capabilities, we are able to meet the unique needs of our customers, which enables us to manufacture new motor models within an average of one month.

Product Parameter

Performance Curve

Motor Outline

The above information is for reference only; customers can change and adapt the actual specifications of the geared motor according to their needs.

Customized item:Speed, power, lead wire, lead terminal, and output shaft ,etc.

Product Details

Motor Description

1. To accommodate the unique design of DC motors in a variety of application fields, we have an independent R&D team;

2. High torque planetary 42mm 775 gear motor rated voltage dc 12V, CCW/CW rotation, permanent magnet construction; shaft type: D- shaft (which is adaptable to the needs of the customer);

3. High output of motors (daily output surpasses 200,000 units), automated production process, more than 50 production lines, and ability to fulfill big orders from clients;

4. The high-quality metal used to create the gear micromotor has the following qualities: high temperature resistance, wear resistance, strong bearing capacity, sturdy and durable, and long service life.

5. Selected high-quality raw materials that have undergone rigorous quality control testing, including noise testing, waterproof testing, life testing, crash testing, storage testing, and salt spray testing.

Company Strength

Vshida Micro Motor Company has a lot of other benefits in addition to having a big number of top-notch technical and management personnel, expert production research and development tools, cutting-edge production management tactics, and robust product development and manufacturing capabilities. passed the exams for ISO 9001:2015 and IATF16949:2016 certification for quality management systems. There are more than 500 employees, more than 40 manufacturing lines, and more than 300 sets of automation equipment to handle the large orders from clients.

To provide high-quality assurance for your products, all motors have completed a range of reliability tests, including noise tests, waterproof tests, life tests, impact tests, storage tests, salt spray tests, etc.

The availability of automation manufacturing tools at the company, such as automatic soldering machines, automatic winding machines, automatic stator machines, and other high-tech equipment, improves production efficiency;

Product Certificate

Some of our partners

We are delighted to work with you as a trustworthy partner in China. For gear motors, we are adamant on offering quality guarantee. We welcome your enquiry and thank you for choosing to work with us.

Why choose us?

Application

Transport Packing

Optimum carton dimensions and packaging made of shockproof foam. If you require any specific packing services, kindly contact us in advance.

Payment & Delivery

High Torque Planetary 42mm 775 Gear Motor Main Features

Strong adaptability: The motor shaft and reducer output shaft are vertically aligned, and the entire motor output is short, making it suited for a variety of situations with unique installation dimension requirements.

Rotation in the forward and reverse directions is possible thanks to the gear DC motor's ability to alter the connection between the forward and reverse directions and the shaft's direction of rotation.

Low energy consumption: Pure copper wire, which has high conductivity, low resistance, and low energy consumption, is used to wind the rotor.

Low Noise: You can enjoy a quieter environment by using high-quality metal gears and ball bearings, which can reduce operating noise.

Higher efficiency: Ball bearing reducers are used to increase speed, torque, and efficiency by reducing friction with the bearing wall.

Good impact resistance: The gears are composed of premium metal, which has a better ability to withstand impacts and a longer lifespan.

Customer service: The greatest approach to resolve issues is through communication. Contact us at any time if you have any questions. As soon as we can, we will respond and take care of the issue for you.
