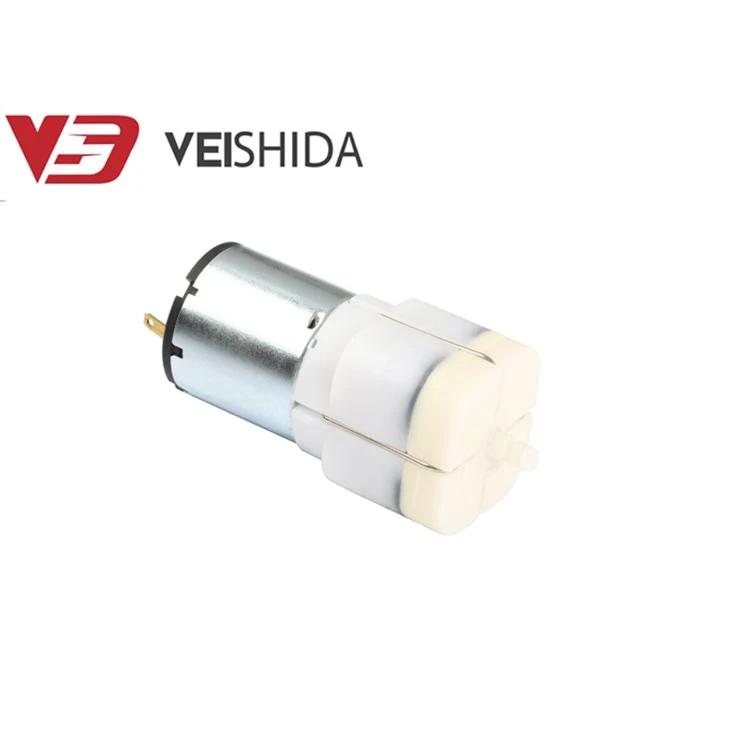

Large Flow DC Mini Electric Air Pump
Outer diameter: 32mm,
length: 65mm,
shaft extension: 8±0.5mm
Widely used in medical, beauty, maternal and child health care, smart home, vehicle, office, model aircraft, toy models, power tools, robots and other fields. We have many years of experience in micro-motor production and development, escort your products, and provide customers with flexible and professional customized services.
Description
Large Flow DC Mini Electric Air Pump cooperates with 3035 DC motor to prolong its service life, enhance air pump performance, wear-resistant and rust-proof, optional voltage (DC 3.7V, 6.0V, 12V, 24V), low noise, stable performance and wide application range , sphygmomanometer, monitor, aromatherapy machine, anti-snoring pillow, oxygen pump, pedicure machine, inflatable bed, massager, oxygen injection device, disinfection gun, etc., can customize the direction of the air nozzle (in and out), flow, pressure, motor (length, thickness, lifespan), etc.
Company Highlights
Supply Ability
Supply Ability: 200000 Piece/Pieces per Day dc motor with counterweight
Product Description
Overview
Warranty | 3 months - 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VAP-3208 |
Usage | Blood Pressure Monitor、Monitoring instrument、Aromatherapy machine、Anti-snore pillow、Oxygen pump、Foot Massage、Air Mattress、massager、Oxygen injection、Disinfection gun、Head massage instrument、Eye massage instrument、home appliances，etc. |
Type | Air pump |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Diaphragm pump |
Load Noise | ≤63dB |
Protect Feature | Waterproof |
| Leakage | ≤10mmHg/min |
| Air flow | ≥5LPM |
Rated Voltage | 6.0 V |
Rated Current | ≤800mA |
Life test | ≥400H |
| Max pressure | ≥450mmHg |
| Inflation time | ≤8S（500cc） |
| Payment terms | 30% advance, 70% balance |
Certificate | Complete |
Customized | Acceped |
Product Size
Customized items
air nozzle direction (air in and out), flow rate, pressure, motor (length, thickness, life), etc.
Product Parameter
Rated Voltage | Rated Current | Max Pressure | Air Flow | Inflation Time (0mmHg → 300mmHg) | Leakage | Noise Withload | Life test |
| DC 24.0V | ≤200mA | ≥450mmHg | ≥5LPM | ≤8S (500cc) | ≤10mmHg/min | ≤63dB | ≥400H |
DC 12.0V | ≤300mA | ≥450mmHg | ≥5LPM | ≤8S (500cc) | ≤10mmHg/min | ≤63dB | ≥400H |
DC 6.0V | ≤800mA | ≥450mmHg | ≥5LPM | ≤8S (500cc) | ≤10mmHg/min | ≤63dB | ≥400H |
| DC 3.7V | ≤2000mA | ≥450mmHg | ≥5LPM | ≤8S (500cc) | ≤10mmHg/min | ≤63dB | ≥400H |
Product Features
Large flow DC mini electric air pump is a brand new air pump with exquisite workmanship, large air output and high air pressure. The airflow is much larger than that of the 370 air pump during the power-on test. Mostly used as a high-end air pump for medical equipment, running 24 hours a day, can be customized.
Product Details
| 100% actual photos |
|
Rotor: pure copper wire winding, high quality iron core，reduce energy loss, reduce power flow resistance, low heat generation | Chassis: selected high-quality materials with high hardness, high temperature resistance, corrosion resistance, wear resistance and rust resistance,with a longer service life | |
| 100% actual photos |
|
End cap: use high-quality raw materials to increase the service life, fix the rotor of the motor, and have a heat dissipation | Made of high-quality aluminum and plastic, it is corrosion-resistant and durable. |
Our Advantage
1. The air pump product uses an internal four-cylinder, square pump head, 3035 motor (longer life) (stable operation, large air volume).
2. The motor uses a powerful magnetic carbon brush that produces a quiet sound and enough air when in operation;
3. The most common uses include oxygen injection devices, disinfection guns, foot massagers, massagers and other massage equipment, air wave pressure, home appliances, fish tank oxygen pumps, and others.
4. The DC tiny electric air pump motor's rotor uses precision winding technology, resulting in significantly increased power and a strong performance that can be used to increase the motor's operational efficiency.
5. To meet client demand, modern production techniques and automated production tools produce 200,000 micro air pumps everyday; huge orders

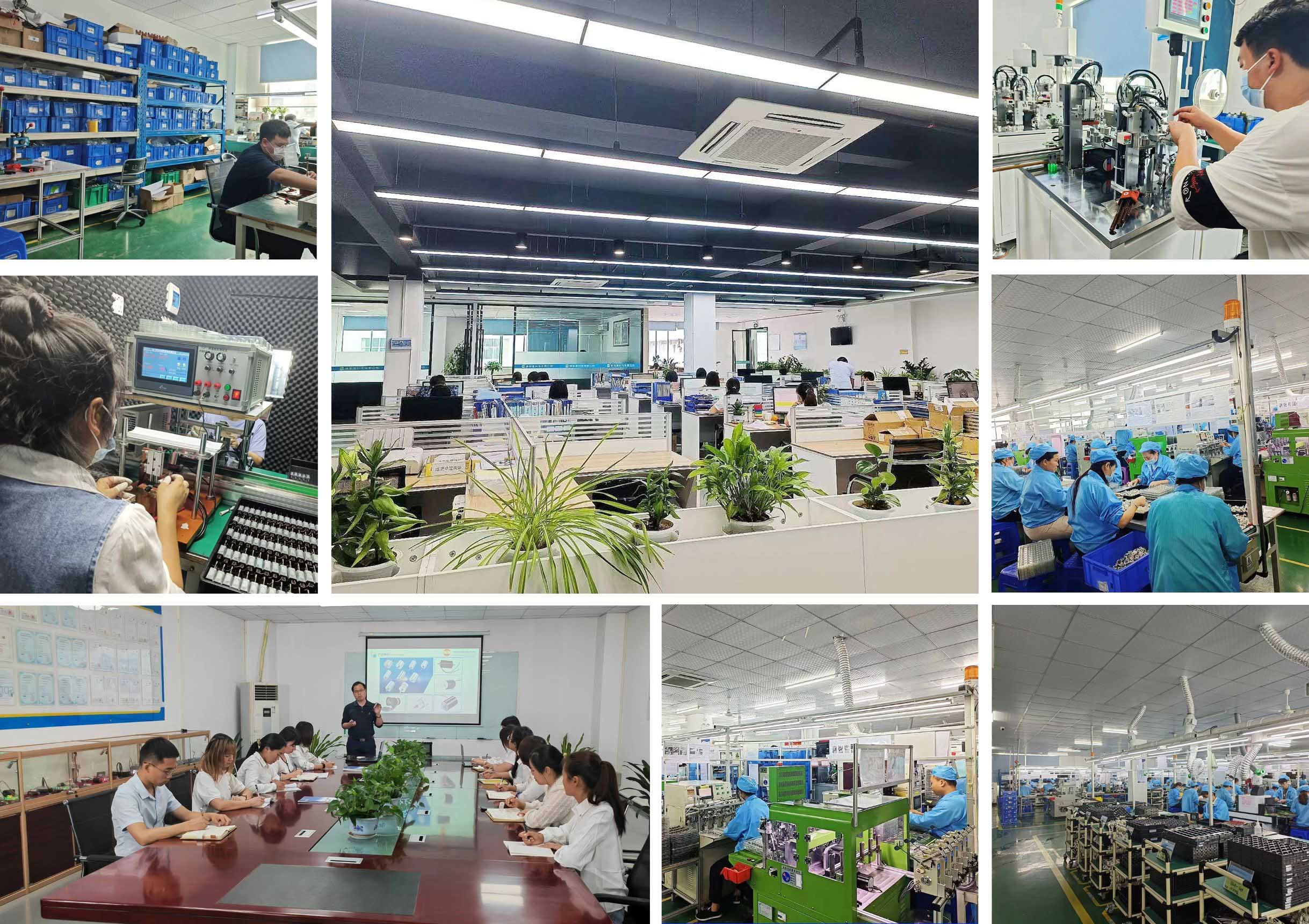

Company Strength
Laboratory and reliability tests, as well as tests for salt spray, noise, waterproofness, life, crashes, and other factors. Assurance of high quality for your air pump
Product Certificate
Some of our partners
We have been committed to the motor industry for many years, covering most of the European and American markets, and look forward to becoming your long-term partner in China.
Application
Transport Packing
Foam packing that is shockproof; appropriate carton size. Please get in touch with us ahead of time if you need special packing services.
Payment & Delivery
Note:
About customization
For customized products, please contact customer service to determine the style, size, color, etc. After communication and confirmation, the customer can confirm the delivery!
About delivery
The factory ships directly in the order mode, please provide the specifications and communicate with the customer service and reply to your delivery date.
About after-sales
All our products have undergone full inspection and strictly control the quality requirements. If you have any quality problems in the process of using our products, you can contact us at any time. If you are not satisfied with our service attitude, you are welcome to call for supervision.
