24v Carbon Brush DC Motor
Length: 38mm,
Output Shaft Length: 8±0.5mm;
Width: 29mm;
24v carbon brush dc motor are widely used in medical beauty, maternal and child health care, smart home, vehicle, office, model aircraft and other fields. We have many years of experience in micro-motor production and research and development to escort your products and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3 months - 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VRK-385SH |
Usage | Cars, Electric Bicycles, Fans, Home Appliances, Remote Control Models, Air Pumps, Water Pumps, Office Automation Equipment, ATMs, Vending Machines, Vacuum Cleaners, Unlimited Power Tools, medical equipment, car massage seats, etc. |
Type | Brushed dc motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brushed |
Protect Feature | Customizated |
Rated power | 1.899 (W) |
Rated speed | 3715 (rpm) |
Rated Voltage | 24V |
Rated Current | 0.146 A |
Rated torque | 4.881 (NM) |
Dimensions | 37.8*28.9 (mm) |
Payment terms | 30% advance, 70% balance |
Certificate | IATF16949:2016 |
Customizated | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description
An average of two months to develop a new motor
Product Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||
OPPERATING RANGE | NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
| 12-30 | 24 | 4735 | 0.040 | 3715 | 0.146 | 4.881 | 1.899 | 22.647 | 0.530 |
Product Size
Performance Curve
The above specifications are for reference only, the type and parameters of the specific carbon brush dc motor can be customized
Product Features
24v carbon brush dc motor has good starting performance and can economically realize a wide range of smooth speed regulation. The motor shaft has strong versatility, can be customized, low maintenance cost, high torque, low noise, customized technical parameters.
Product Details

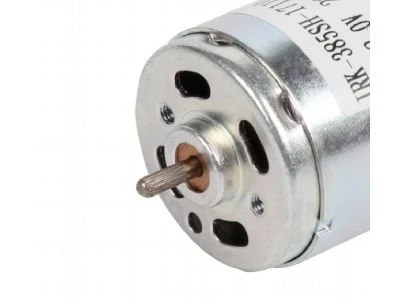

| 100% actual photos |
|
Rotor: Made of pure copper wire, high-quality iron core, low calorific value and low loss | End cup: high-quality carbon brush/electric brush is used to increase service life and higher matching degree | |

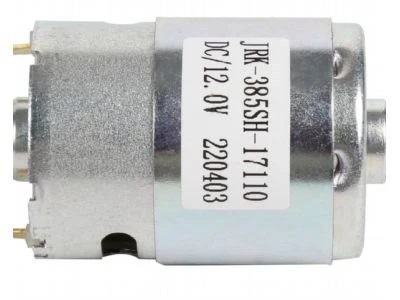

| 100% actual photos |
|
Bearings: High-quality bearings are used to reduce noise and increase service life (bearings can be customized) | Chassis: high-quality materials with high hardness, high temperature resistance, corrosion resistance, wear resistance and rust resistance are selected, and the service life is longer |
Company Strength
Product Certificate
Some of our partners
Our Advantage
1. Direct sales by manufacturers, strong production, emphasis on quality, fine service.
2. Timely delivery, meticulous workmanship and advanced technology, the delivery rate is over 95%.
3. Strong research and development capabilities, developing a new motor every two months on average.
4. Perfect after-sales service system to provide technical support for customers.
5. With more than ten years of production and R&D experience, choosing us is choosing to go with quality.
Application
Transport Packing
If you have special packing needs, please contact us in advance.
Buying Guides
Payment & Delivery
illustrate:
Because our company ships directly from the factory in the following order, please provide specifications, quantities and communicate with professional customer service to reply to your specific information such as the delivery date. All our products go through multi-layer inspection and strictly control the quality requirements. If you have quality problems during use, you can contact us at any time to ensure a satisfactory solution to you. wish you a happy life!
