Brushed DC Motor for DIY Toy
Length: 50mm,
Output Shaft Length: 8±0.5mm;
Width: 37.5mm
Brushed dc motor are widely used in medical beauty, maternal and child health care, smart home, vehicle, office, model aircraft and other fields. We have many years of experience in micro-motor production and research and development to escort your products and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3 months - 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VRK-545SH |
Usage | Automotive products, electric bicycles, automatic cruise control, vibrators, household appliances, remote control models, air pumps, water pumps, office automation equipment, vacuum cleaners, infinite power tools, medical equipment, car massage seats, etc. |
Type | Brushed dc motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brush |
Protect Feature | Customized |
Efficiency | 92% |
Rated power | 3.85 (W) |
Rated speed | 2500 (rpm) |
Rated Voltage | 24 V |
Rated Current | 0.085 (A) |
Rated torque | 19.24 (NM) |
Max power speed | 1912 r/min |
Dimensions | 54*37.8(mm) |
Payment terms | 30% advance, 70% balance |
Certificate | TS16949 |
Customizated | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description
An average of two months to develop a new motor
Product Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||
OPPERATING RANGE | NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
| 4.5-12 | 12 | 24000 | 1.300 | 20512 | 7.646 | 31.077 | 66.755 | 213.852 | 44.968 |
| 12-32 | 24 | 3600 | 0.07 | 3008 | 0.356 | 17.62 | 5.55 | 107.166 | 1.808 |

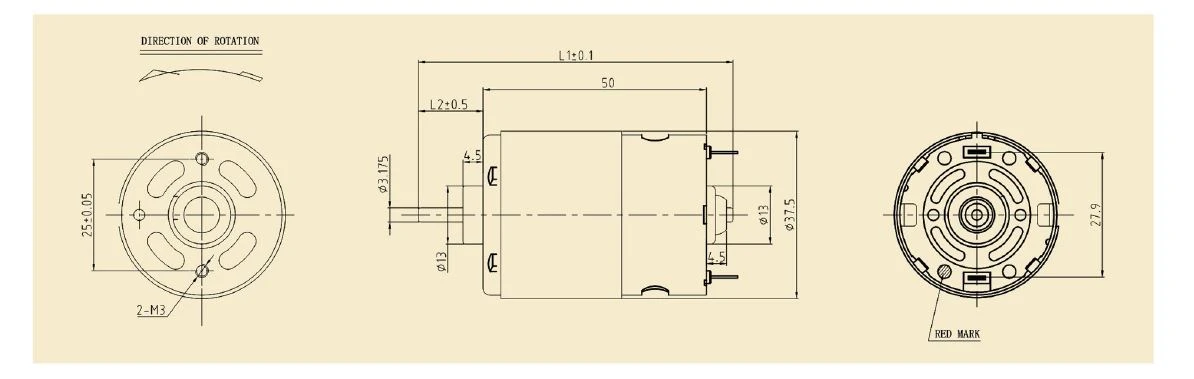

Product Size

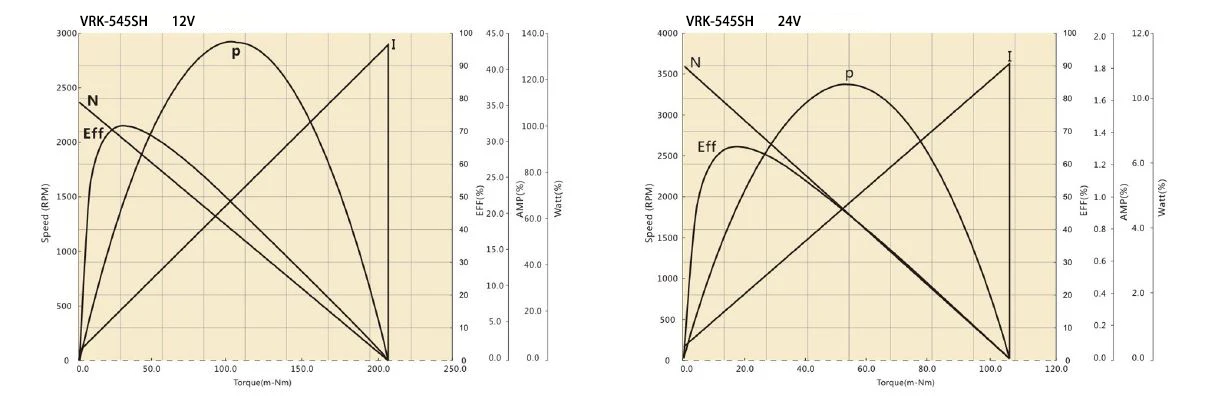

Performance Curve
The above specifications are for reference only, the type and parameters of the specific brushed dc motor can be customized
Product Features
Brushed DC motor for DIY toy are used in water pumps, air pumps, hair dryers, massagers, vibrators, automatic cruise control and other fields. The motor has stable performance, high efficiency and good mute effect, and can be customized.

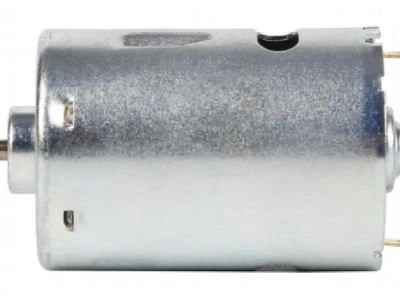

Product Details
| 100% actual photos |
|
End cap: use high-quality carbon brushes/electric brushes to increase the service life and make the matching degree higher | The bearing adopts low noise and wear-resistant bearing (Bearings can be customized) | |
| 100% actual photos |
|
Rotor: pure copper wire winding, high quality iron core, low heat generation and low loss | Chassis: selected high-quality materials with high hardness, high temperature resistance, corrosion resistance, wear resistance and rust resistance, with a longer service life |

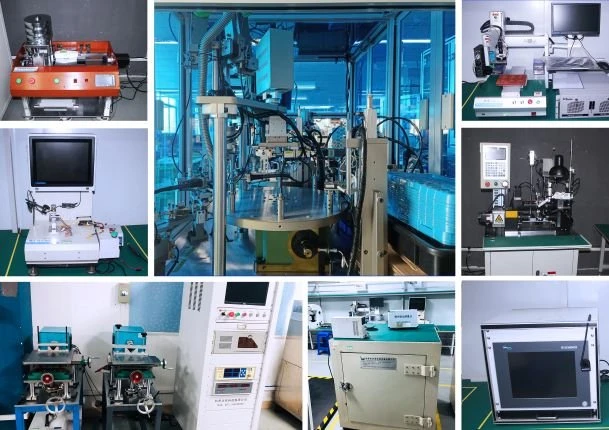

Company Strength
Our Services
1. 545SH brushed DC motors are widely used in household appliances, water pumps, air pumps, automotive products, automatic cruise control, vibrators, massagers and other fields;
2. The brushed motor benefits from high torque and low noise, and is made with emerging technology, and the motor structure is sturdy.
3. This motor is suitable for most high torque applications.
4. High efficiency, automatic production process, improve production efficiency.
5. Professional service. We have more than 20 international trade sales staff, providing flexible and professional services.
Product Certificate
Some of our partners
Application
Transport Packing
If you have special packing needs, please contact us in advance.
Buying Guides
Payment & Delivery
Note: All our products are subject to multi-layer inspection and strictly control the quality requirements. If you have any quality problems during use, you can contact us at any time, our company promises to give you a reasonable solution, I wish you a happy life!
