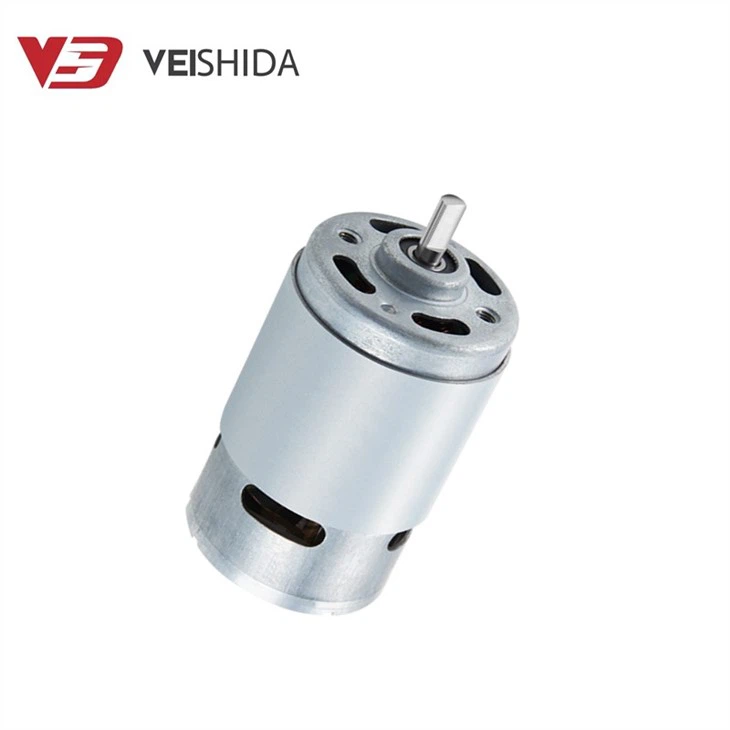

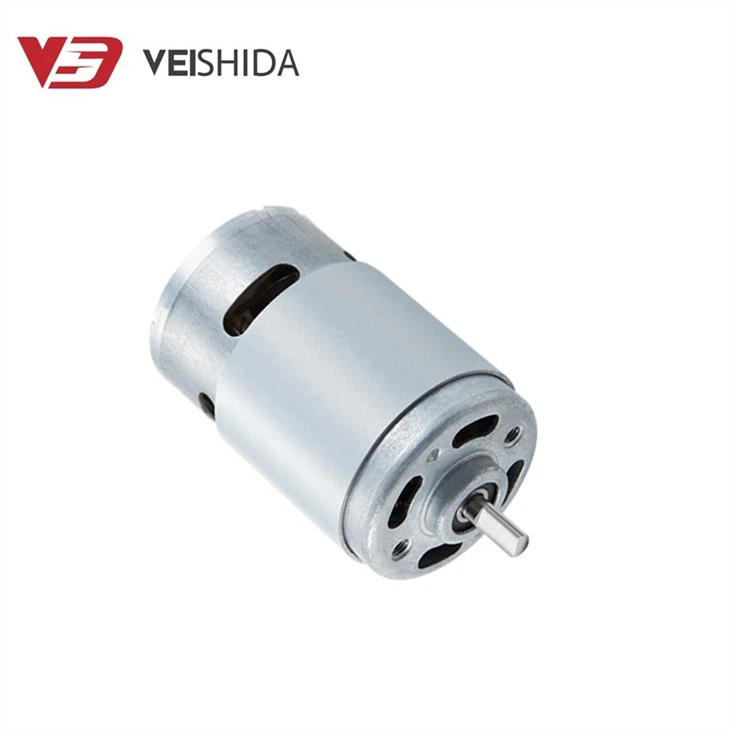

775 DC Motor

775 DC Motor shaft diameter: about 5mm; Body length: approximately 66 mm; Front step diameter: about 17.6mm; Front high-rise: about 4.5mm; Body diameter: about 42mm; Total length of motor: about 98mm; Diagonal installation spacing: about 28.8mm; Mounting hole size: M4; Mounting holes: 2; Rated voltage: 12-24V; Rated current: 0.32 A; Rated speed: 21000 rpm; Rated power: 60W; Adopt pure copper wire winding, low heat generation, low loss, double ball bearing design. With cooling fan. Low noise, smooth operation. Suitable for electric tools, electric screwdrivers, electric fan toys, juice machines, paper shredders, vacuum cleaners, etc., can be customized according to customer needs.

Company Highlights

Overview

Warranty	3months-1year
Place of Origin	Shenzhen, China
Brand Name	Vshida
Model	VRK-775
Usage	Electric tools, electric screwdrivers, electric fan toys, juice machines, paper shredders, vacuum cleaners, etc.
Type	Brush DC Motor
Weight	TBD (different ratio different weight)
Components	Diversifed
Construction	Permanent Magnet
Commutation	Brushed
Protect Feature	Customized
Efficiency	78%
Voltage range	≤36V
Product Name	Micro Motor
Rated Voltage	12 V
No load Speed	10000±10%rpm
No Load Current	0.6A
Body length	66 mm
Front step diameter	17.6 mm
Total length	98mm
Shaft Diameter	5mm
Payment terms	30% TT as deposit,70% TT balance before delivery
Critificate	IATF16949
Customized	Acceped

Product Description

We have a research and development team that invests fixed funds every year to develop new projects. The development of new motors takes a short time and is highly efficient.

Product Parameter

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
OPPERATING RANGE	NOMINAL V	SPEED r/min	CURRENT A	SPEED r/min	CURRENT A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	CURRENT A
10-14	12	8022	0.268	6982	1.800	43.32	31.671	334.19	12.086
16-26	18	3329	0.212	2813	1.155	32.877	9.684	212.062	6.297

Motor Outline

Motor Performance Curve

The above motor parameter information is for reference only, and specific data can be adjusted and designed according to customer needs. Voltage, rotational speed, power, bearings, protection functions, leads, lead terminals, output holes, etc. can be customized; Contact me to obtain samples for performance testing.

Product Details.

	100% actual photos
Adopt pure copper wire winding, low heat generation, low loss, fast speed, small size, reduce energy consumption, and reduce current resistance.		Selected high-quality raw materials, with good gloss and simplicity, are used to fix and support the rotor, ensure the clearance between the rotor and stator, and drive the rotor to rotate.



About This Item

1. Copper core rotor motor, good conductivity, fast heat dissipation, type: DC brush motor; Rated voltage: 12V; Rated power: 80W; Shaft diameter: about 5 mm/0.1 inch; Rated current: 0.5-0.6A; Diameter: 41mm; Body length: 67mm; Shaft length: 16 mm;

2. The torque DC motor made of metal is lightweight, wear-resistant, and sturdy, making it durable and reliable even if used for a long time

3. Featuring low noise, high speed, high efficiency, and low resistance, lightweight and compact 12v to 24V 775 DC motors can be used as a good substitute for old or damaged gear motors

4. With strong bearing capacity, high temperature resistance, wear resistance, and robustness, it effectively protects the main body of the worm gear reduction motor

5. Ideal for toy DIY, massage equipment, game equipment, game controllers, mobile phones, electric roller shutters, electric toys, electric tools, electric screwdrivers, electric fan toys, juice machines, paper shredders, vacuum cleaners, etc

Company Strength

Vshida Micromotor Company produces 200000 motors per day, using more than 40 production lines, more than 500 production personnel, and high-level automation equipment. Our main products include: brush motors, brushless motors, speed reduction motors, coreless motors, hub motors, airsoft motors, micropumps (water pumps, air pumps, vacuum pumps, etc.). We also have a solid business team that places quality, customer needs, and technology first, providing customers with adaptive and efficient services to create win-win results. The company continues to introduce high-quality, high-performance, and high-efficiency products, which have won the praise and trust of many customers. Currently, the company has become one of the leading enterprises in the domestic motor industry. In the future, we will continue to work hard to provide customers with more high-quality products and services.

All motors in our factory undergo a series of quality and performance tests before being sent to customers to ensure that the products produced meet their needs, reducing customer losses to a certain extent at the source, and improving production efficiency through automated production equipment to meet customer orders in large quantities.



Product Certificate

We have passed multiple international certifications and patent certificates, and have strong product development and production capabilities. It has passed the certification of ISO 9001:2015 quality management system and IATF16949:2016 quality management system. Meet the different needs of customers for certificates.

Some of our partners

With our continuous efforts, we have become a supplier of electric motors for multiple internationally renowned brands, and have established good and stable cooperative relationships with them. We look forward to becoming your partner in China and conducting negotiations and factory inspections for business transactions.

Application

We have 15 years of experience in the production and development of micro motors, providing customers with flexible and professional customized services. The design of each motor takes into account user requirements and high standards. Widely used in medical, beauty, maternal and child health, smart home, unmanned aerial vehicles, automobiles, offices, aircraft models, toy models, electric tools, robots, and other fields.

Why choose us?

Transport Packing

Delivery: Generally, the production will be completed within 10-15 working days. The specific delivery time depends on the production season and quantity. We use standard cartons with foam packaging to ensure that the product is damaged. If there is any other packaging demand, please contact us.

Payment & Delivery

The meaning of the 795/775 DC Motor number

The 775 and 795 motors are a common type of brushless DC motor, and their digital identification indicates the following meanings:

The first digit (7) represents the diameter of the motor, in units of 1/10 inch. Therefore, the diameters of the 775 and 795 motors are 7.75 inches and 7.95 inches, respectively

The second digit (7 or 9) indicates the length of the motor in units of 1/100 inch. Therefore, the length of the 775 and 795 motors is 7.5 inches and 9.5 inches, respectively

The third digit (5) represents the motor series, and different series represent different characteristics and uses

The fourth digit indicates the version number of the motor. Different versions of the motor may have different performance and parameters

775 and 795 motors produced by different manufacturers may have different version numbers and parameters, so it is necessary to carefully check when using these motors
