24mm Micro Precious Metal Brush Motor
Outer diameter: 24mm,
length: 19mm,
Output shaft length: 6.6±0.3mm,
axial clearance: 0.05-0.35mm
24mm Micro Precious Metal Brush Motor are widely used in medical, beauty, maternal and child health care, smart home, vehicle, office, model aircraft, toy models, power tools, robots and other fields. We have many years of experience in the production and development of micro-motors, escort your products, and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3 months - 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VRK-320C |
Usage | Medical equipment, breast pump, water pump, air pump, smart home, industry, fitness equipment, robot, model aircraft, toys, drone, etc. |
Type | Brushed dc motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brush |
Protect Feature | Customizated |
Efficiency | 80% |
Rated power | 0.1-2.0 (W) |
| No load current | ≤100 mA |
No load speed | 4500±8% (rpm) |
Rated Voltage | 12 (V) |
| load speed | 2400±8% rpm |
| load current | ≤200 mA |
Start Voltage | ≤3.0 V |
| Start torque | ≥20g-cm |
| Bearing | Ball bearing or oil-impregnated bearing |
Dimensions | 24.4*19 (mm) |
Payment terms | 30% advance, 70% balance |
Certificate | IATF 16949 2016 |
Customizated | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description
An average of two months to develop a new motor
Product Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||
OPERATING RANGE | NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
4-8 | 6 | 8396 | 0.077 | 6607 | 0.284 | 1.342 | 0.928 | 6.295 | 1.05 |
| 10-14 | 12 | 4373 | 0.019 | 3341 | 0.062 | 0.999 | 0.350 | 4.234 | 0.199 |

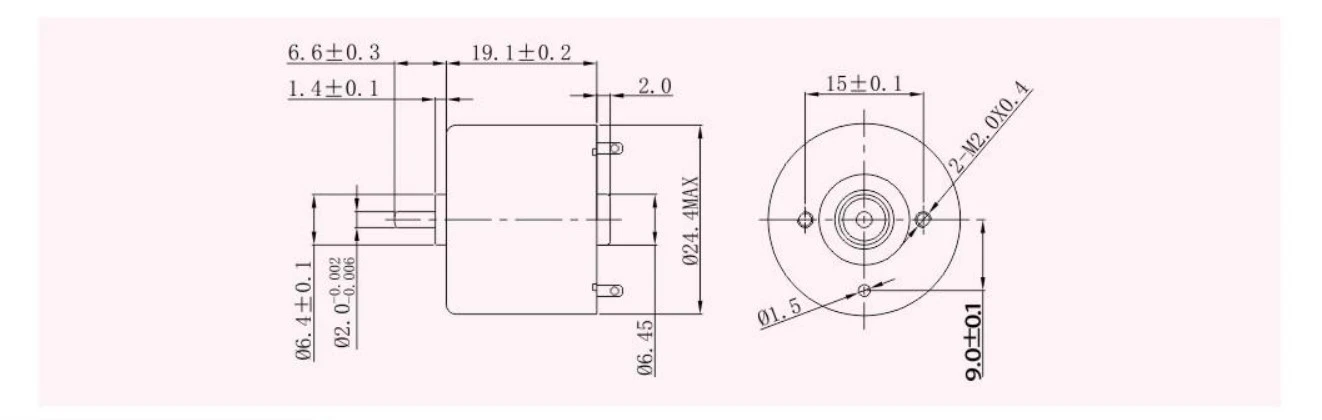

Product Size
Performance Curve
The above specifications are for reference only, the type and parameters of the specific precious metal brush dc motor can be customized
Product Features
Strong conductivity, low power consumption, low noise, high efficiency, easy to use, small size, stable speed change, low temperature rise, high reliability, simple structure, mature technology, fast response speed, customized technical data (output shaft, speed, Voltage)
Product Details
| 100% actual photos |
|
Rotor: pure copper wire wound, high-quality iron core, high temperature resistance, reduce energy loss, reduce current resistance | End cap: high-quality carbon brushes/electric brushes are used to increase the service life and have a higher matching degree | |
| 100% actual photos |
|
Bearing: choose brand bearing, quality is guaranteed (bearing can be customized) | Chassis: choose high-quality materials with high hardness, corrosion resistance, wear resistance and rust resistance, and have a longer service life |
Our Advantage
1. No-load speed of this 320C precious metal brush DC motor: 8000RPM, no-load current: 0.077A, power: 0.1-2W, working voltage: DC 4-14V, output shaft, speed, voltage, etc. can be customized according to customer needs. .
2.12v micro brush motor is suitable for water pump, air pump, breast pump, household appliances, medical equipment, massager, vibrator, automotive products, automatic cruise control, etc.
3. It can be operated in both directions, just reverse the polarity of the power supply. With welded eyelets for easy connection. Has 2 threaded mounting holes.
4. The production process is automated and the production efficiency is high. The daily output of motors reaches 200,000 units, which can meet your large-scale orders. If the order is urgent, we can work overtime for you free of charge.
5. The proofing time for conventional models is 3-5 days, and the development and proofing time for new models is 25 days. The professional R&D team can meet your customized needs, and the delivery accuracy rate is 95%. It is a rare partner for the majority of manufacturers.
Company Strength
Product Certificate
Some of our partners
We have been committed to the motor industry for many years, covering most of the European and American markets, and look forward to becoming your long-term partner in China.
Application
Transport Packing
Shockproof foam packaging, suitable carton size.If you have special packing needs, please contact us in advance.
Buying Guides
Payment & Delivery
Special attention
When the motor is working, pay attention to the working environment and do not be in a state of too much bumps to prevent the motor from being damaged or reducing its service life. Visual inspection is also required to check whether the fan works normally, whether there is abnormal vibration, whether the coupling connection is reliable, whether the base is fastened, whether the bearing works normally (listen to the sound), whether the temperature is normal (infrared thermometer), and whether the current is Normal (clamp-type ammeter), in addition, the carbon brush and slip ring of the wound motor must be checked.
