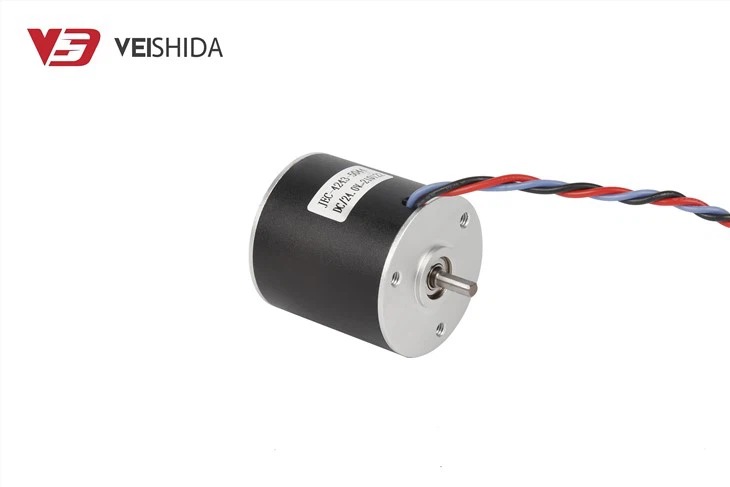

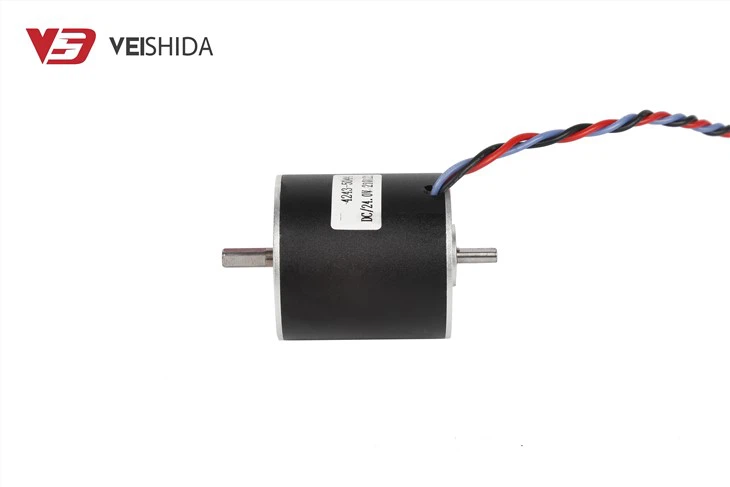

42mm DC 24V Brushless Motor
Diameter: 42mm,
Length: 43mm,
output shaft length: 14±0.3mm
42mm DC 24V brushless motor are widely used in medical, beauty, maternal and child health care, smart home, vehicle, office, model aircraft, toy models, power tools, robots and other fields. We have many years of experience in the production and development of micro-motors, escort your products, and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3months-1year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VBL-4243 |
Usage | Power tools, medical equipment, fitness equipment, robots, micro pumps, office equipment, banking communication equipment, smart home appliances, personal care, maternal and child health care, vehicle, model aircraft, micro valves, toys, instruments, etc. |
Type | BLDC motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brushless |
Protect Feature | Customized |
Efficiency | 86% |
| Voltage range | 8-24 V |
Product Name | Micro motor |
Rated Voltage | 24.0 V |
Starting Current | 5.877 A |
| Test humidity | 45%-75% |
| Test temperature | 20℃±2℃ |
| Rated speed | 8000±10% r/min |
Starting torque | 178.63 mN.m |
Payment terms | 30% advance, 70% balance |
Dimensions | 42*43（mm） |
| Critificate | ROHS |
Customizted | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description
An average of two months to develop a new motor
Product Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||
OPERATING RANGE | NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
8~16 | 12 | 5919 | 0.274 | 4891 | 1.305 | 22.05 | 11.296 | 126.97 | 6.207 |
| 18~26 | 24 | 8176 | 0.187 | 6938 | 1.048 | 27.04 | 19.647 | 178.63 | 5.877 |

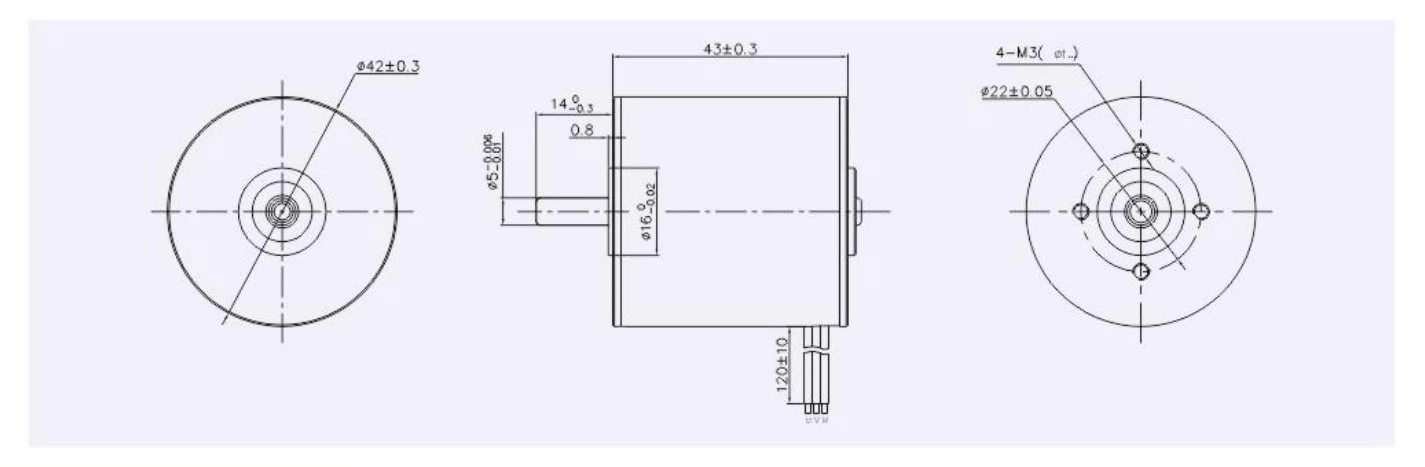

Product Size
Customized items:
Output shaft, speed, voltage, leads, lead terminals, mounting holes
If you need other customized items, please contact us, we guarantee to reply your inquiry within 24 hours.
Performance Curve
The above specifications are for reference only, the type and parameters of the specific micro brushless dc motors can be customized.
Product Feature
Anti-bump vibration, low noise, small vibration, smooth operation, long life; no sparks, explosion-proof, high torque, high efficiency, wide speed range, strong overload capacity, large starting torque, low starting current, stable performance , custom technical data
Product Details
| 100% actual photos |
|
Rotor: pure copper wire wound, high-quality iron core, high temperature resistance, reduce energy consumption, reduce current resistance | Bearings: choose brand bearings to reduce motor noise and ensure quality (bearings can be customized) | |
| 100% actual photos |
|

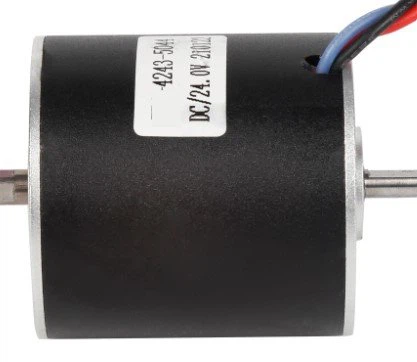

End cap:use high-quality raw materials to increase the service life, fix the rotor of the motor, and have a heat dissipation effect. | Chassis：High-quality materials with high hardness, high temperature resistance, corrosion resistance, wear resistance and rust resistance are selected, and the service life is longer |
Competitive Advantage
1. Powerful factory, strong R&D capability
2. Strong productivity, the daily output of motors exceeds 200,000 units
3. High quality assurance and professional service, prompt delivery
4. Perfect pre-sale, in-sale and after-sale service system
5. Provide OEM and ODM and customized services
Company Strength
Product Certificate
Some of our partners
We have been committed to the motor industry for many years, covering most of the European and American markets, and look forward to becoming your long-term partner in China.
Application
Transport Packing
Shockproof foam packaging, suitable carton size.If you have special packing needs, please contact us in advance.
Buying Guides
Payment & Delivery
Daily maintenance of brushless DC motor:
1. Familiar with the structural characteristics and maintenance technical requirements of brushless DC motors.
2. Check the temperature, sound, vibration, etc. of each part of the motor in detail, and test the voltage, current, speed, etc., and make a record.
3. Blow off the dust on the surface of the motor with compressed air, and wipe the dirt on the surface of the motor.
4. Cut off the power supply, remove the external wiring of the motor, use a suitable megohmmeter to test the insulation resistance of the motor, and make a record.
Our company provides OEM/ODM and customized services, professional R&D team to meet your customized needs, the delivery accuracy rate is 95%, welcome your inquiry.
