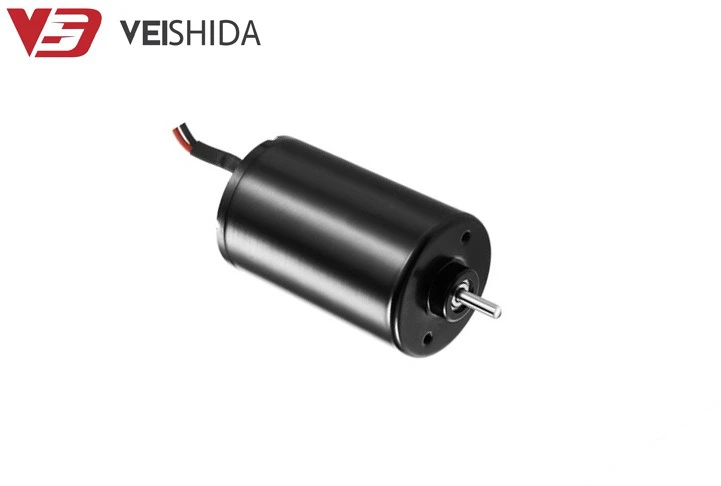

small brushless dc motor

VSD's small brushless dc motor is a central driving force in modern equipment due to its efficient and reliable design. Using pure copper coils and a high-quality iron core, the motor significantly reduces energy consumption and heat output efficiency while ensuring electrical conductivity and strength. The motor shell is made of high-quality aluminum with excellent corrosion and rust resistance, which is suitable for long-term and efficient operation. The built-in drive circuit and front and rear ball bearings further ensure the stability and precise control of the equipment.



In addition, the VSD small brushless dc motor supports OEM/ODM customization and, combined with the automated production equipment, provides a flexible and efficient solution for high-volume applications. The motor helps improve the overall performance of a product, making it ideal for a wide range of applications in industrial, medical, or consumer electronics applications.



The best-selling products of VSD small brushless dc motor:



Product 1:

Model number:	VBL-3657
Typical applications:	Hair dryers, electric shavers
Main hot spot:	High quality, low noise
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
8~16	12	4712	0.16	3775	0.645	11.45	4.530	57.63	2.598
18~26	24	4939	0.11	4093	0.532	19.85	8.511	115.91	2.574



Brushless motor design:

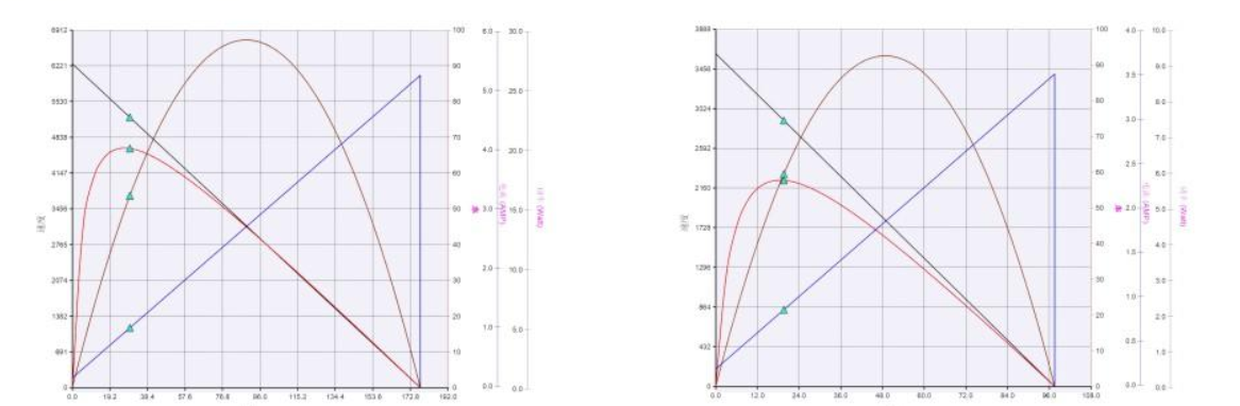

Motor performance：





Product 2:

Model number:	VBL-1732
Typical applications:	Auto parts, drones, electric drills
Main hot spot:	High torque, low noise, ultra-long life
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
8~16	12	13172	0.11	9797	0.319	0.978	1.003	3.817	0.927
18~26	24	25426	0.084	20189	0.322	1.467	3.102	7.123	1.242



Brushless motor design:





Motor performance：





Product 3:

Model number:	VBL-2430
Typical applications:	Surgical instruments, medical blenders, small appliances
Main hot spot:	Compact, miniature, high efficiency
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
8~16	12	5534	0.115	4367	0.430	6.00	2.748	28.49	1.611
18~26	24	8035	0.091	6513	0.389	8.24	5.626	43.54	1.667

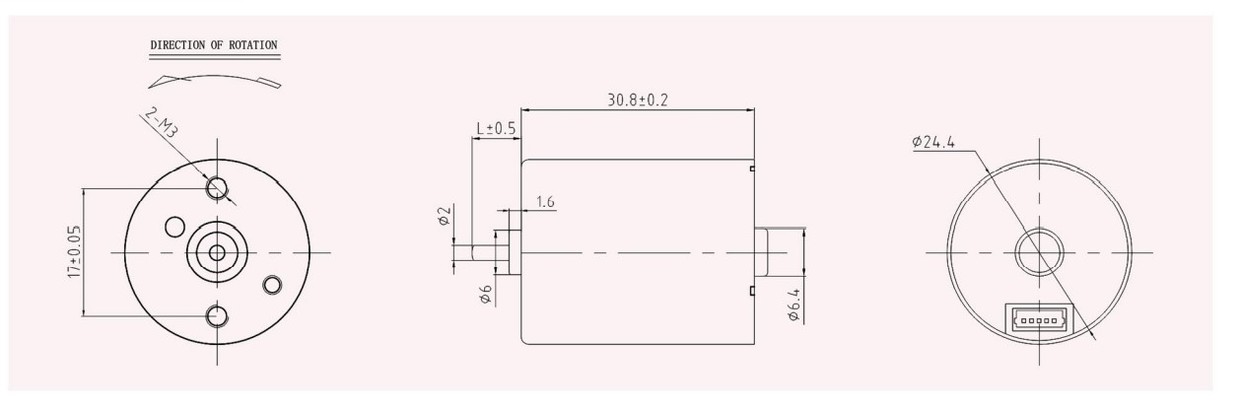

Brushless motor design:

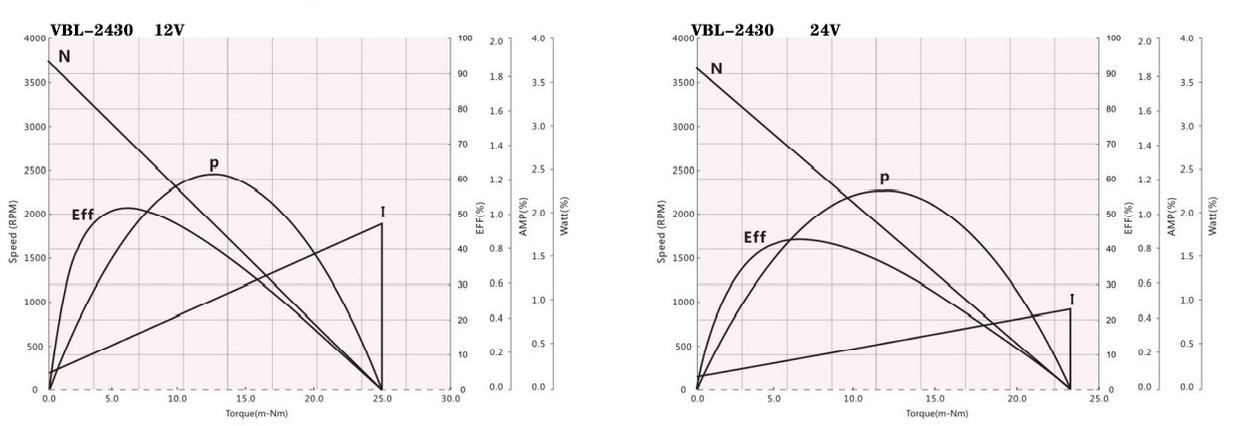

Motor performance：





Product 4:

Model number:	VBL-3640
Typical applications:	Electric shavers, fans, coffee machines
Main hot spot:	High power, precision, compact
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
8~16	12	1598	0.073	1177	0.204	8.794	1.084	33.354	0.569



Brushless motor design:





Motor performance：





Product 5:

Model number:	VBL-4321
Typical applications:	Projectors, ATMs, vending machines
Main hot spot:	Ultra-long life, compact, low noise
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
8~16	12	3687	0.198	3120	1.091	28.35	9.266	184.53	6.007
18~26	24	6197	0.164	5399	1.135	37.26	21.068	295.26	7.856

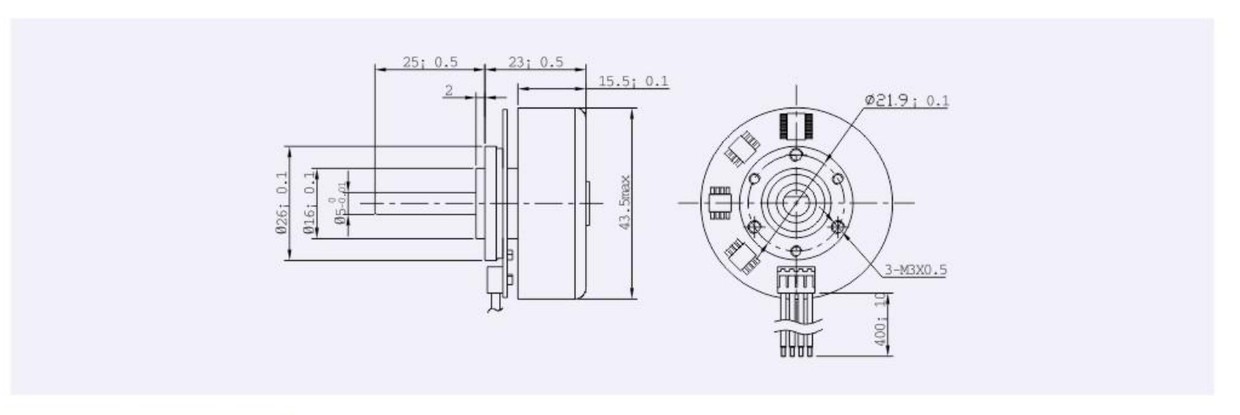

Brushless motor design:





Motor performance：





Product 6:

Model number:	VBL-5176
Typical applications:	Copiers, centrifuges, air compressors
Main hot spot:	High power, high torque, mini
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
8~16	12	3318	0.661	2729	3.064	86.57	24.745	488.03	14.208
18~26	24	3572	0.351	3017	1.906	105.46	33.315	678.21	10.353

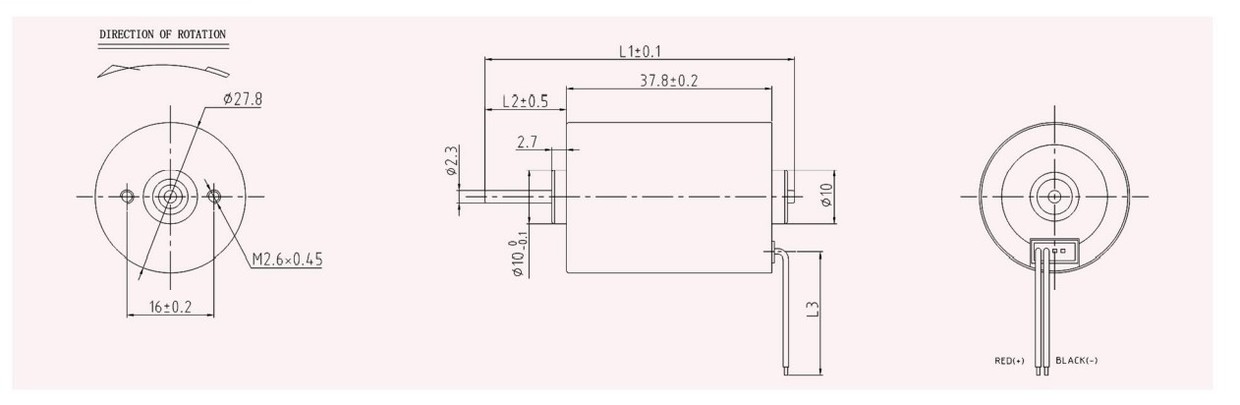

Brushless motor design:





Motor performance：





Product 7:

Model number:	VBL-2838
Typical applications:	Hair clippers, cordless drills
Main hot spot:	High speed, mini , Double ball bearings
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
8~16	12	3044	0.096	2294	0.293	7.59	1.825	30.81	0.897
18~26	24	6133	0.132	4879	0.513	13.36	6.826	65.32	1.997



Brushless motor design:



Motor performance：



Why choose VSD's small brushless DC motor (take VBL-3657DI as an example)



VSD's small brushless dc motor is ideal for use in precision equipment, and its outstanding performance and versatility make it widely used in multiple industries. Here are a few reasons to choose a VSD:



High performance and low power consumption



VSD's small brushless dc motor, using pure copper coils and a high-quality iron core, has excellent electrical conductivity and strength, ensuring high power output while maintaining low energy consumption. Its no-load current is only 0.146A, and combined with an efficiency of 82% to 90%, it can maintain efficient and stable performance during long periods of operation.



Durable material and reliable construction



The motor housing is made of high-quality aluminum with excellent corrosion and rust resistance, ensuring the long-term reliable operation of the motor. The front and rear ball bearings with built-in drive circuit further enhance the stability and service life of the motor.

Multiple voltage and speed options



VSD motors are rated at 12V and 24V and support a voltage range of 36V or less to suit a variety of application scenarios. Its no-load speed of up to 8600±10% rpm can meet the requirements of high speed applications, suitable for tasks requiring high torque.

Multiple application scenarios and flexible customization



VSD's small brushless dc motor is widely used in automotive parts, household appliances, medical equipment, commercial equipment, and personal care equipment. Whether the design of an internal or external rotor, or the need for a belt encoder or gear drive, VSD offers precision customization and flexibility to adapt to specific industrial requirements.



Advanced protection features and reliability



The motor is equipped with over current, over voltage and over temperature protection to ensure stable operation in harsh environments and reduce the risk of equipment failure. In addition, its built-in 360° positive and negative rotation function is suitable for complex multi-directional operation occasions.



VSD's small brushless dc motor provides quality and service assurance



We are committed to providing the highest quality small brushless dc motor. All motors undergo a rigorous series of reliability tests, including noise testing, water resistance testing, life testing, crash testing, storage testing and salt spray testing, to ensure superior durability and reliability to meet the requirements of a variety of demanding working environments.



As a leading manufacturer in the industry, we have more than 40 highly efficient production lines and more than 300 automated machines, which significantly increase production efficiency and ensure that we can meet our customers' high-volume orders. We provide high quality products at competitive prices and strive to provide the best cost performance for our customers. At the same time, we have passed the ISO 9001:2015 and IATF 16949:2016 quality management system certification to ensure that high standards are always maintained in product quality management. In addition, we also have a number of international certification and patent certification, to further ensure the innovation and reliability of products.



If you need additional certificates or specific information, please feel free to contact us and we will be happy to support you to ensure that the product meets your specific requirements. We also offer professional ancillary services, including drives, encoders and gearboxes, to meet your specific needs. Our team will respond to your message within 24 hours to provide you with precise quotes and solutions. Your satisfaction is our biggest pursuit, looking forward to working with you!
