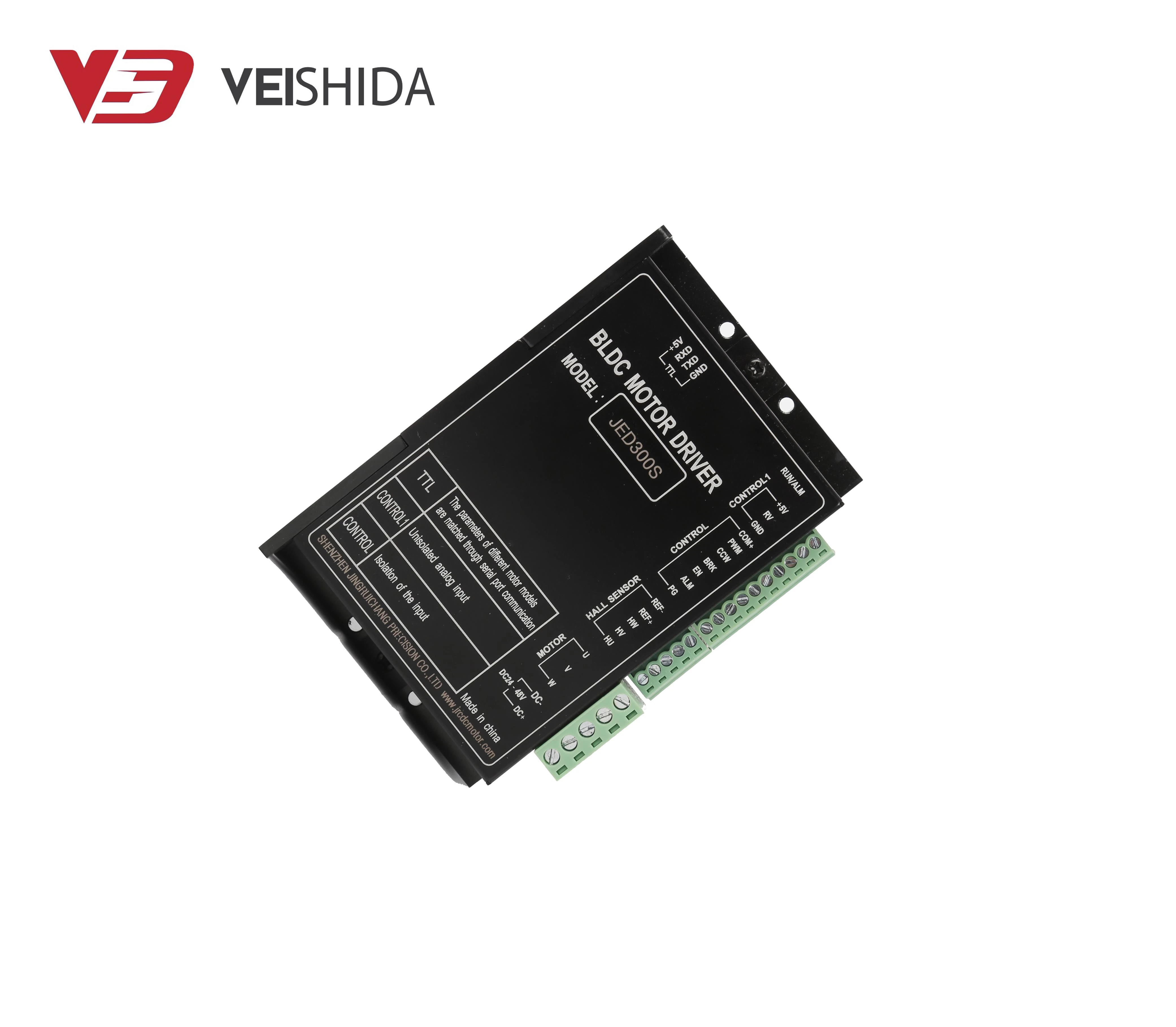

Brushless DC Motor Driver

Brushless DC Motor Driver uses motor circuit current detection technology, brush DC motor speed self-detection technology, regenerative current constant current braking (or braking) technology and powerful PID regulation technology to control motor starting, braking (braking), commutation process and blocking protection. The motor response time is short, and the recoil force is small; the output current is monitored in real time to prevent overcurrent and effectively protect the motor and drive. And the motor rated current can be configured by dip switch or serial port, which can make the motor starting, braking and blocking current are limited to the motor rated current range, efficient and safe.

Company Highlights

Overview

Product Description

Strong research and development talents; can quickly produce a variety of new motors.Please get in touch with us if the consumer has any unique requests. Your online inquiries will receive a response from us within 24 hours. The needs of the customer might be satisfied in any technological field.

Product Details

Brushless DC Motor Driver functional features

◆ Voltage range 9~36V, large load current 10A, rated current 8A.

◆ Single/double potentiometer, 0~10V analog signal with 5V or 24V logic level, switch, -5V~+5V differential analog signal or RS485 multiple input signals.

◆ PWM speed regulation (voltage regulation), torque control (steady current), self-testing/external speed generator closed-loop speed regulation (steady speed) multiple speed regulation modes.

◆ motor current PID regulation, large load/brake current configurable, short motor start/brake/commutation time and small impact force.

◆ Forward/reverse two-way speed regulation, preset forward/reverse speed and storage, start/stop and direction control by switch/button.

◆ Two limit switches can be connected externally to split the forward and reverse rotation limits.

◆ Motor overload and blocking current limit, to prevent overcurrent damage to the motor, support blocking limit stop.

◆ Support multi-site communication, convenient for multiple controllers (such as microcontroller, PC or PLC) control, support communication interruption stopping protection.

◆ 18kHz PWM frequency, no PWM arguing sound for motor speed regulation.

◆ Very small PWM deadband, only 0.5us, PWM effective range 0.1%~99.9%.

◆ All interfaces ESD protection, can adapt to complex field environment.

◆ Use thickened aluminum alloy large heat sink case, good heat dissipation effect.

Company Strength

The Vshida Micro Motor Company produces 200,000 motors every day using more than 40 manufacturing lines, more than 500 production staff, and high levels of automation. Additionally, we have a capable business team that puts the needs of the customer first, prioritizes quality in all it does, and relies heavily on technology to offer consumers flexible, expert services that are precisely catered to their requirements in order to accomplish win-win outcomes.

Product Certificate

Some of our partners

Due to our independent R&D team, mature process design, and 15 years of motor R&D and production experience, working with us means choosing to work with a well-thought-out, high-quality manufacturer.

Application

Transport Packing

Please get in touch with us if you require any other specific packaging needs.

Supply Capacity: More than 200000 DC motors with  per Day

Foam box inside dimensions are 350x265x280mm.

Dimensions of the outer carton: 365*275*320mm.

350 pieces; 16.7 kilogram

Payment & Delivery

Brushless DC Motor Driver Introduction

For high-power motors (usually no-load current 0.5A or more), this drive can directly measure the commutation frequency of the motor commutator without a speed measuring device. The commutation frequency is divided by the number of times the motor rotates for one revolution and then multiplied by 60 is the motor speed (motor speed = 60 * commutation frequency / number of times the motor rotates for one revolution), which can realize the blocking judgment and speed stabilization function (i.e. load change causes speed change, the driver will automatically adjust the speed to the previous speed).

Motor load is too large or blocked rotation drive will stabilize the current output, the output current value for the preset rated current; as long as the selection match and set the parameters correctly, can effectively protect the motor and drive, long time blocked rotation 10A no problem at all!

Motor start and brake process are smooth, the start process time is usually shorter than the brake time, motor forward and reverse switching time is slightly longer than the brake time, close to 0.1S.

◆ Support drive internal temperature monitoring, can be configured to overheat protection temperature.

◆ Support drive power supply voltage internal monitoring, configurable overvoltage/undervoltage shutdown monitoring value.

◆ Support multi-current output, and large torque output when starting and large load.
