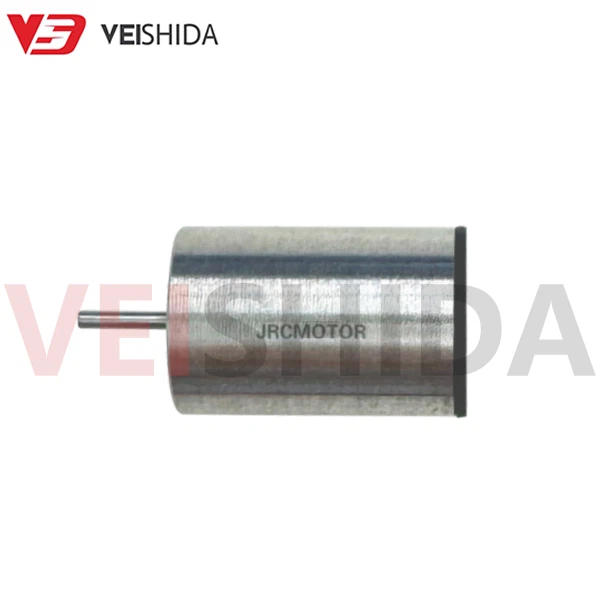

VEC-1015 4.2V 12V Coreless Brushless Motor

The VEC-1015 Coreless Motor is an ultra-high performance miniature motor designed for applications where speed, accuracy and responsiveness are critical. Its unique coreless structure eliminates the cogging effect and ensures smooth operation. With significant advantages of low noise, high speed and low inertia, it is widely used in power tools, medical equipment, robotics, industrial control, blowers, electric seats, electric jaws and other fields.

VEC-1015 Coreless Motor:Compact design

The VEC-1015 is designed with an ultra-small diameter of 10mm ±0.1mm and a body length of only 15mm ±0.2mm, making it ideal for equipment with limited space. The bearing diameter of 1.5mm and the extended bearing length of 5.3mm ±0.5mm ensure stable rotational accuracy. Output lead length 12mm ±3mm, PIN1~PIN8 design, easy to integrate flexibly in different application scenarios.

VEC-1015 Coreless Motor:Excellent performance for different needs

The VEC-1015 is available in two sizes to meet different power requirements:

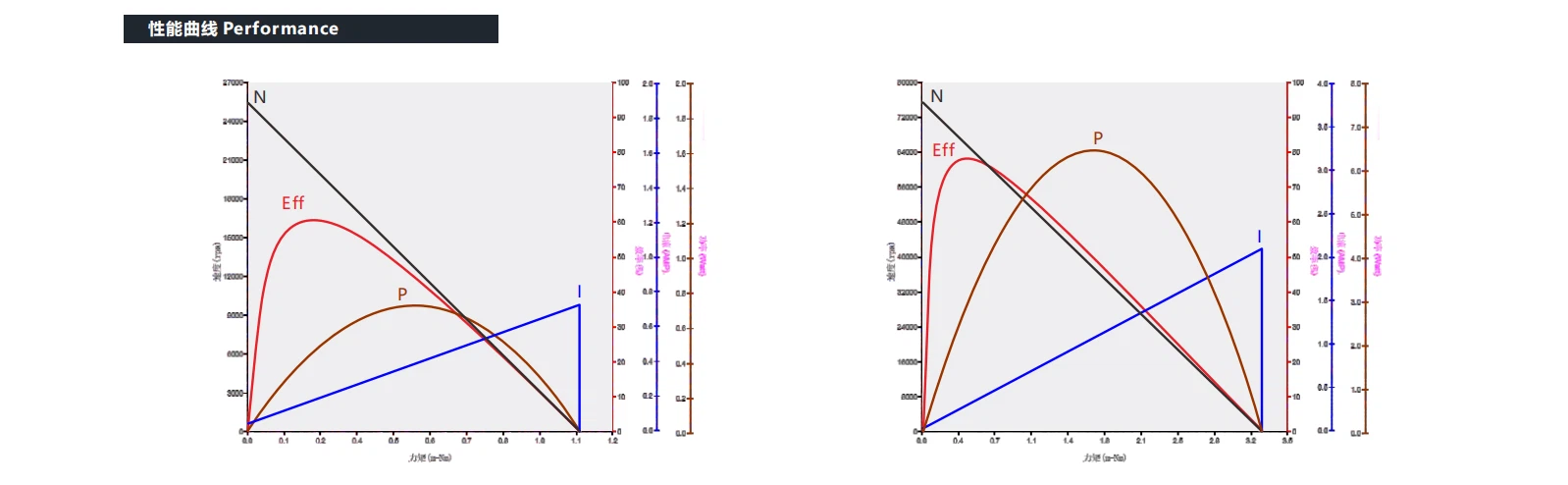

Specification 1 (low voltage 4.2V version)

No-load speed: 25398 r/min, no-load current is only 0.045A.

Maximum efficiency speed: 20,367 r/min, torque 0.216 mN.m, power 0.462W

Starting torque: 1.093 mN.m, starting current 0.734A

Specification 2 (Wide Voltage 8~16V Version)

No-load speed: 75656 r/min, no-load current is only 0.04A.

Maximum efficiency speed: 65977 r/min, torque 0.416 mN.m, power up to 2.877W

Starting torque: 3.255 mN.m, starting current 2.091A

VEC-1015 Coreless Motor:Core strengths for outstanding performance

Low noise: High precision manufacturing process ensures quiet operation, suitable for medical and high-end electronic equipment.

No cogging effect: Hollow cup structure eliminates torque pulsations for smooth, unobstructed rotation.

Ultra-high speed: up to 75656 r/min for high-speed applications.

Low inertia and fast response: extremely fast dynamic response for precision control applications.

VEC-1015 Coreless Motor:Personalization and flexible application

The VEC-1015 supports a number of customizations including output shafts, leads, terminal leads, mounting holes, speed, voltage and torque to meet the specific needs of different equipment and industries.

VEC-1015 Coreless Motor:Wide range of application scenarios

Thanks to its high speed, low noise and fast response characteristics, the VEC-1015 is suitable for a number of high-end precision equipment, such as:

Power tools: Providing stable power to enhance work efficiency

Medical equipment: for critical medical equipment such as ventilators, electric jaws, etc.

Robotics: Enhancing micro-robot motion control capabilities

Industrial control: for automation systems and precision instruments

Blowers & Fans: Highly efficient drives for improved heat dissipation and ventilation

Power Seat: Ensures smooth adjustment for enhanced comfort

If you are looking for a miniature motor that combines high performance, high precision and high responsiveness, the VEC-1015 Coreless Motor is the ideal choice for you. We offer a full range of customization services, so please feel free to contact us for the solution that best suits your needs!
