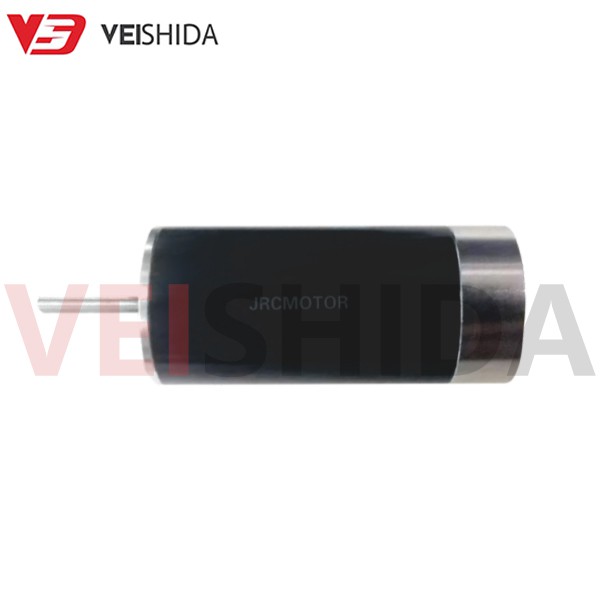

VEC-1630 12V 24V Brushless Coreless Motor

The VEC-1630 coreless motor is a micro motor known for its ultra-high speed and stability. It is widely used in medical robots, industrial automation, drones and other fields. The design of this motor not only focuses on high efficiency and low noise, but also provides stable output at high speed to meet the power requirements of a variety of precision equipment. Whether it is the need for precision control in surgical instruments or real-time response in smart home and smart driving systems, VEC-1630 can ensure stable operation of the equipment with its excellent performance.

VEC-1630 Coreless Motor : Precision Design, Powerful Power

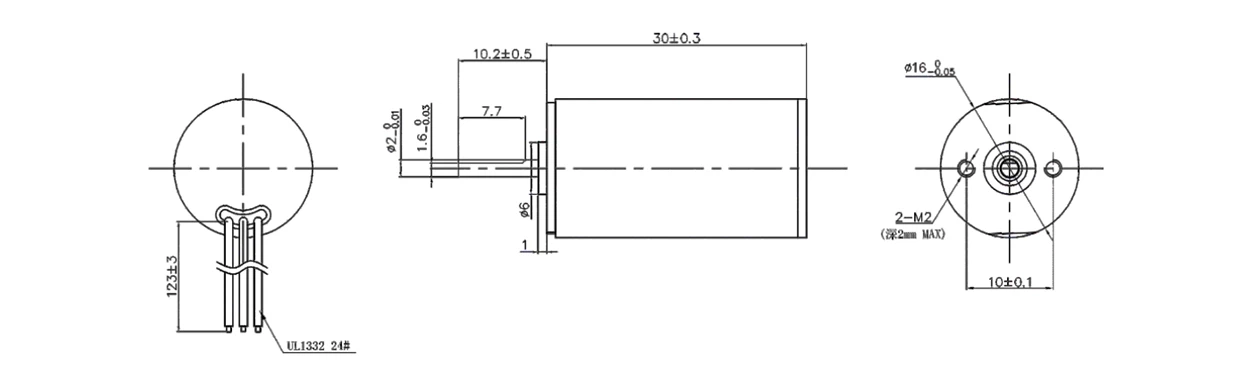

The VEC-1630 motor has a diameter of 16mm ±0.5mm and a motor length of 30mm ±0.3mm, ensuring a compact size and strong output. The bearing diameter is 1.6mm ±0.03mm, and the extended bearing length reaches 10.2mm ±0.5mm, ensuring good bearing support and smooth movement. The motor output lead length is 123mm ±3mm, and UL1332 24# cable is used to ensure the stability and safety of the electrical connection.

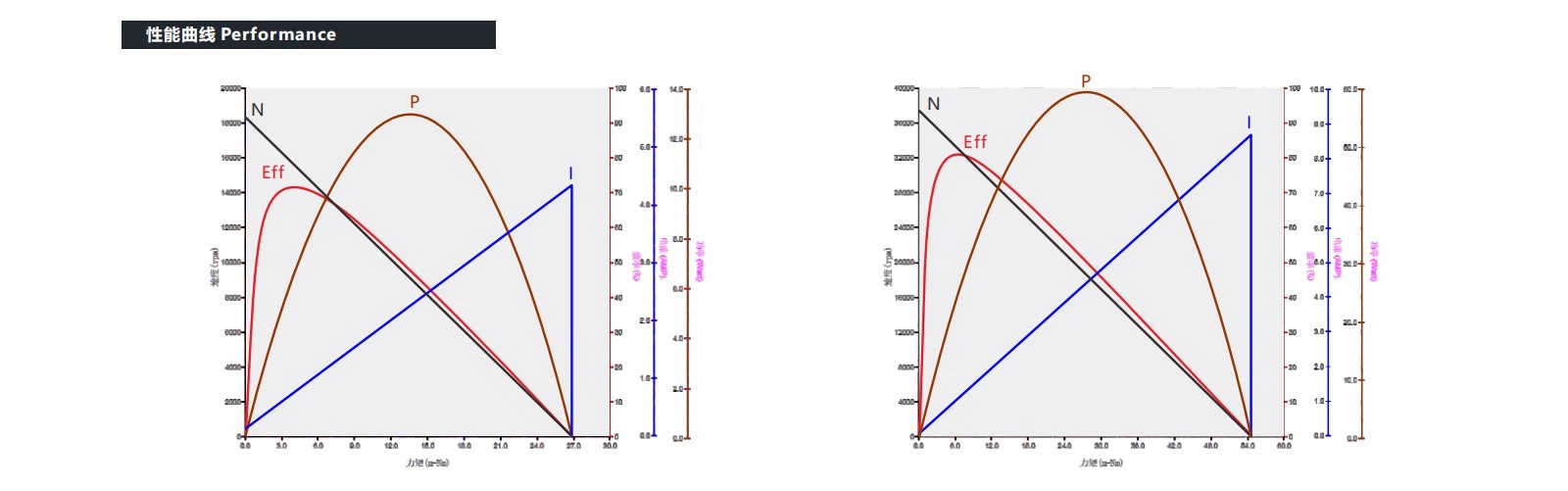

VEC-1630 Coreless Motor : Two Specifications for Flexible Adaptation

VEC-1630 provides two specifications to meet different voltage and working requirements:

Specification 1 (12V version)

No-load speed: 18408 r/min, no-load current 0.136A

Maximum efficiency speed: 15640 r/min, torque 4.041 mN.m, output power 6.619W

Starting torque: 26.872 mN.m, starting current 4.341A

Specification 2 (24V version)

No-load speed: 37411 r/min, no-load current 0.136A

Maximum efficiency speed: 33250 r/min, torque 6.075 mN.m, output power 21.153W

Starting torque: 54.614 mN.m, starting current 8.682A

From smooth operation at low voltage to powerful output at high voltage, the VEC-1630 provides unmatched performance under different working conditions to meet a variety of demanding applications.

VEC-1630 Coreless Motor : Excellent Performance, Stable and Efficient

Low noise: The carefully designed motor maintains low noise during operation, which is particularly suitable for applications with strict noise requirements such as medical equipment and smart homes.

No cogging: The unique design of the coreless motor reduces the cogging effect, provides a smoother output torque, and ensures the stability of the equipment at high speeds.

Ultra-high speed: The maximum no-load speed can reach 37411 r/min, making it perform well in equipment with high speed requirements.

Low Inertia and Fast Response: The low inertia design of the VEC-1630 enables the motor to respond quickly to control signals, making it particularly suitable for applications that require fast dynamic adjustments, such as robotic control and drones.

VEC-1630 Coreless Motor : Flexible customization to meet various needs

VEC-1630 supports multiple customization services. Users can adjust the output shaft, lead wires, terminal leads, mounting holes, speed, voltage, torque and other parameters according to specific needs to ensure the perfect adaptation of the motor in different devices.

VEC-1630 Coreless Motor : Widely used, promoting technological innovation

With its excellent performance, VEC-1630 coreless motor has found wide applications in many fields, especially in industries with high requirements on precision, speed and stability:

Medical robots: Provide stable and precise power support for medical robots to ensure their efficiency and accuracy when performing precision operations.

Industrial robots: provide powerful driving force for industrial automation equipment, improving production efficiency and intelligence level.

UAV: High rotation speed and low inertia characteristics make it an ideal choice for UAV power systems, providing strong flight capabilities.

Surgical instruments: Precision control and low noise design make them widely used in medical instruments, ensuring high precision and safety during surgery.

Smart home: such as smart door locks, automatic cleaning equipment, etc., providing efficient and reliable power support.

Air purification equipment: Efficient fan drive system helps air purification equipment operate better.

Intelligent driving system: Provides fast response and stable driving to ensure precise control of intelligent driving technology.

The VEC-1630 hollow cup motor is an ideal choice for many industries due to its high efficiency, stability and flexible customization options. Whether you are looking for a more efficient robot drive system or developing high-performance drones or medical equipment, the VEC-1630 can provide powerful power support for your project. Welcome to contact us for more customization information and create a perfect solution for you!
