2808 Brushless Motor For Drone

VSD's drone brushless motor family provides an excellent power solution for a wide range of unmanned aircraft (such as quadcopters, racing drones, and filming droneswith cameras), particularly for large and heavy UAVs requiring high thrust and high performance. These motors are highly appreciated by professional users for their high efficiency, low noise and durability, ensuring stable flight of the aircraft under high load and high performance requirements.





Designed for FPV and heavy-duty drones, the VBL-2808 drone brushless motor is available in three KV value options: 1300KV, 1500KV, and 1950KV for different flight styles and scenarios:



1300KV: Designed for low speed, smooth flight, capable of providing a smooth control experience, suitable for quadcopters with cameras or large UAVs. This model has a maximum power of 1511.9W, supports 25.2V voltage, 1.19A no-load current, and weighs only 61.1 grams, making it ideal for missions that require long endurance flight.



1500KV: achieves a balance between smoothness and efficient thrust, suitable for users with balanced needs. Its maximum power is 1781.7W, working voltage is 25.2V, weight is 60.5g, no-load current is 1.49A, to ensure that the aircraft is still stable under intense control, suitable for the need for more high-performance racing drones.



1950KV: suitable for intense flight and high-speed scenarios, it provides super power for racing UAVs, helping UAVs to perform well in speed and flexibility. The maximum power of this model is 1849.3W, the operating voltage range is between 16.8V and 25.2V, the no-load current is 2.45A, and the weight is 61.1 grams, which is very suitable for the flight scenario that requires strong thrust in a short time.



Smoothness and durability are guaranteed

The VSD drone brushless motor is known for its smooth thrust and low noise characteristics, especially in drones with cameras. For both aerial photography and mission execution, the VBL-2808 motor provides a stable power output for the UAV, helping the vehicle maintain a smooth, jitter free state at high altitude, and ensuring high image quality.



Reliable heavy load carrying capacity

For large drones and heavy drone missions, VSD's drone brushless motor performs excellent load carrying capacity. The VBL-2808 motor is able to withstand higher voltage and power requirements to provide sufficient thrust for the drone's weight-bearing flight, especially for aircraft that need to carry sensors, camera equipment, or other heavy equipment. Its powerful thrust performance and efficient design can meet the needs of long-term flight without increasing the load of the motor.



Customized options to meet diverse applications

VSD supports customizing the specifications and KV values of the drone brushless motor on demand to meet different flight applications and individual needs. Whether it's to provide top speed power for racing drones or to enhance flight stability for drones with cameras, VSD's drone brushless motor can adapt to the flight requirements of a variety of applications where your vehicle is most relevant.

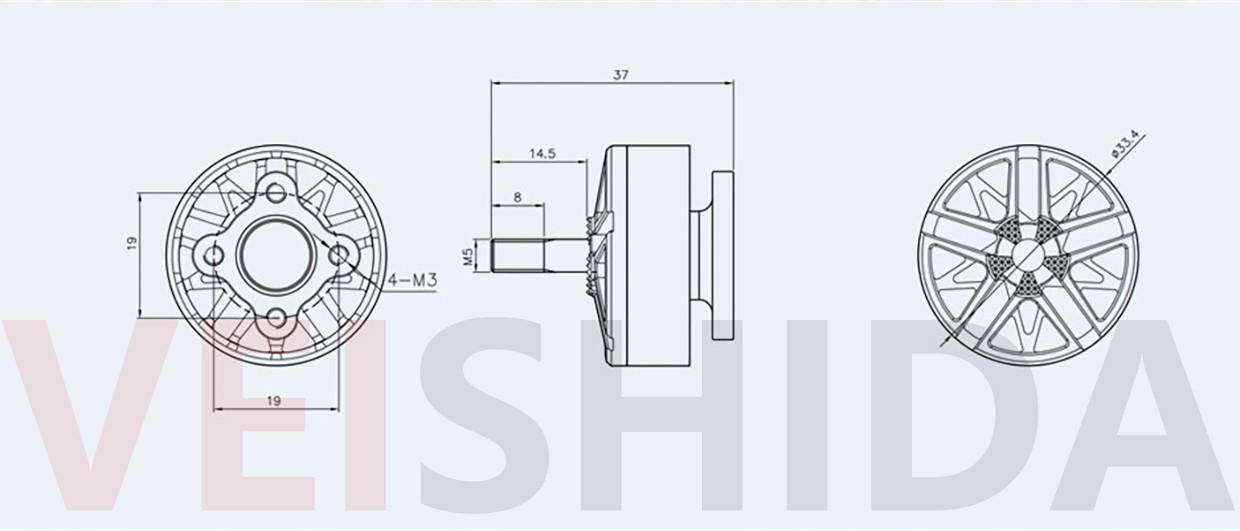

VBL-2808 drone brushless motor Dimensions

VBL-2808 motor parameters

KV	Configuration	Shaft Diameter	Lead	Weight(Incl.cable)	Voltage	Idle Current(10V)	Max.Power(10s)	Peak Current(10s)
1300KV	12N14P	4mm	18# 250mm	61.1g	25.2V	1.19A	1511.9W	62.4A
1500KV	12N14P	4mm	18# 250mm	60.5g	25.2V	1.49A	1781.7W	74.3A
1950KV	12N14P	4mm	18# 250mm	61.1g	16.8V/21V/25.2V	2.45A	1849.3W	82.3A



VBL-2808 motor test

Propeller	Type	Throttle	Voltage(V)	Current(A)	RPM	Thrust(g)	Power(W)	Effciency(g/W)
T-MOTOR T6143-3	1500KV	20%	25.2	2.5	10190.4	192.2	63.8	3.01
		40%	25.1	7.9	15706.5	569.3	197.3	2.89
		60%	25	15.2	19536.1	951.2	380.6	2.5
		80%	24.8	27.5	24149.8	1523	682.4	2.23
		100%	24.5	47.5	28715.1	2176.3	1163.8	1.87
	1950KV	20%	25.1	4.5	12139.9	304	112.9	2.69
		40%	25	14.2	18460.7	830	354.4	2.34
		60%	24.8	28.1	22914.2	1368.9	695.5	1.97
		80%	24.4	50.1	27935.2	2081	1223.7	1.7
		100%	23.9	77.3	32261.6	2679.7	1849.3	1.45
T-MOTOR T7546-3	1300KV	20%	25.2	2.2	6315.2	245.4	55.3	4.44
		40%	25.1	8.9	10230.3	778	222.9	3.49
		60%	24.9	20.7	13872.8	1509.5	514.3	2.93
		80%	24.6	40	16989.5	2298.3	982.1	2.34
		100%	24.2	62.4	18942.7	2910.4	1511.9	1.92



Propeller	Type	Throttle	Voltage(V)	Current(A)	RPM	Thrust(g)	Power(W)	Effciency(g/W)
HQ5040-6	1300KV	20%	25.2	2	7838.1	135.6	51.5	2.63
		40%	25.1	6.6	12132.4	451.6	165.5	2.73
		60%	25	13.4	15865	818.3	335.9	2.44
		80%	24.8	27	19796.9	1307.4	670.5	1.95
		100%	24.5	45.6	23645.3	1909.1	1118.6	1.71
	1500KV	20%	25.2	3	8822.4	195.7	74.4	2.63
		40%	25	8.9	13479	560.6	224.4	2.5
		60%	24.9	20.3	17796.5	1034.7	505.5	2.05
		80%	24.6	39.6	21871.5	1599.1	951.2	1.68
		100%	24.3	63.5	25398.4	2180.3	1541.0	1.41
	1950KV	20%	21	3.9	8948.4	213.8	81.3	2.63
		40%	20.9	11.9	13716.6	589.5	247.9	2.38
		60%	20.6	27.1	18160.5	1059.1	559.3	1.89
		80%	20.2	51.2	22140	1609.2	1036	1.55
		100%	19.8	77.3	25375	2155.1	1528.2	1.41



Propeller	Type	Throttle	Voltage(V)	Current(A)	RPM	Thrust(g)	Power(W)	Effciency(g/W)
GF7040-3	1300KV	20%	25.2	2	7976.2	180.5	51.1	3.53
		40%	25.1	6.5	12280.6	600.9	163.8	3.67
		60%	25	13.4	15926.2	1075.3	333.8	3.22
		80%	24.8	27.9	19724.3	1807.7	690.7	2.62
		100%	24.5	47.4	23321.9	2466.8	1160.6	2.13
	1500KV	20%	25.2	2.9	8942.7	263.7	73.5	2.59
		40%	25.1	8.8	13575	754	221.7	3.4
		60%	24.9	20.2	17780.5	1363.8	504.6	2.7
		80%	24.6	40	21540.2	2180.2	985.8	2.21
		100%	24.2	66.1	24651.5	2635.9	1600.7	1.65
	1950KV	20%	21	3.8	9063.5	279.9	80.3	3.49
		40%	20.9	11.7	13900.8	779.9	243.9	3.2
		60%	20.6	27	18113	1365	555.7	2.46
		80%	20.2	52.7	21794.6	2169.9	1064.9	2.04
		100%	19.7	82.3	24565.7	2643.3	1623.5	1.63



Propeller	Type	Throttle	Voltage(V)	Current(A)	RPM	Thrust(g)	Power(W)	Effciency(g/W)
GF8040-3	1300KV	20%	25.2	2.2	6550.4	237.1	54.5	4.35
		40%	25.1	8.2	10460.7	770	206.6	3.73
		60%	24.9	19.6	14102	1554	487	3.19
		80%	24.6	38.5	17229.6	2409.8	946.4	2.55
		100%	24.3	61	19222.2	3083.4	1479.9	2.08
	1500KV	20%	25.2	3.1	7279.6	325.9	76.9	4.24
		40%	25.1	11.1	11519	985.8	277.4	3.55
		60%	24.8	29.7	15043.4	1780	736.6	2.42
		80%	24.4	52.5	18009.6	2644	1282.9	2.06
		100%	24	74.3	19241.8	3069	1781.7	1.72
	1950KV	20%	16.8	3.2	6335.1	244.8	54.4	4.13
		40%	16.7	11.8	9960.7	696.9	196.6	3.54
		60%	16.4	26.9	13484.8	1352.3	441.7	3.06
		80%	16	51.5	16439.1	2049.7	825.9	2.48
		100%	15.6	79.4	18210.3	2631.1	1237.7	2.13





VSD's drone brushless motor series, especially the VBL-2808 model, is the ideal power choice for high-quality drones due to its superior design and robust performance. The VBL-2808 motor is not only suitable for a variety of flight requirements, but also combines high thrust, waterproof design and external rotor construction to provide stable and reliable power support for UAVs in complex environments.



Stable flight control with high thrust support

The VBL-2808 drone brushless motor has a built-in PID control algorithm for accurate flight control including flight direction and altitude stability. Its 14P high torque design provides strong power while ensuring flight smoothness and reliability. The high-speed dynamically balanced rotor ensures jitter free operation under any load conditions, making it easy for the aircraft to cope with a variety of complex flight missions, both in terms of stability and thrust requirements.



Efficient and durable design with water resistance

The motor uses high purity copper winding, paired with 48SH magnet and NMB bearing to ensure that the motor has extremely high permeability, insulation and heat resistance, even in the high temperature environment of 180-200℃ can maintain stable operation. The waterproof design further enhances the durability of the motor. The waterproof treatment and corrosion resistance enable the motor to operate normally in rainy days, providing lasting support for drones that need to fly in harsh environments.



High quality materials and excellent heat dissipation design

The shell of the VBL-2808 drone brushless motor was machined by a CNC machine tool and was made of 6061 T6 aluminum heat dissipator which was processed by secondary oxidation process to enhance the heat dissipation effect. The efficient heat dissipation design ensures that the motor maintains the best temperature during long-term high-speed operation, prolongs the service life of the motor, and meets the strict requirements of high-quality UAV.



The voltage can be customized to support various flight requirements

To meet the needs of multiple UAVs, the VBL-2808 offers standard voltage options of 16V and 25V, while supporting more voltage specifications such as 12V and 18V, making the motor suitable for various flight scenarios. The number of winding slots can be customized according to the actual application requirements to optimize the motor efficiency and provide the most suitable power configuration for each UAV.





VSD's drone brushless motor is a leader in the market for its high quality, high thrust and superior external rotor design. Whether you're pursuing stable flight control or tackling the challenges of a complex environment, VSD offers the ideal power solution for your drone.



As a specialized manufacturer of drone brushless motor, VSD has established a strong competitiveness in the market with more than a decade of manufacturing and customization experience. The VSD factory covers an area of more than 10,000 square meters, is committed to independent research and development, has a number of patented technologies, and has passed a number of international certifications such as CE, REACH, ROHS, IATF16949, ensuring that each motor meets strict quality and environmental protection standards. With an annual R&D investment of 2.6 million yuan, VSD provides customers with innovative and reliable product solutions.



High quality drone brushless motor available in a variety of models

VSD not only offers VBL-2808, a high-performance drone brushless motor, but also hless hless motor 2306, 2307, 2807, 2809, 2810, 2812, 3112, 3115 and other models. These models are suitable for 5-inch, 7-inch, 8-inch and larger UAVs, and meet the high thrust and precision requirements of different flight requirements. Each motor can be precisely rotated by a controller to easily control the direction and altitude of the drone, making it ideal for racing, freestyle and large drones.



Strong productivity and strict quality management

As a high performance drone brushless motor factory, VSD has a monthly production capacity of 4.5 million DC motors, each of which is subject to rigorous quality testing prior to delivery. The production equipment and testing technology of VSD are in the leading position in the industry to ensure the stability and reliability of the motor. We provide factory direct price, so that customers can enjoy the value of high quality products.



Quality packaging and delivery services

VSD strives for excellence in packaging to provide customers with safe and reliable transportation guarantees. The packaging marks of each motor contain standard information, including quantity, net weight, gross weight and package size, to ensure the safety and convenience of the product in transportation.



With VSD, we can meet your expectations and help make your drone project a success, whether it's a custom requirement or a high volume purchase. Leave your requirements and contact information, we will get in touch with you in the shortest possible time.
