3115 900KV FPV Drone Motor

The VSD-3115 FPV Drone Motor stands out with its high torque and powerful power of 900KV and is designed for freestyle FPV, long-distance FPV and competitive flight. The efficient power output guarantees the drone's stability in a variety of flight environments, provides strong lift and precise throttle response, and is especially suitable for difficult flight missions that require speed and flexible handling.



The VSD-3115 motor is controlled by a servo machine, and the current and voltage are precisely adjusted by an electronic controller to ensure a fast and stable response during suspension, acceleration and steering of the UAV, bringing a smooth flight experience. The motor housing is made of rugged titanium alloy, with 48SH arc magnets and military-grade heat-resistant coils. The interior is also equipped with imported NMB bearings, which are extremely durable and impact-resistant, enabling stable operation for long periods of time, even during high-intensity flights.



The motor's structural design focuses on protection and heat dissipation, meets the IP53 dustproof and waterproof rating, and can work properly in complex outdoor environments. The open structure at the bottom and the porous outlet further enhance the heat dissipation effect and extend the life of the motor. In addition, the VSD-3115 motor offers a number of customizable services, including power, speed, size, output shaft and materials, in order to meet the individual needs of customers in FPV flight.



With more than a decade of industry experience in the field of motors, VSD is also a well-known FPV drone manufacturer in China. Its FPV drones have won many awards, and it knows how to create high-quality motors to suit various flight needs. Choose VSD-3115 FPV Drone Motor, that is, choose high performance and high quality, to help you easily achieve a more stable and accurate flight control experience.

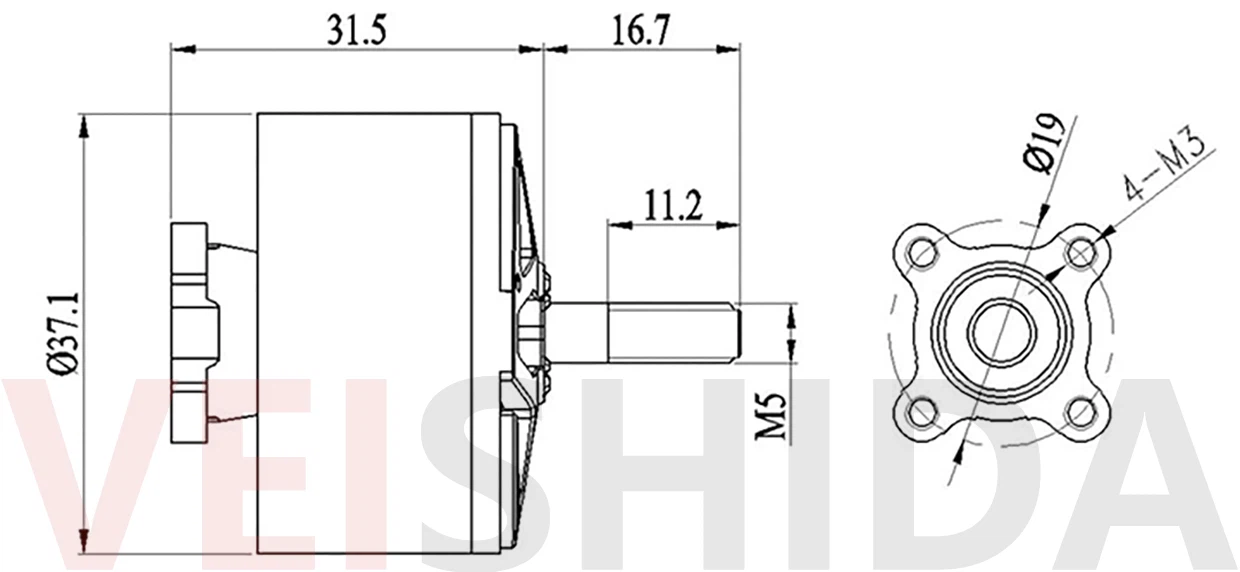

Design drawings



Parameters

KV value:	900KV / 1050KV / 1520KV	Applicable battery:	5-8S lithium battery
Casing material:	Aluminum alloy Al 7075	Mounting hole distance:	M3 screw hole (19x19mm)
Stator:	0.2mm Kawasaki silicon steel	Bearing:	Japanese NMB bearing, size 11mm x 5mm x 5mm
Configuration:	12N14P	Rotor:	N52H arc magnet
Propeller adapter shaft thread:	M5	Weight:	110g (with 25cm SR wire)
Shaft material:	Titanium alloy hollow shaft	Wire specification:	18AWG, length 25cm



Performance

MOTOR Type	PROPS	Throttle	Voltage(V)	Current(A)	Thrust(g)	RPM	Power(W)	Efficiency(g/W)	Temperature (℃)
AE3115 900KV	HQ MQ 9*5 3Blades	50%	25	10.7	1287	9052	267.5	4.81	75.6℃
		60%	25	16.7	1778	10921	417.5	4.26
		70%	25	25.8	2266	12442	645	3.51
		80%	25	36.4	2815	13189	910	3.09
		90%	25	48.8	3325	14488	1220	2.73
		100%	25	58.1	3712	15172	1452	2.56
	GF 10*5 3Blades	50%	25	11.6	1426	8757	290	4.92	98.3℃
		60%	25	18.2	1933	10064	455	4.25
		70%	25	28.1	2585	11451	702.5	3.68
		80%	25	39.1	3159	12665	977.5	3.23
		90%	25	54	3768	13720	1350	2.79
		100%	25	64.7	4185	14612	1617	2.59







As an FPV drone manufacturer, you know that a good motor determines the speed, handling and stability of the flight. The 3115 FPV motor perfectly meets the demanding requirements of high thrust, response speed and durability for competitive flight. The following are the features and benefits of the 3115 FPV Drone Motor, which will bring you an extraordinary flying experience.



1. High thrust and high rotational speed

The 3115 FPV motor is designed with a 900KV rated high torque, which can provide strong and smooth thrust in the range of operating voltage 3S to 6S (11.1V to 22.2V), ensuring that the UAV can easily cope with various complex actions. The maximum speed of the motor can reach 15,172 RPM, which brings excellent response speed and accurate control experience to the user.



2. Lightweight design

Each 3115 motor weighs only 113 grams, and the lightweight design greatly reduces the overall weight of the drone and improves the flexibility and endurance of the flight. This lightweight structure not only makes the UAV more maneuverable during high-speed flight, but also effectively reduces motor power consumption and achieves longer flight time.



3. High performance and low power consumption

3115 FPV motor through low internal resistance design to improve motor efficiency, minimize energy loss, to ensure that the motor in efficient work at the same time to avoid too much battery consumption, to meet the user's expectations for battery life. This design enables the FPV UAV to maintain a strong power output during flight while extending the flight time.



4. Servo control

The motor adopts servo control technology, with electronic controller to adjust the current and voltage, and flexibly control the speed and torque of the motor, so that the UAV can quickly achieve suspension, acceleration and steering actions. This efficient control scheme ensures the best attitude stability in flight for the FPV UAV, which can respond quickly even in the face of sharp turns and sudden acceleration.



5. Adapt to extreme flight environments

To meet the high-intensity flight requirements of FPV UAVs, the 3115 motor's housing is made of a rugged titanium alloy material and is equipped with 48SH arc magnets, imported NMB bearings and military-grade heat-resistant coils to ensure stability in severe vibration and high temperature environments. More importantly, the motor adopts 0.2mm silicon steel sheet structure, which effectively reduces heat generation and increases motor durability.



6. Innovative heat dissipation design

The bottom and front cover of the motor are designed with a porous outlet, combined with a titanium alloy shell, effectively promote heat dissipation, even in a long time of high-load flight can keep the motor low temperature, reduce the risk of overheating, thus extending the service life of the motor.



7. IP53 dustproof and waterproof

The bearing of 3115 FPV motor has been designed to be dustproof and waterproof, reaching IP53 grade, which is especially suitable for wet and dusty outdoor flight environment. The motor uses the first electrophoretic core process to improve corrosion resistance and ensure stable performance in extreme environments, making it ideal for outdoor FPV flight.





Since its establishment in 2011, VSD has accumulated more than a decade of experience in the motor manufacturing industry, especially in-depth understanding of the strict requirements of FPV drone motors, and is committed to providing customers with high-performance and stable and reliable motor solutions. The company strictly follows ISO9000, ISO14000, CE, ROHS and other international standards for production management, and each product has passed strict quality inspection to ensure that it meets international quality standards. With advanced quality management and in-depth understanding of motor performance, our motors have won the trust of customers in the global market.



As a self-owned manufacturer, VSD adopts the factory-directed model to ensure that customers can directly connect with the production source, without middlemen markup. The company covers an area of more than 10,000 square meters, has more than 500 front-line employees, more than 40 motor production lines and 25 R & D engineers, and can produce more than 4.5 million motors per month, which can flexibly meet the needs of large quantities and personalized customized orders. We provide OEM and ODM services, and support customer field visits, so that you can personally feel our production strength and product quality.



VSD always adheres to the service concept of "timely delivery, customer first". Under normal circumstances, we can complete the proofing within 3-7 days, the delivery accuracy is as high as 95%, to ensure the smooth progress of the project. If you have any needs, welcome to leave your email and WhatsApp, our team will contact you within 24 hours to provide you with detailed product information and quotation support. Choose VSD and you will get high quality products, fast delivery and reliable 24/7 customer service support.
