Servo gear motor

VSD's Servo gear motors series provides high-performance and high-precision power solutions suitable for various demanding application fields. Our servo gear motors are customizable into both brushed DC and brushless DC series, supporting voltage options such as 12V, 24V, and 36V to meet diverse customer requirements. Whether for miniature applications or heavy-load environments requiring high torque output, VSD's servo gear motors deliver exceptional performance.



These motors feature advanced planetary gear designs with precise structures and high transmission efficiency, effectively reducing energy loss and ensuring efficient and stable operation. Through precise adjustment of the reduction gear set, they achieve high-precision output speed control, making them ideal for applications in robotics, small devices, home appliances, medical instruments, and more.



We offer highly customizable servo gear motors tailored to your specific needs. For size, we provide a wide range of specifications from 10mm to 70mm, supporting custom gear ratios (e.g., 4, 10, 21, 34, 78, etc.) to adjust output torque and speed according to different application requirements. Whether in high-torque applications or compact spaces for miniature applications, VSD's servo gear motors ensure the ideal solution.



As an experienced manufacturer with years of industry expertise, VSD supplies products directly, eliminating intermediaries to offer you highly competitive pricing. We own production facilities, ensuring transparency and control over every stage from design to delivery, and have obtained international certifications such as ISO and CE to guarantee product quality and stability. With diverse customization services and support for OEM and ODM, we provide tailored servo gear motor solutions for various industries, including medical, automotive, communications, and smart home appliances.



More than 95% of servo gear motor customers choose customized services, and we have earned global trust with our outstanding technical expertise and customer service. VSD is committed to delivering excellent servo gear motor products to help you succeed in every project.





GB12-N20 Servo Gear Motor

VSD's GB12-N20 Servo gear motor is a high-performance, high-torque drive system designed for applications requiring superior performance and cost-effectiveness. This motor operates at a rated voltage of 2.4V, offering a maximum power speed of 11618 r/min and a maximum power current of 0.219A. It provides a maximum power torque of 0.279mN.m and a maximum power output of 0.339W, ensuring outstanding performance under heavy load conditions. Its special starting torque of 1.296mN.m and starting current of 0.8A enable quick response during startup, meeting the needs of demanding application scenarios.



The GB12-N20 gear motor is widely used in electric tools, electric valves, air pumps, and water pumps. Its high-efficiency design ensures stable operation across various working environments, providing reliable driving power. With a no-load speed of up to 14800 r/min, it ensures equipment quickly reaches operational speeds. Additionally, its extremely low no-load current (0.06A) minimizes power consumption, enhancing overall energy efficiency and operational duration. This servo gear motor, with its high torque, efficiency, and exceptional cost-performance ratio, is the ideal choice for many industrial equipment and automation systems.

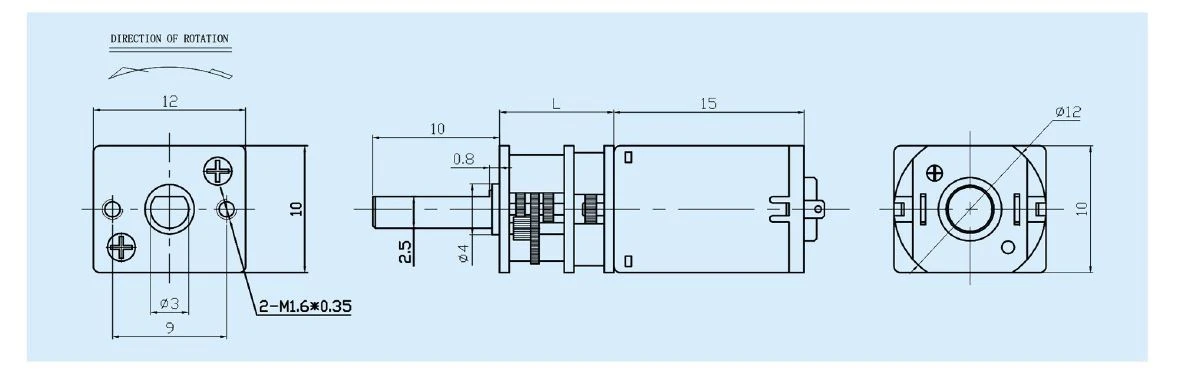

GB12-N20 Gear Motor Design

GB12-N20 Gear Motor Performance



GB25-370SH Servo Gear Motor

VSD's GB25-370SH Servo gear motor is a high-efficiency, durable, and high-performance drive system specifically designed for precision applications. This motor operates at a rated voltage of 24V, delivering a maximum power speed of 2896 r/min and a maximum power current of 0.049A. It outputs a maximum power torque of 2.38 mN.m, ensuring robust power under load conditions. Additionally, with a starting torque of up to 13.999 mN.m and a starting current of only 0.238A, this motor can instantly provide powerful driving force, making it suitable for various demanding application scenarios.



The GB25-370SH gear motor features exceptional longevity and precise positioning capabilities, making it widely used in AGV/AMR automated guided vehicles, medical robots, and electric vehicle door locking systems. With a no-load speed of up to 3489 r/min and a no-load current of only 0.01A, it significantly enhances energy efficiency. Thanks to its strong impact resistance, this servo gear motor operates stably in complex and dynamic environments, meeting stringent requirements for precise control and high reliability. Whether for high-precision robotic operations or high-performance automation systems, the GB25-370SH provides an ideal drive solution.



GB25-370SH Gear Motor Design

GB25-370SH Gear Motor Performance



GB37-555SH Servo Gear Motor

VSD's GB37-555SH Servo gear motor is a high-performance, low-noise, and easy-to-maintain drive system designed for high-load applications. This motor operates at a rated voltage of 24V, offering a no-load speed of 4000 r/min and a no-load current of 0.15A, ensuring outstanding energy efficiency along with high performance. Its maximum power speed is 3241 r/min, with a maximum power current of 0.641A, providing a maximum power torque of 17.511 mN.m and a maximum power output of 5.944W, capable of handling heavy-load requirements in complex environments. With a starting torque of 92.329 mN.m and a starting current of 2.738A, it delivers strong starting power in a short time, suitable for applications requiring rapid response.



The GB37-555SH gear motor, with its low noise and broad applicability, has become an ideal choice across various industrial fields. It is widely used in robotic grippers, infusion pumps, CNC machines, and packaging machines. With exceptional stability and precision, it ensures consistent and stable power support for a variety of high-precision operations. This servo gear motor also offers easy maintenance, significantly reducing operational and maintenance costs for equipment. Whether for industrial automation, medical devices, or precision manufacturing, the GB37-555SH provides reliable and efficient power solutions in diverse application scenarios.



GB37-555SH Gear Motor Design

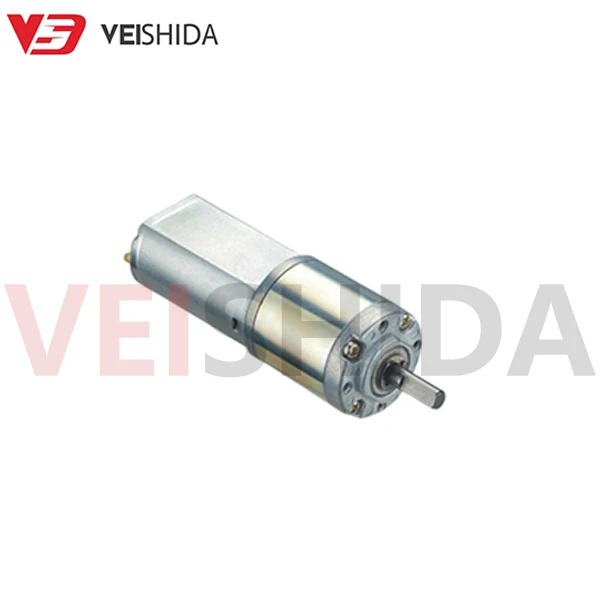

GBP22-180SH Servo Gear Motor

VSD's GBP22-180SH Servo gear motor is a highly efficient, powerful drive system suitable for various automation and precision control applications. This motor operates at a rated voltage of 12V, featuring a no-load speed of 4400 r/min and a no-load current of only 0.025A, achieving an excellent balance between energy saving and performance. Its maximum power speed is 3464 r/min, with a maximum power current of 0.093A, delivering a maximum power torque of 1.326 mN.m and a maximum power output of 0.481W, ensuring consistent and stable output in various working environments. With a starting torque of 6.235 mN.m and a starting current of 0.343A, it provides sufficient power response during startup.



The GBP22-180SH gear motor offers strong compatibility and flexible control, making it an ideal choice for applications across multiple industries. It is widely used in cleaning robots, robotic steering systems, automotive electric seats, and hospital bed adjustment systems. Its high-efficiency design ensures stability during long-term operation while minimizing energy waste, enhancing the overall lifespan of equipment. This motor enables precise control and adjustment in complex automation systems, providing a flexible operational experience. Whether for home, medical, or industrial use, the GBP22-180SH delivers powerful and reliable power support for various devices.

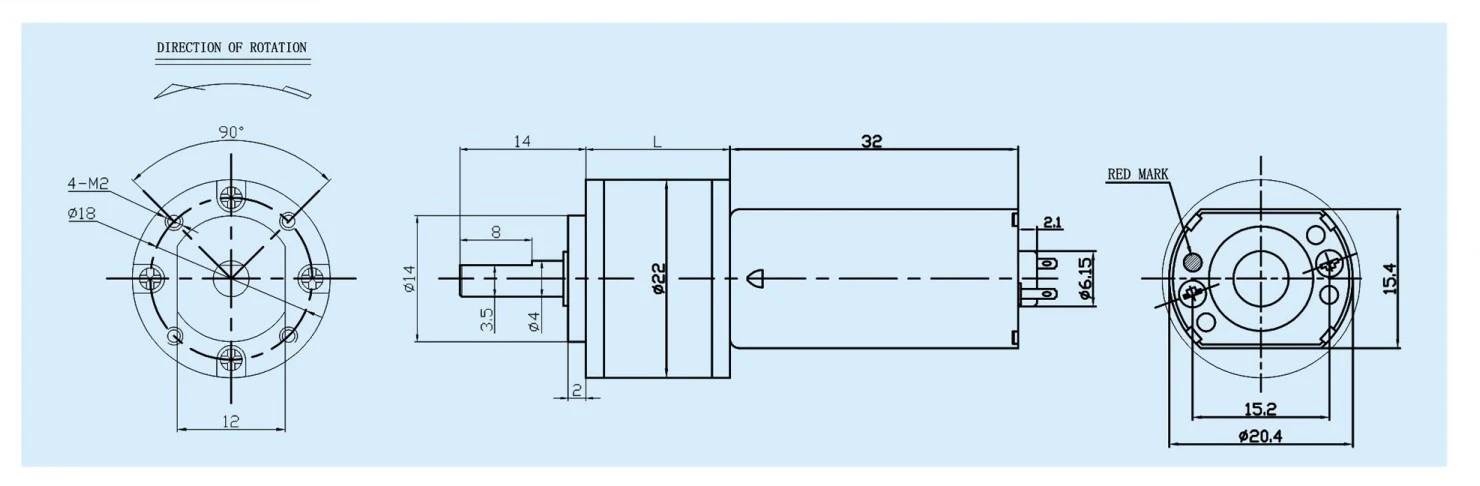

GBP22-180SH Gear Motor Design

GBP22-180SH Gear Motor Performance

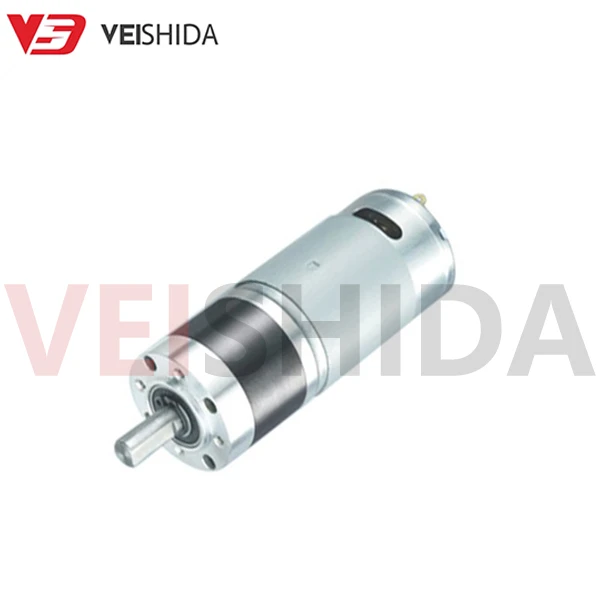

GBP36-555SH Servo Gear Motor

VSD's GBP36-555SH servo gear motor is a well-designed drive system that features high torque and excellent stability, making it particularly suitable for applications requiring high loads and precision. The motor operates at a rated voltage of 12V, with a no-load speed of 3300 r/min and a low no-load current of 0.20A, ensuring high efficiency and low energy consumption during prolonged operation. Under maximum power conditions, the motor delivers a maximum power speed of 2711 r/min and a current of 1.047A, with a maximum power torque of 20.77 mN.m and a power output of 6.026W, ensuring continuous stable performance in heavy-load applications. At startup, the motor achieves a starting torque of 129.492 mN.m and a starting current of 5.480A, providing strong initial driving force.



Thanks to its outstanding stability and durability, the GBP36-555SH gear motor is widely used in automatic pet doors, robot balancing systems, and collaborative robots. Whether for automated control in complex environments or precise movements in robotic systems, this servo gear motor ensures high-efficiency and stable operation. Its high-torque output allows devices to handle varying load demands, while its durable design extends equipment lifespan, making it an ideal drive solution for industrial automation and intelligent robotics.

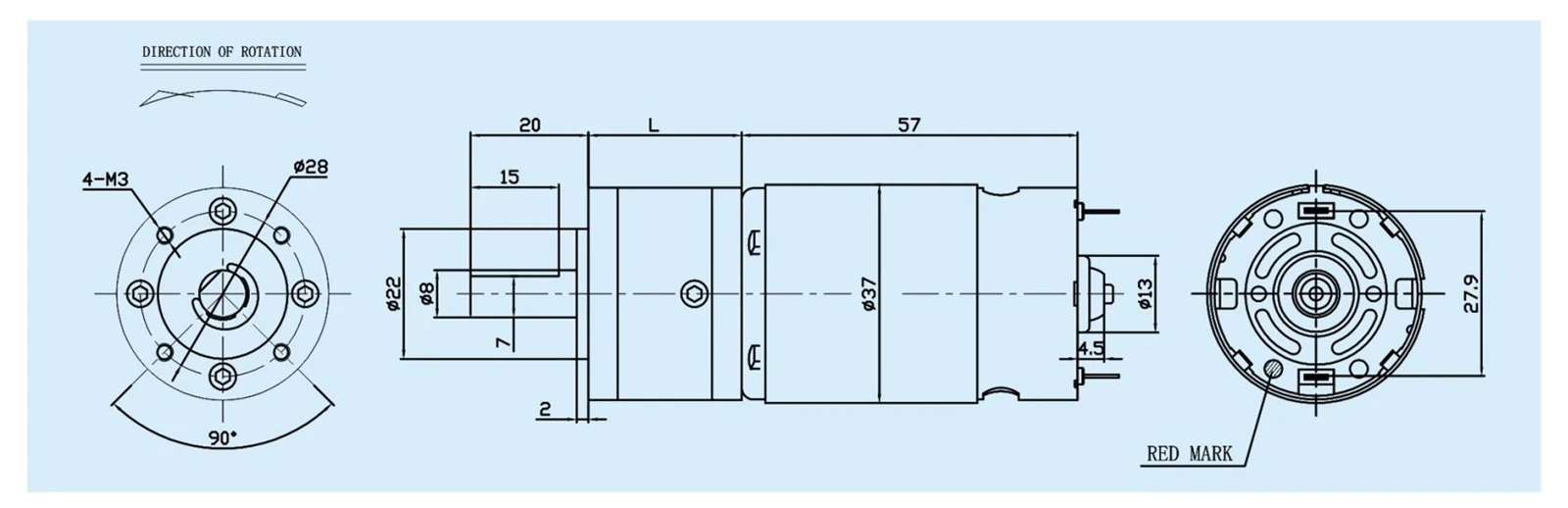

GBP36-555SH Gear Motor Design

GBP36-555SH Gear Motor Performance



GBW36F-EC3657 Servo Gear Motor

VSD's GBW36F-EC3657 servo gear motor is a high-performance, high-torque drive system designed specifically for applications requiring exceptional overload resistance. This motor operates at a rated voltage of 36V, with a no-load speed of 23 r/min and a no-load current of 0.500A, ensuring efficient performance under low-load conditions. During maximum power output, the motor achieves a speed of 19 r/min with a current of 2.449A, delivering a powerful maximum torque of 17212.045 gmN.m and a power output of 34.428W, ensuring stability under heavy loads. At startup, the motor provides a starting torque of 101533.5 mN.m and a starting current of 12.000A, enabling quick response and sufficient power output.



With its superior overload resistance and optional protection levels, the GBW36F-EC3657 gear motor is widely applied in electric lift systems, CNC machines, and robot joint drives that demand high stability and precise control. Its compact design ensures strong power output and long-term stability even in space-constrained environments. Whether in industrial automation or in high-precision robotic motion control, this servo gear motor provides efficient and reliable support for handling complex loads and harsh conditions.



GBW36F-EC3657 Gear Motor Design

GBW36F-EC3657 Gear Motor Performance

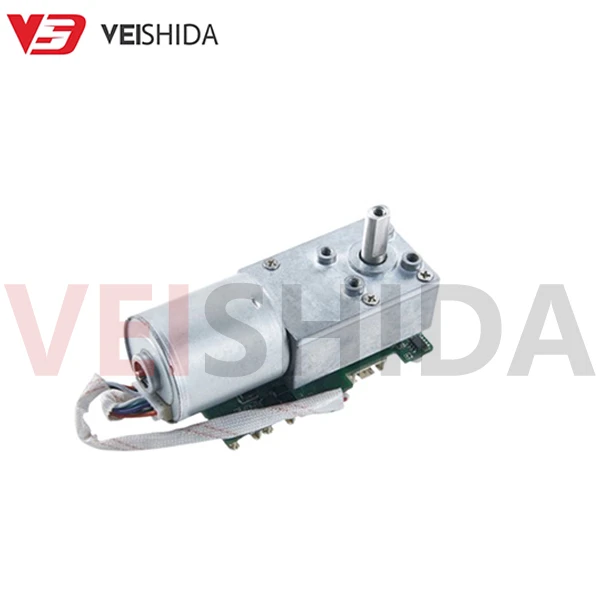

GBW36-EC3640 Servo Gear Motor

VSD's GBW36-EC3640 servo gear motor is a finely crafted high-torque drive system, designed for applications requiring high-precision control and substantial load-handling capabilities. Operating at a rated voltage of 36V, it offers a no-load speed of 38 r/min and a low no-load current of 0.500A, delivering strong power output while maintaining energy efficiency. Under maximum power conditions, the motor achieves a speed of 31 r/min with a current of 2.164A, providing a torque output of 5597.085 gmN.m and a power output of 18.093W, ensuring stability under high loads. The motor's starting torque of 29822.4 mN.m and a starting current of 9.367A enable instant powerful performance to meet demanding work environments.



With its exceptional high-torque output and servo speed control capabilities, the GBW36-EC3640 gear motor finds extensive application in AGV/AMR systems, robot steering mechanisms, and robot joint drives. Its robust overload resistance ensures reliable performance in various complex and heavy-load environments, offering precise control and handling significant load variations to maintain equipment stability and efficiency. Whether in automated transport systems or robotic precision control systems, this servo gear motor delivers outstanding performance, catering to diverse industrial and intelligent robotics needs.



GBW36-EC3640 Gear Motor Desig

GBW36-EC3640 Gear Motor Performance

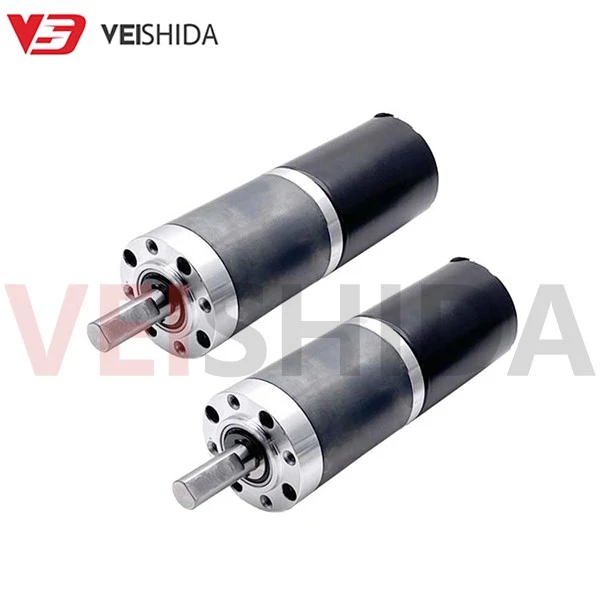

GBP42-JEC4260 Servo Gear Motor

The GBP42-JEC4260 servo gear motor by VSD is a cost-effective high-torque drive system specifically designed to handle high-load and high-temperature environments. Operating at a rated voltage of 24V, the motor achieves a no-load speed of 5000 r/min and maintains a low no-load current of 140mA, optimizing energy efficiency. With a maximum power output of 18W, the motor delivers a maximum power torque of 500 g.cm at a speed of 3550 r/min, ensuring stable performance even under heavy loads. Its starting torque of 1700 g.cm and starting current of 4A ensure rapid responsiveness and robust power support when needed.



Thanks to its high cost-effectiveness and adaptability to high-temperature environments, the GBP42-JEC4260 is widely applied in fields such as portable ultrasound equipment, infusion pumps, and medical robots. Its high torque output allows it to handle significant loads with precision, while its durability ensures reliable operation in demanding conditions. This servo gear motor not only provides dependable power for medical devices but also meets modern healthcare demands for precision and reliability, making it an indispensable driving solution in the medical field.



GBP42-JEC4260 Gear Motor Design





VSD servo gear motors excel in performance and versatility, making them the preferred high-precision, high-efficiency drive systems across numerous industries. VSD focuses on delivering high-quality, customizable servo gear motors tailored to diverse application needs, enhancing equipment performance and stability.



1. High Efficiency and Precision Control

VSD servo gear motors adopt planetary gear designs for high transmission efficiency, effectively reducing energy loss and improving overall operational efficiency. Available in both brushed DC and brushless DC variants, these motors provide precise speed and torque control for seamless execution of high-accuracy tasks.



2. Compact Design with Powerful Output

Designed with space-constrained applications in mind, VSD servo gear motors deliver robust power even in compact setups. Ideal for robots, medical instruments, smart home devices, and more, these motors integrate compact design with substantial output.



3. Diverse Customization Options

VSD offers a range of customization services, including voltage options (12V, 24V, 36V, etc.), sizes (10mm to 70mm), gear ratios (4, 10, 21, 34, 78, etc.), as well as speed and bearing configurations. Whether you require high torque, high speed, or miniature solutions, VSD provides tailored designs to meet your specific needs.



4. Stability and Durability

Exceptional stability and durability make VSD servo gear motors excel in high-load and high-precision applications. From medical robots to automated guided vehicles (AGVs), VSD motors deliver unmatched support in scenarios demanding precision and reliability.



5. Cost-Effectiveness and Reliable Supply

As a direct manufacturer, VSD eliminates intermediary costs to offer competitive pricing. With an in-house production facility and advanced testing equipment, every servo gear motor undergoes stringent quality control. VSD ensures global shipping with comprehensive customs clearance, guaranteeing timely and secure delivery.



6. Extensive Customization Experience and Customer Support

With years of industry expertise, over 95% of VSD servo gear motor customers opt for customized solutions. Offering complete OEM and ODM services, VSD provides robust technical support to meet diverse industry needs. Backed by an innovative R&D team, VSD delivers cutting-edge technology and reliable products tailored to customer requirements.



VSD servo gear motors have become the trusted choice of industry leaders, empowering customers to enhance equipment performance, optimize efficiency, and drive advancements in automation. Whatever your needs, VSD delivers premium servo gear motor solutions to fuel your success.





Servo gear motors, with their high efficiency, precision, and compact design, are extensively utilized across various industries, providing robust driving support for diverse complex equipment. Their performance is particularly remarkable in fields such as automation, healthcare, and smart home technology.



Automation Guided Vehicles (AGVs)

In the AGV sector, servo gear motors are essential core drive systems for warehousing and logistics. Featuring high torque and low energy consumption, they enable AGVs to navigate complex environments with precision, ensuring smooth transportation of goods while minimizing energy waste and maintenance costs.



Service Robots

The demand for service robots continues to grow, especially for tasks requiring precise motion, such as movement, object gripping, and posture adjustment. Servo gear motors provide stable speed control and high-precision drive, ensuring robots efficiently perform various operations and adapt to different service scenarios.



Medical Industry

In the medical field, particularly in surgical robotics, servo gear motors are indispensable due to their high precision and stability. From robotic joints to grippers and arm drive systems, these motors execute micron-level movements with accuracy, ensuring the success of surgeries and patient safety.



Smart Lock Systems

Smart locks rely on servo gear motors to drive lock cores, enabling automatic unlocking and locking mechanisms. Integrated with fingerprint recognition, these motors enhance security for both homes and businesses.



Adjustable Smart Beds and Sofas

Servo gear motors provide flexible driving support for smart beds and sofas, allowing users to adjust angles with precision based on their preferences. This feature significantly improves comfort, especially for medical beds and high-end home products.



Smart Home Security Devices

In devices like cameras, pan-tilt units, and sensors, servo gear motors precisely adjust the direction of the equipment, improving monitoring range and accuracy. They are critical components of modern smart home systems.



Ophthalmic Equipment

Servo gear motors enable precise control in microscope lens focusing systems and eye scanner positioning systems, providing healthcare professionals with high-precision imaging for more accurate diagnostics and improved patient care.



Rehabilitation Equipment

In rehabilitation devices, servo gear motors deliver stable drive systems for rehabilitation robots and motion assistance tools, aiding patients in training and recovering physical functions.



VSD servo gear motors, with their high efficiency, precision, and reliability, are widely used in various smart devices and high-precision mechanical systems. From automation and healthcare to home applications and beyond, VSD offers customized servo gear motor solutions tailored to meet the diverse needs of clients.





As a leading servo gear motor manufacturer, VSD brings over 10 years of customization expertise to deliver efficient, reliable, and precise servo gear motor solutions to customers worldwide. We specialize in providing tailored motor products across various industries, meeting application needs from automation to healthcare, from smart homes to robotics, enabling clients to enhance equipment performance and drive industry innovation.



Extensive Product Range

VSD's servo gear motor portfolio includes brushed DC and brushless DC series, supporting voltage ranges from 12V to 36V with multiple customization options, such as size, gear ratio, and speed. Whether for high-torque applications or space-constrained miniature devices, we deliver efficient, precise, and reliable drive solutions tailored to specific requirements.



Strict Quality Control and Comprehensive Testing

We understand that product quality is the top priority for our customers. At VSD, all motor products undergo rigorous quality inspection processes to ensure every servo gear motor meets high-performance standards before leaving the factory. Our testing procedures include, but are not limited to:

• Noise Testing: Ensuring low operational noise suitable for diverse environments.
• Waterproof Testing: Guaranteeing reliable operation in humid conditions, ideal for smart home, security, and medical applications.
• Lifespan Testing: Accelerated life tests validate motor durability and stability.
• Impact Testing: Ensuring motors withstand shocks during transport and usage without damage.
• Storage Testing: Verifying motor stability during extended storage periods to ensure consistent performance.



Advanced Performance Analysis

VSD is equipped with a state-of-the-art product measurement center and specialized testing equipment to ensure every servo gear motor meets the highest standards. Key evaluations include:

• Hardness Measurement: Ensuring wear resistance and longevity of motor components.
• Comprehensive Performance Testing: Evaluating overall motor efficiency across diverse working conditions.
• Magnetic Field Distribution Testing: Checking uniformity to optimize rotational efficiency and stability.
• Leakage Testing: Verifying reliability and protection in sealed environments.
• Magnetic Flux Density Analysis: Enhancing motor transmission efficiency and power density.



Global Supply Capability

As a direct supplier, VSD offers competitive pricing alongside robust production and delivery capabilities. Our production facility is equipped with advanced automation and quality inspection systems, ensuring strict control at every stage. Certifications such as ISO and CE attest to our commitment to product quality and reliable delivery.



Serving a Global Client Base

VSD servo gear motors are widely utilized in industries such as AGVs, service robots, medical robotics, smart homes, and rehabilitation equipment, with a global customer footprint. We are customer-focused, offering comprehensive OEM and ODM services to ensure every client's needs are promptly addressed and satisfied.



With strong technical capabilities, rigorous quality control, and a global service network, VSD has become one of the world's leading servo gear motor manufacturers. We are committed to providing efficient and reliable drive solutions, helping clients stand out in competitive markets while driving continuous innovation and development in the industry.
