Brushless Gear Motor

The VSD brushless gear motor is an innovative product that combines a high-performance brushless DC motor with a precision gearbox. Featuring advanced planetary gear design and worm gear technology, it delivers exceptional power output and precise motion control. Characterized by high torque, this motor ensures stable and reliable performance in complex industrial and automation applications. The brushless DC geared motor supports CW/CCW rotation, is equipped with dual ball bearings and a hollow shaft, and offers enhanced wear resistance and stability for smooth operation over extended periods.



VSD brushless gear motors are equipped with metal gears, ensuring outstanding durability even during high-speed operations. To meet diverse application requirements, VSD offers extensive customization options, including output shafts, wires, wire terminals, voltage, speed, and power. Additionally, the motor can be integrated with a planetary gearbox or a magnetic encoder, catering to more complex control needs.



The motor offers IP67-rated waterproof and dustproof protection, significantly enhancing its adaptability and durability in harsh environments. Standard voltage options include 12V and 24V, allowing users to choose specifications based on device requirements. With high torque output and precise control capabilities, this motor is especially suitable for high-precision positioning and repetitive applications, making it widely applicable in automation equipment, robotics, and intelligent electric tools.



The motor features robust overload resistance, enabling it to withstand short-term loads exceeding its rated capacity without damage, ensuring stable operation under heavy-load conditions. Whether integrated with control systems, drive systems, or feedback devices, the VSD brushless gear motor seamlessly connects to provide a comprehensive solution.



VSD has been dedicated to the motor industry for over a decade. With a strong R&D team and advanced production facilities, the company has become a key global partner in the motor industry. By offering direct factory supply and eliminating middlemen, VSD provides competitive pricing. All motors undergo multiple rigorous tests, including noise tests, waterproof tests, lifetime tests, impact tests, storage tests, and salt spray tests, ensuring consistent product quality. The fully automated production line, equipped with over 300 advanced machines, produces more than 200,000 units daily, efficiently meeting global customer demands.





VSD - 25A2430 Brushless Gear Motor

The 25A2430 brushless gear motor is a high-performance DC gear motor designed for precise motion control, making it ideal for applications such as wheelchair robots and surgical robots. Key features include a low-backlash design, high-resolution encoder support, and outstanding performance, delivering powerful drive capabilities for high-precision applications.



The motor is available in 12V and 24V versions:
12V Version: No-load speed of 20 r/min, maximum power output of 0.66W, maximum power torque of 458.99 mN.m, and startup torque of 1514.49 mN.m.24V Version: Enhanced no-load speed of 31 r/min, maximum power of 1.53W, maximum power torque of 638.77 mN.m, and startup torque of 2432.88 mN.m.These specifications ensure efficient operation under various load conditions, supporting stable performance for smart devices.



VSD - 25A2430 Brushless Gear Motor Design

VSD - 25A2430 Brushless Gear Motor Performance



VSD - 25A2418 Brushless Gear Motor

The 25A2418 brushless gear motor is a DC gear motor offering high torque, low noise, and high efficiency, specifically designed for modern devices such as smart locks and smart home appliances. Its superior performance meets complex drive requirements while ensuring reliability and durability, making it ideal for high-frequency usage scenarios.



The motor is available in 12V and 24V versions:

12V Version: No-load speed of 18 r/min, maximum power output of 0.63W, and maximum power torque of 483.08 mN.m.24V Version: No-load speed of 40 r/min, maximum power output of 2.71W, maximum power torque of 845.72 mN.m, and startup torque of 3514.16 mN.m.This motor excels in high-precision motion control, effectively reducing operational noise and providing a more comfortable user experience.



VSD - 25A2418 Brushless Gear Motor Design

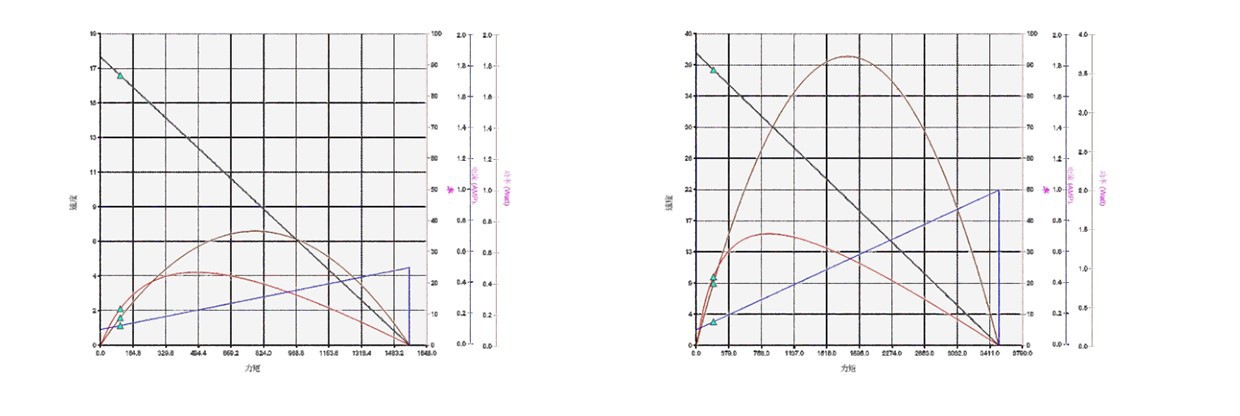

VSD - 25A2418 Brushless Gear Motor Performance



VSD - 37W2820 Brushless Gear Motor

VSD's 37W2820 Brushless Gear Motor is designed for high-load and durability, making it suitable for lifting equipment and telescopic drive systems. With its brushless thrust technology, this motor delivers excellent pushing force, supports higher load operations, and ensures stability and efficiency in long-term use. The brushless design not only extends the motor's lifespan but also reduces maintenance costs, making it an ideal choice for modern automation equipment and mechanical systems.



The 37W2820 Brushless Gear Motor's 24V voltage specification and 10Ω resistance design enable precise thrust output based on different duty cycles. For example, at a 10% duty cycle, the motor can provide a 10kg thrust, while at a 90% duty cycle, the thrust can reach 110kg. Whether in lifting platforms, telescopic arms, or other high-load equipment, the 37W2820 motor reliably provides the required power, meeting the demands of various complex applications.



VSD - 37W2820 Brushless Gear Motor Design

VSD - 37W2820 Brushless Gear Motor Performance



VSD - 28P2820 Brushless Gear Motor

VSD's 28P2820 Brushless Gear Motor is designed for high efficiency and long-term operation, providing stable power output and precise control. Its voltage range of 8V to 16V or 18V to 26V makes it adaptable to various industrial applications. Under no-load conditions, the motor achieves a speed of 137 r/min (12V) or 281 r/min (24V). At maximum power, it can deliver up to 6.765W or 22.767W, making it suitable for high-torque applications.



The 28P2820 Brushless Gear Motor also features waterproof and dustproof capabilities, ensuring stable operation in harsh environments. With dual ball bearings and an efficient precision control system, the motor operates smoothly and has an extended lifespan. Its strong starting torque (up to 6294.059 mN·m) and low-current start characteristics make it especially suitable for conveyor belt drives, automated assembly systems, and other high-load, precision-control devices, offering unmatched power and reliability.



VSD - 28P2820 Brushless Gear Motor Design

VSD - 28P2820 Brushless Gear Motor Reduction Ratio

HEIGHT OF PLANETARY GEARBOX	28 PIANETARY GEAR REDUCTION RATIO
FIRST LEVEL PLANETARY HEIGHT 27.5mm	3.7	2.18	19	22	27	115	139
SECOND LEVEL PLANETARY HEIGHT 35.5mm	14	16	71	82	100	427	516
THIRD LEVEL PLANETARY HEIGHT 43.5mm	50	59	262	304	369
FOURTH LEVEL PLANETARY HEIGHT 51.5mm	189	218
	596	721



VSD - 36P3626 Brushless Gear Motor

VSD's 36P3626 Brushless Gear Motor combines a high-efficiency planetary gearbox design with outstanding torque output and stable performance. Operating within a voltage range of 8V to 16V or 18V to 26V, with rated voltages of 12V or 24V, it delivers a maximum torque of up to 395.895 mN·m (12V version) and 681.00 mN·m (24V version). At maximum power speed, it provides 1.569W or 6.580W, meeting various high-load requirements.



The 36P3626 motor exhibits strong starting torque (up to 2943.00 mN·m) and ensures efficient starting and operation through precise current control. Whether used in automated handling equipment or packaging machines, this Brushless Gear Motor provides lasting and stable power support. Its excellent high-load capacity makes it suitable for high-torque, low-noise, and high-efficiency industrial applications.



VSD - 36P3626 Brushless Gear Motor Design



VSD - 36P3626 Brushless Gear Motor Performance



VSD - 36P555 Brushless Gear Motor

VSD's 36P555 Brushless Gear Motor, featuring a metal gear design, offers exceptional torque output and broad application adaptability. Operating within a voltage range of 8V to 16V or 18V to 26V, with rated voltages of 12V or 24V, it delivers remarkable performance under various working conditions. The no-load speed reaches 227 r/min (12V version) or 463 r/min (24V version). At maximum power output, it achieves torques of 588.8 mN·m (12V version) and 892.56 mN·m (24V version).



The motor demonstrates a powerful starting torque (up to 7302.196 mN·m) and provides stable operation under high-load and high-power conditions. Maximum power outputs reach 11.6W and 37.999W, ensuring sustained and efficient power for applications like smart hardware and air pumps. The metal gear system of the 36P555 motor excels across numerous industrial sectors, meeting the demands of high-intensity working environments.



VSD - 36P555 Brushless Gear Motor Design



VSD - 36P555 Brushless Gear Motor Performance

HEIGHT OF PLANETARY GEARBOX	36 PIANETARY GEAR REDUCTION RATIO
FLRST LEVEL PLANETARY HEIGGHT 29mm	3.7	5.18
SECOND LEVEL PLANETARY HEIGGHT 37.1mm	14	16	19	22	27
THIRD LEVEL PLANETARY HEIGGHT 45.2mm	50	59	71	82	100	115	139
FOURTH LEVEL PLANETARY HEIGGHT 53.3mm	189	218	262	304	369	427	516
	596	721





VSD - 37B385 Brushless Gear Motor

VSD's 37B385 Brushless Gear Motor is a compact high-performance motor designed for precision applications. It comes in two specifications to suit different working environments and requirements. The 5V version has a no-load speed of 38 r/min, while the 12V version reaches 100.83 r/min. At maximum power, the 5V version delivers a torque of 667.323 mN·m, while the 12V version provides 1269.520 mN·m, with maximum power outputs of 1.909W and 10.701W, respectively.



This Brushless Gear Motor exhibits a high starting torque of up to 6294.230 mN·m (12V version), ensuring robust power output to meet the demands of precision devices like surgical robots and dental equipment. Equipped with a high-resolution encoder and precision gear system, the VSD 37B385 motor offers precise control, excellent stability, and durability. The brushless design minimizes friction and extends the motor's lifespan, making it an ideal choice for high-precision equipment.



VSD - 37B385 Brushless Gear Motor Design

VSD - 37B385 Brushless Gear Motor Performance



VSD - 37B520 Brushless Gear Motor

The VSD 37B520 brushless gear motor is specifically designed for compact, efficient drive applications. This motor is available in two versions, catering to different voltage requirements. The 12V version achieves a no-load speed of 31.4 r/min, delivering a torque of 196 mN·m at maximum power, meeting precision application needs. The 24V version offers higher performance, with a no-load speed of 79.5 r/min and a maximum power torque of 367.717 mN·m, ensuring outstanding power output under larger loads.



Equipped with a servo gearbox and D-shaft bearing design, the motor features a compact size and efficient performance. The brushless motor design reduces maintenance demands while extending service life. With a starting torque of up to 1744.129 mN·m, it is suitable for power tools, electric valves, and handheld electric screwdrivers in high-load applications. Whether for precise control or high-efficiency output, the VSD 37B520 brushless gear motor provides reliable and stable power support for your devices.



VSD - 37B520 Brushless Gear Motor Design

VSD - 37B520 Brushless Gear Motor Performance



VSD - 37B3640 Brushless Gear Motor

The VSD 37B3640 brushless gear motor offers exceptional torque output and high-load capacity, making it the ideal choice for service robots and industrial robots requiring high-performance capabilities. This motor comes in two versions to accommodate different voltage requirements. The 12V version delivers a no-load speed of 89 r/min and a maximum power torque of 1514.818 mN·m, while the 24V version achieves a no-load speed of 183 r/min and a maximum power torque of 2441.955 mN·m, ensuring robust power output under high-load conditions.



Equipped with a servo reduction system, the motor combines efficiency with precise speed control. Its starting torque of up to 13126.130 mN·m and a starting current of 11.043 A ensure the required power during initial operation. The brushless design minimizes maintenance demands and extends the motor's lifespan, making it ideal for service robots, industrial robots, and other applications requiring high torque and high-load capabilities. The VSD 37B3640 brushless gear motor provides solid power support, enhancing the reliability and efficiency of your automated systems.



VSD - 37B3640 Brushless Gear Motor Design

VSD - 37B3640 Brushless Gear Motor Performance



VSD - 37B555 Brushless Gear Motor

The VSD 37B555 brushless gear motor integrates high efficiency with low startup power, making it especially suitable for smart locks, automotive trunk systems, and other applications requiring precise control and high-load capacity. The motor performs outstandingly in both 12V and 24V configurations. The 12V version delivers a no-load speed of 38.5 r/min and a maximum power torque of 800.296 mN·m, while the 24V version reaches a no-load speed of 80 r/min with a maximum power torque of 1253.692 mN·m, ensuring quiet operation and high efficiency across a range of devices.



The motor's advanced low startup current design enables smooth startup, reducing inrush current spikes. Its brushless structure ensures quieter operation and higher work efficiency. Whether for precise control of smart locks or seamless trunk operation, the VSD 37B555 motor provides powerful and stable support, enhancing product reliability and user experience.



VSD - 37B555 Brushless Gear Motor Design

VSD - 37B555 Brushless Gear Motor Performance



VSD - 37B3626 Brushless Gear Motor

The VSD 37B3626 brushless gear motor combines high efficiency with cost-effectiveness, making it ideal for robotic vacuum cleaners and smart vacuum systems. This motor delivers outstanding power output, achieving a maximum power torque of 800.296 mN·m in its 12V version and 1253.692 mN·m in the 24V version, ensuring the ability to handle complex cleaning tasks with ease. Its tower design guarantees high torque output, enhanced stability, and durability, making it perfectly suited for high-load cleaning robots.



With a low startup current, the motor minimizes current spikes, extending the lifespan of devices. Its low noise and high efficiency make it an ideal choice for household smart cleaning devices, providing strong and steady power support to boost work efficiency and cleaning performance. Whether tackling fine dust on floors or more challenging obstacles, the VSD 37B3626 motor excels, ensuring robotic vacuums and smart cleaners deliver exceptional performance and value.



VSD - 37B3626 Brushless Gear Motor Design

VSD - 37B3626 Brushless Gear Motor Reduction Ratio

HEIGHT OF PLANETARY GEARBOX	37 PIANETARY GEAR REDUCTION RATIO
SECOND LEVEL TOWER HEIGHT 18mm	6.8	10
THIRD LEVEL TOWER HEIGHTE 22.5mm	20	30
FOURTH LEVEL TOWER HEIGHTE 24mm	61	90
FIFTH LEVEL TOWER HEIGHTE 26.5mm	104	121.5	184	270
SIXTH LEVEL TOWER HEIGHTE 29mm	310.65	414	432	552	810
SEVENTH LEVEL TOWER HEIGHTE 31.5mm	1243	1657	2430



VSD - 42P4236 Brushless Gear Motor

The VSD 42P4236 brushless gear motor is a high-efficiency motor specifically designed for automotive applications, such as sunroof regulators and car seat adjusters. It excels in performance, particularly the 24V version, which delivers up to 2279.266 mN·m of torque at maximum power and achieves a peak power output of 81.964W. The motor incorporates a planetary gear system, offering enhanced efficiency and durability, making it suitable for high-load and high-intensity work environments. Whether under extreme starting conditions or during prolonged continuous operation, the 42P4236 maintains stable power output, ensuring reliability and durability for your devices.



In addition, the low-maintenance cycle of the VSD 42P4236 brushless gear motor reduces long-term upkeep, lowering maintenance costs. With a starting torque of 18430.099 mN·m, it quickly delivers robust power to handle high-load tasks effortlessly. Through optimized current management and its planetary gear design, the motor maintains low energy consumption, further improving overall operational efficiency. For automotive seat adjustment systems and sunroof regulators requiring precise control and high-performance output, this motor is an ideal choice, enhancing the functionality and comfort of in-vehicle control systems.



VSD - 42P4236 Brushless Gear Motor Design

VSD - 42P4236 Brushless Gear Motor Reduction Ratio

HEIGHT OF PLANETARY GEARBOX	42 PIANETARY GEAR REDUCTION RATIO
FIRST LEVEL PLANETARY HEIGHT 32.4 mm	3.7	5.18
SECOND LEVEL PLANETARY HEIGHT 43 mm	14	19	27
THIRD LEVEL PLANETARY HEIGHT 53.8 mm	50	71	100	139
FOURTH LEVEL PLANETARY HEIGHT 64.8 mm	189	262	369	516	721





Brushless gear motors combine precision reduction systems with brushless DC motors, creating high-performance drive units widely used in applications requiring efficient power transmission. Key features include:



Compact Design for Broad Compatibility

Brushless gear motors feature a compact structure, making them suitable for space-constrained devices, with outstanding performance in robotics, medical instruments, and automation equipment.



Planetary Gear Technology for Enhanced Efficiency

The planetary gear reduction system ensures efficient power conversion, delivering smooth operation, low noise, and improved durability.



High Torque Output for Heavy Load Applications

With powerful high-torque performance, brushless gear motors maintain strong driving force even under heavy loads, making them ideal for demanding applications.



Precise Reduction and Exceptional Control

The precise reduction system enables highly accurate speed control, supporting stable positioning and repeatable operations, ideal for industrial automation and precision equipment.



Dual Ball Bearings and Metal Gears

Equipped with dual ball bearings and metal gears, these motors offer enhanced wear resistance, extended service life, and reliable long-term operation.



Strong Customization Options

Customizable parameters include output shafts, voltage (typically 12V or 24V), speed, and power. Integration of planetary gearboxes or magnetic encoders is also supported to meet diverse application needs.



Excellent Compatibility

Brushless gear motors are compatible with various control systems, drive systems, and feedback devices, ensuring seamless integration and application versatility.





With their efficiency, precision, and durability, brushless gear motors excel in numerous fields, providing powerful drive solutions for modern intelligent devices and automation systems:



Wheelchair Robots: Deliver robust power, enabling navigation over obstacles and complex operations, enhancing smart functionality and user convenience.



Surgical Robots: Provide precise motion control for joints, grippers, and arm drives, meeting stringent requirements for accuracy and stability in medical applications.



Smart Door Locks: Drive mechanical components for automatic locking/unlocking and fingerprint recognition, offering efficient and secure smart solutions for homes and offices.



Smart Appliances: Power key components like rollers, motor fans, and wheels in devices such as robotic vacuum cleaners, ensuring efficient and quiet operation during cleaning tasks.



Smart Kitchen Devices: Support intelligent cooking with automated control for food processing, oven door operation, temperature adjustment, and time management.



Conveyor Belt Drives: Power industrial conveyor systems, ensuring stable and efficient material transport for smooth production processes.



Automated Assembly Systems: Achieve precise component positioning and driving operations, improving assembly efficiency and production accuracy to meet high industrial automation standards.



Automated Handling Equipment: Provide reliable power for material handling, ensuring stability and efficiency in logistics, warehousing, and production automation.



The extensive application of brushless gear motors enhances device performance and efficiency, driving the progress of intelligence and automation across industries, making them a core driving force for modern intelligent systems.





Quality assurance is at the core of ensuring the performance stability and reliability of brushless gear motors. VSD adheres to stringent quality control standards and utilizes advanced testing technologies to ensure that every brushless gear motor meets the demands for high performance and durability, providing customers with an exceptional experience.



Multiple Certifications for Trusted Quality

VSD's brushless gear motors have obtained ISO 9001:2015, IATF 16949:2016, and ISO 14000 certifications, globally recognized quality management systems. These certifications cover every stage of the product lifecycle, from research and development to production, ensuring product quality stability and environmental compliance.



Rigorous Testing for Reliability

Every brushless gear motor undergoes a series of rigorous performance tests before leaving the factory, including:

• Noise Test: Ensures low operational noise, suitable for applications requiring a quiet environment.
• Waterproof Test: Verifies the motor's ability to operate reliably in damp or wet conditions.
• Lifetime Test: Simulates long-term usage environments to evaluate the motor's service life.
• Impact Test: Ensures structural integrity during transportation or accidental impacts.
• Storage Test: Validates performance stability under various storage conditions.
• Salt Spray Test: Ensures durability in corrosive environments.



Precision Testing Equipment for Quality Assurance

VSD is equipped with advanced testing equipment and technologies to comprehensively evaluate the performance of brushless gear motors, including:

• Torque Tester: Measures the motor's output torque to ensure suitability for high-torque applications.
• Roundness and Roughness Tester: Checks the precision of critical components, enhancing operational smoothness.
• Vibration Tester: Assesses the motor's dynamic balance to minimize vibrations during operation.
• Hardness Tester: Verifies the hardness of gears and key components to ensure wear resistance and extended service life.
• High-Precision Balancer: Improves rotor balance performance for optimized operational efficiency.
• Magnetic Field and Flux Density Analyzer: Conducts precise analysis of the motor's magnetic properties, ensuring control accuracy and stability.



Efficient Warranty Services

For issues caused by non-human factors, VSD offers warranty services ranging from 3 months to 1 year. Customers can return defective products, and our quality inspection team will promptly diagnose and provide solutions to safeguard customer rights.



VSD prioritizes customer needs and, as a professional manufacturer of brushless gear motors, ensures superior product performance through strict quality assurance. Alongside competitive wholesale pricing, VSD is dedicated to establishing long-term and trustworthy partnerships with its customers.
