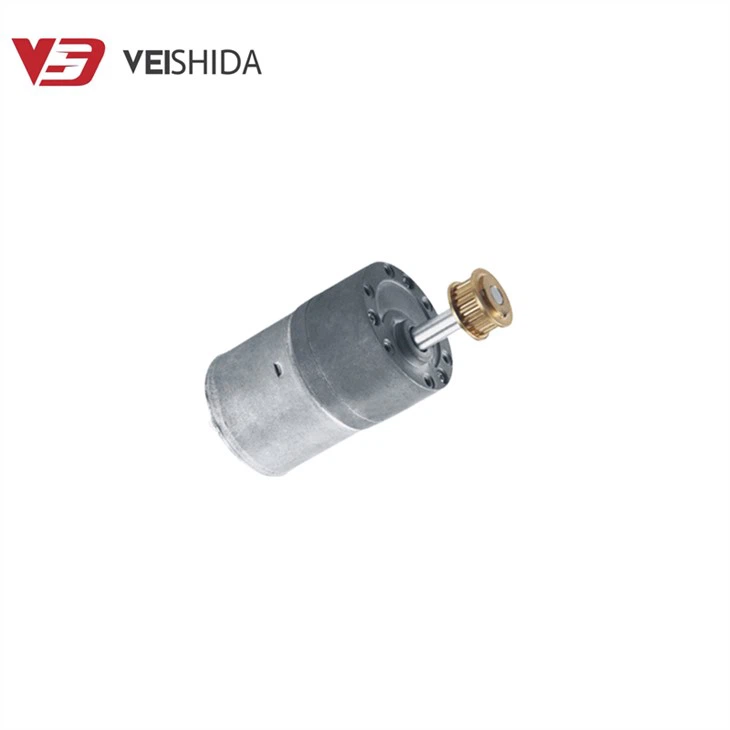

36mm Brushless Planetary Gear Motor
Diameter 31mm,
length: 37mm;
size: 36*30mm
Brushless planetary gear motor are widely used in robotics, medical, beauty, maternal and child health care, smart home, vehicle, office, model aircraft and other fields. We have many years of experience in the production and development of micro-motors, escort your products, and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3 months to 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | GB37-EC3630 |
Usage | Robot head rotation, robot power system, electronic products, smart home, car drive, equipment drive system, intelligent robot, drone, robotic arm, etc. |
Type | Gear motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Protect Feature | Customized |
Efficiency | 90% |
| Rated valtage | 12 (V) |
| No load speed | 45 r/min |
| No load current | 0.40 (A) |
| Starting torque | 7173.563 mN.m |
| Dimensions | 36*30（mm） |
Payment terms | 30% advance, 70% balance |
Certificate | CCC |
Customizated | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description
An average of two months to develop a new motor
Product Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | |||||
NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
| 12 | 45 | 0.400 | 32 | 1.030 | 2007.20 | 6.812 | 7173.56 | 2.650 |
Product Size

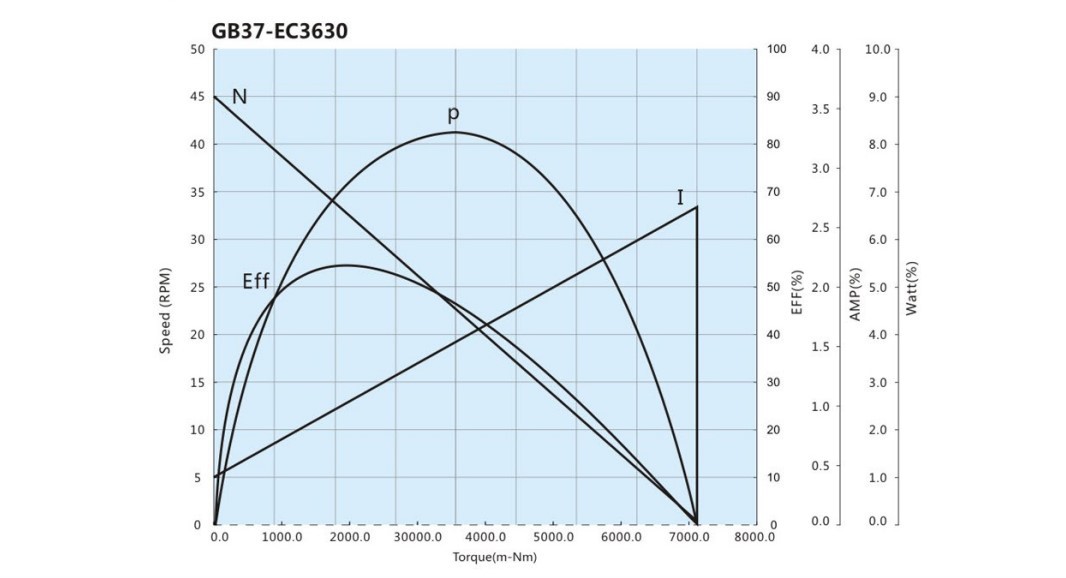

Performance Curve
The above specifications are for reference only, the type and parameters of the specific gear motor can be customized
Product Features
Large torque, long life, low noise, high control precision, full function, low vibration, high energy saving, high-tech content, space saving, strong overload capacity, technical data can be customized
Product Details
| 100% actual photos |
|
End cap: Use high-quality raw materials to increase the service life, fix the rotor of the motor, and have a heat dissipation effect. | The bearing adopts low noise and wear-resistant bearing(Bearings can be customized) | |
| 100% actual photos |
|
Chassis: selected high-quality materials with high hardness, high temperature resistance, corrosion resistance, wear resistance and rust resistance, with a longer service life | Rotor: pure copper wire winding, high quality iron core,reduce current resistance, low heat generation, low loss |
Company Strength
Our advantages
1. Low energy consumption, superior performance, and the efficiency of the reducer is over 95%; the gears are made of high-strength low-carbon alloy steel through carburizing and quenching.
2. Select high-quality segment steel material, rigid cast iron box, gear surface after high-frequency heat treatment; high transmission rate;
3. Maximum versatility, the mechanism is contained in a cylindrical gearbox, which can be installed in any space, compact size and lower weight, 50% reduction in diameter, and the same torque output as an equivalent parallel shaft gear.
4. All-metal gears and double ball bearings are used to ensure that the motor can withstand the harshest applications.
5. To meet the different needs of users in various fields, bearings, speed, protection functions, etc. can be customized according to different needs of customers.
6. Modern production process, high production efficiency, provide ODM and OEM services.
Product Certificate
Some of our partners
We have been committed to the motor industry for many years, covering most of the European and American markets, and look forward to becoming your long-term partner in China.
Application
Transport Packing
Shockproof foam packaging, suitable carton size.If you have special packing needs, please contact us in advance.
Buying Guides
Payment & Delivery
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a factory. We specialize in micro DC motors and DC gear motors for more than 10 years.
2. Q: What is the customer's payment term?
A: You can pay online with Mastercard, Visa, etc. Customers can also pay with PayPal or wire transfer etc.
3.Q: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize suitable motors according to customer's requirements.
4. Q: Do you have motor certificate?
A: Yes, we have CE, FCC, ISO etc. If you have other certificate requirements, we can apply for you.
5. Q: My package is missing products. what can I do?
A: Please contact our professional team, we will confirm your order by the package contents. We apologize for any inconvenience caused.
