DC Hub Motor

Ideal for electric vehicles, VSD's DC Hub Motors feature high quality 0.6mm enamelled copper wire windings that ensure efficient operation in the power range of 180W to 1000W, with voltages of 12V, 24V, 36V or 48V, allowing flexibility to adapt to different application requirements. The motor is built with 30 neodymium magnets and an aluminum housing for increased durability and heat dissipation, while rigid non-slip rubber tires provide superior grip and stability.



On the technical side, VSD's DC hub motor is equipped with three magnetic position sensors, supported by two bearings and seals, ensuring high-precision control and smooth operation with low noise and superior performance. The large torque and long life make it the best choice for all kinds of electric vehicles, whether it is an electric bicycle or a scooter, which can provide strong power support.



In addition, the high customizability of VSD's DC Hub Motors is one of the highlights. Users can adjust the material, torque, voltage, speed, current, protection and size according to their specific needs, ensuring a perfect fit for various application scenarios. With VSD, you will experience the superior power and efficiency of innovative technology!





Product 1:

Model number:	8.0 inch Hub Motor
Typical applications:	inspection robots, lawn mowers, scooters
Main hot spot:	High power, light weight, servo control gearless direct drive
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor details picture：



DC Hub Motor design:



Motor performance：



Product 2:

Model number:	VSD-HUB-4.0
Typical applications:	Cleaning robots, wheelchairs, scooters
Main hot spot:	Low noise, high torque, multiple encoder output modes optional
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



servo motor specifications：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
18~26	4.2	800	0.6	638	2.369	723.872	48.389	3582.358	9.356
18~38	6.0	1227	0.6	1017	2.902	941.727	100.304	5496.274	14.034



Motor details picture：



DC Hub Motor design:



Motor performance：



Product 3:

Model number:	VSD-HUB-4.5
Typical applications:	Electric scooters, electric bicycles, disinfection robots
Main hot spot:	small size, high friction coefficient, Multi-encoder configuration
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



servo motor specifications：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
20~36	36	630	0.800	578	8.803	3861.317	233.523	46352.250	96.875



Motor details picture：



DC Hub Motor design:



Motor performance：



Product 4:

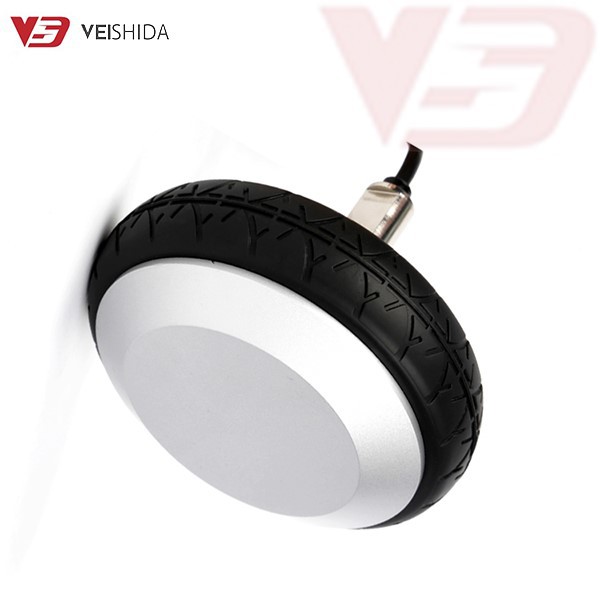

Model number:	VSD-HUB-5.5
Typical applications:	Logistics and transportation robots, electric motorcycles, cleaning robots
Main hot spot:	High control accuracy, quiet, direct drive, external rotor
Custom items:	Qutput shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



servo motor specifications：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
18~26	24	310	0.16	279	1.433	1058.371	30.908	10540.176	12.842
18~50	48	373	0.096	337	0.912	11130.638	39.907	111874.321	8.668



Motor details picture：



DC Hub Motor design:



Motor performance：



Product 5:

Model number:	VSD-HUB-6.5
Typical applications:	Service robots, automated guided vehicles, warehouse robots
Main hot spot:	Super large torque, outer rotor structure, direct drive, low noise
Custom items:	Output shaft, Lead wire, Connector, Mounting hole, Speed, Voltage



Motor parameters：

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
Applicable range	Rated value V	Speed ​​r/min	Current A	Speed ​​r/min	Current A	Torque mN.m	Power W	Torque mN.m	Current A
18~26	24	310	0.16	279	1.433	1058.371	30.908	10540.176	12.842
18~50	48	373	0.096	337	0.912	11130.638	39.907	111874.321	8.668



Motor details picture：



DC Hub Motor design:





Motor performance：







Hub motors play a vital role in the powertrain of an electric vehicle. With its excellent performance and reliability, VSD's brushless DC Hub Motors have become the best choice for electric bicycles, logistics transportation robots and food delivery robots.



High quality materials

VSD's front and rear hub motors are made of high-quality rubber and steel, ensuring that the motors are of high strength and not easily damaged. This high durability allows the motors to operate stably in a variety of harsh environments.



Sensitivity and convenience

Our motor design is sensitive, easy to install and operate, users can easily and quickly use, reducing the cost of maintenance and replacement.



Brushless belt with Hall motor

VSD's brushless hub motors are equipped with brushless belts and Hall motors, which guarantee the ruggedness of the motors and avoid the wear problems of traditional motors, while greatly reducing noise.



Custom Design Services

In order to meet the needs of different customers, VSD provides OEM and ODM services to support personalized custom design, so that you can adjust the motor performance according to the specific needs of the application.



A wide range of applications

VSD's DC Hub Motor has a wide range of application, not only limited to electric bicycles, but also can be applied to logistics transportation robots and food delivery robots and other fields to help various mobile devices run efficiently.



Excellent heat dissipation performance

Our motors are designed with aluminum housing, which has excellent heat dissipation effect, ensuring that the motor can maintain good performance under long running.



Excellent control accuracy

VSD's hub motor has high torque, low noise and control accuracy up to servo type, providing smooth and precise power output to adapt to a variety of driving needs.





As a leading manufacturer of DC Hub Motors in China, VSD is proud to have its own factory equipped with more than 40 efficient assembly lines and more than 300 advanced automation equipment. These facilities not only ensure the high efficiency of production, but also enhance the quality of our products.



Professional R & D team

We have more than 20 experienced R&D personnel, focusing on the design and innovation of DC Hub Motors, to ensure that our products are always at the forefront of the industry. Our factory supports customers to visit the site, so that you can witness our production process and quality control.



Market supply of DC Hub Motors

VSD has long been providing high torque DC Hub Motors for the European and American markets, and has won a good reputation and trust. Whether it's electric vehicles or other applications, our motors offer powerful and reliable power solutions.



Custom service with packaging

We understand the needs of different customers, so we offer customized services. If you have special packaging needs, please contact us in advance. The packing size of our foam box is 350265280mm, the outer packing size of the carton is 365275320mm, and the weight of each box is 16.7kg, which is suitable for the safe transportation of 350 pieces of motors.



Direct sourcing with price transparency

By choosing a VSD as your supplier, you can get a quote directly from the manufacturer and avoid the extra costs that come with middlemen. We provide a transparent price list to ensure that you get the most competitive price when sourcing DC Hub Motors.



VSD Factory is committed to providing customers with high quality DC hub motors and winning your trust with reasonable prices and excellent service. Please feel free to contact us for the latest quotation and product information, let us work together to promote your project success!
