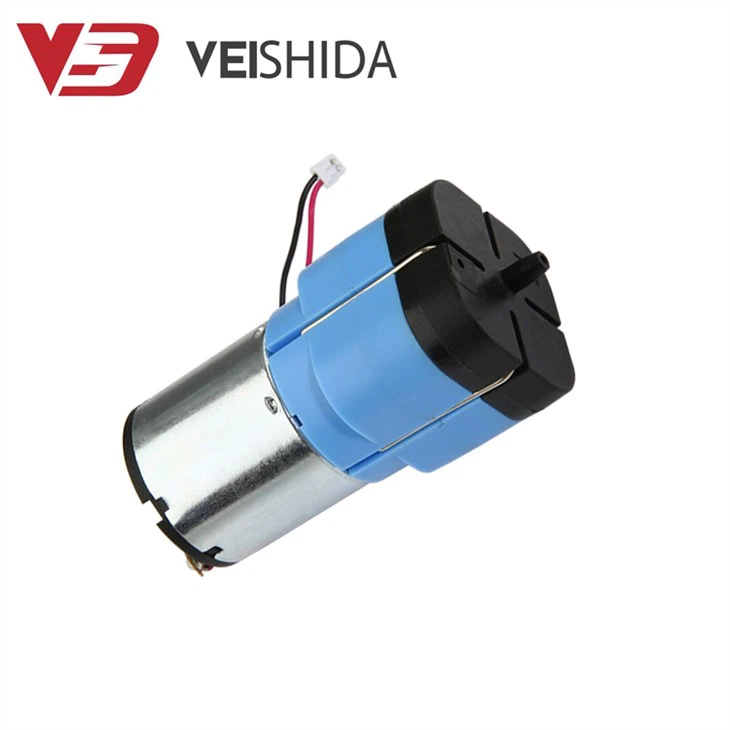

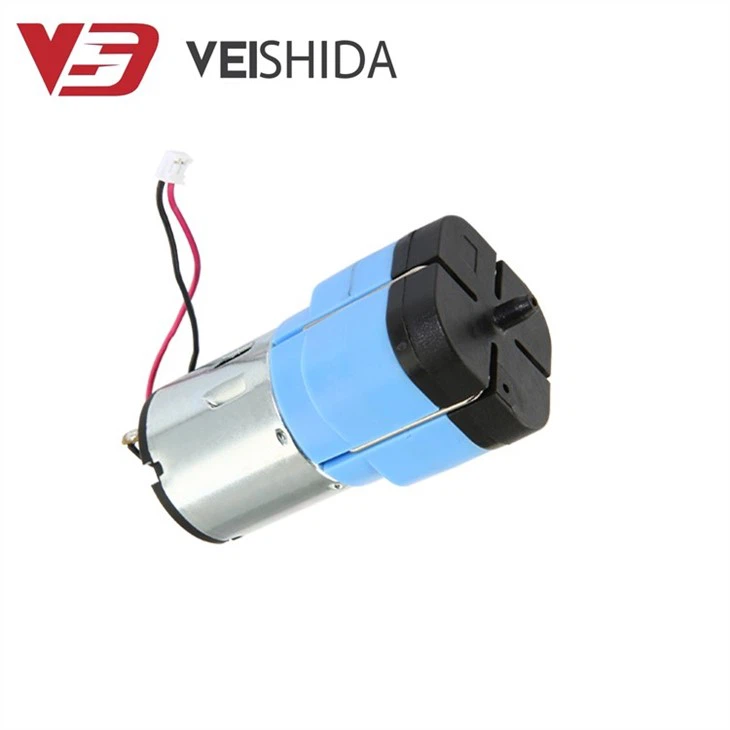

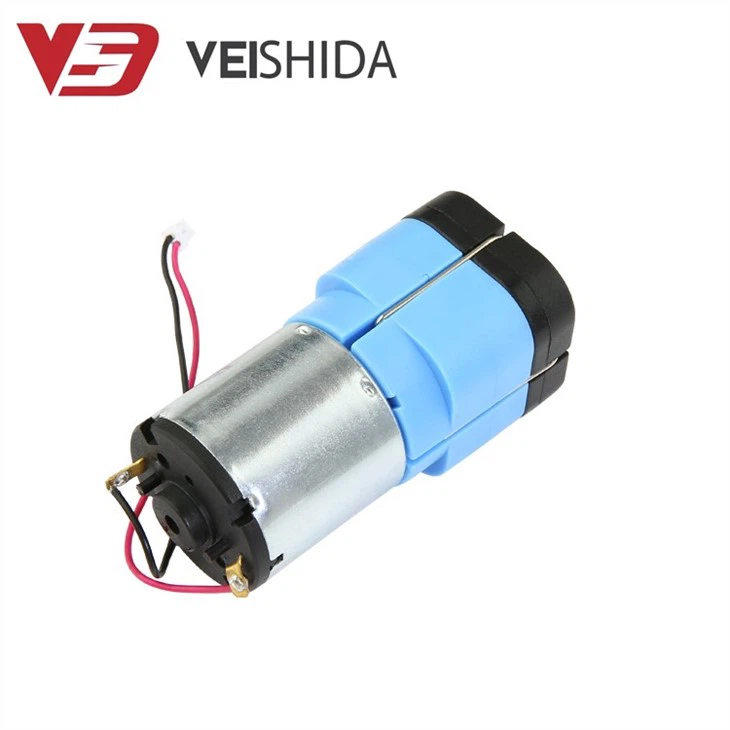

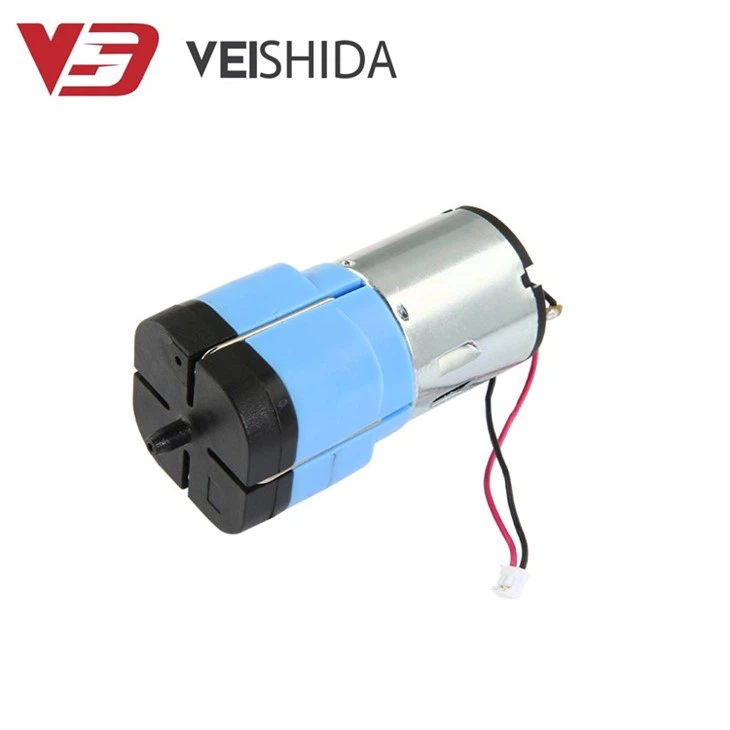

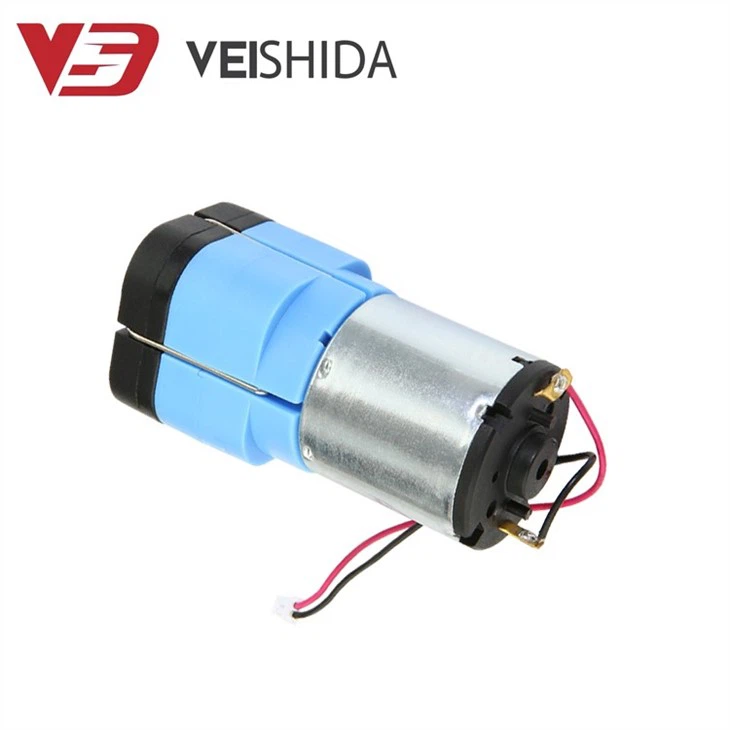

Vacuum Pump For Rechargeable Spray Gun
Outer Diameter: 23mm,
Motor Length: 30mm,
Pump Length: 65mm,
Widely used in medical, drone, beauty, maternal and child health care, smart home, vehicle, office, model aircraft, toy models, power tools, robots and other fields. We have many years of experience in micro-motor production and development, escort your products, and provide customers with flexible and professional customized services.
Description
The rated voltage of the Vacuum pump for rechargeable spray gun is DC 6V. It operates in a low-voltage environment. The pump body adopts a brushless DC motor, which reduces interference and sparks and prolongs its service life. The direction of the air nozzle (air inlet and outlet), flow rate, pressure, motor (length and length) can be customized. , thickness, life) and other parameters, widely used in drinking water treatment, family housing, industry, public utilities, irrigation and agriculture and other fields
Company Highlights
Overview
Warranty | 3 months - 1 year |
Place of Origin | Shenzhen, China |
Brand Name | Vshida |
Model Number | VWP-3206 |
Usage | drinking water treatment, family housing, industry, public utilities, irrigation and agriculture，Smart home, oxygen injection, disinfection gun, pedicure machine, massager, medical equipment, environmental protection, industry, etc. |
Type | Micro air pump |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Diaphragm pump |
Load Noise | ≤70dB |
Protect Feature | Waterproof/Fireproof/Totally Enclosed |
Rated Voltage | 6 V |
Rated Current | ≤2000mA |
| Standard/Non-standard | Non-standard |
Max Pressure | ≥300mmHg |
| Air flow | ≥6LPM |
| Life test | ≥400H |
| Inflation Time | ≤5S（500cc） |
Payment terms | 30% advance, 70% balance |
Certificate | CE |
Customized | Acceped |
Product Description
Product Parameter
Rated Voltage | Rated Current | Max Pressure | Air Flow | Inflation Time | Maximum pressure | Noise Withload | Life test |
| DC 6.0V | ≤3000mA | ≥300mmHg | ≥6LPM | ≤6S（500cc） | >190Kpa | ≤70dB | ≥400H |

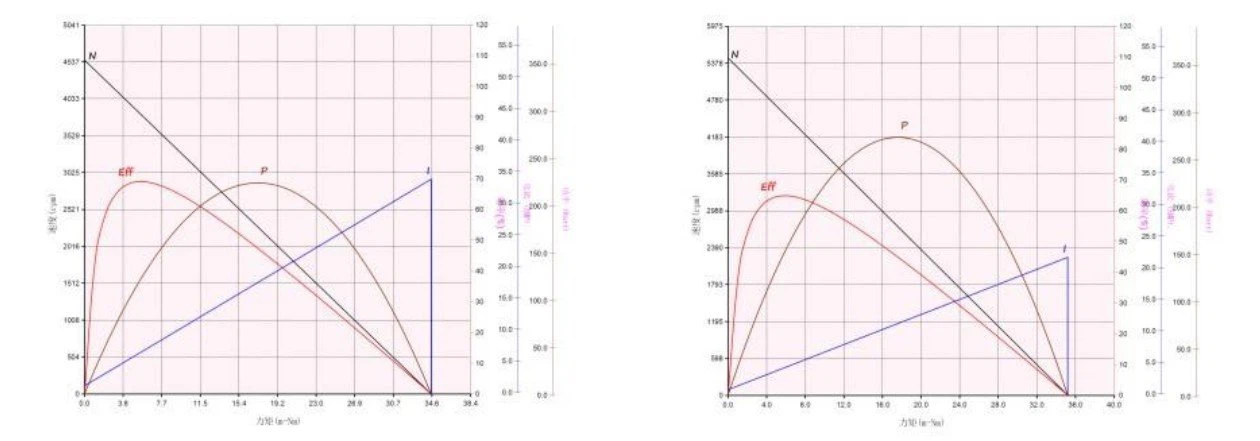

Pump Performance Curve

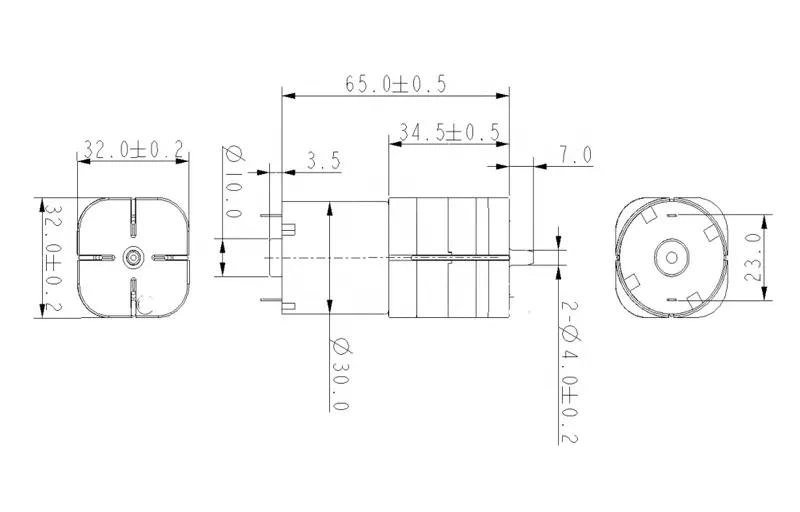

Product Size
Customized items: air nozzle direction (air in and out), flow rate, pressure, motor (length, thickness, life), etc.
Product Features
Vacuum pump for rechargeable spray gun does not need vacuum pump oil and lubricating oil inside, no pollution to the working medium, no maintenance; installation in any direction, small volume and low noise, truly portable, pocket-sized, continuous operation, long life, stable performance, Parameters such as air nozzle direction (air inlet and outlet), flow rate, pressure, motor (length, thickness, life) can be customized.
Company Strength

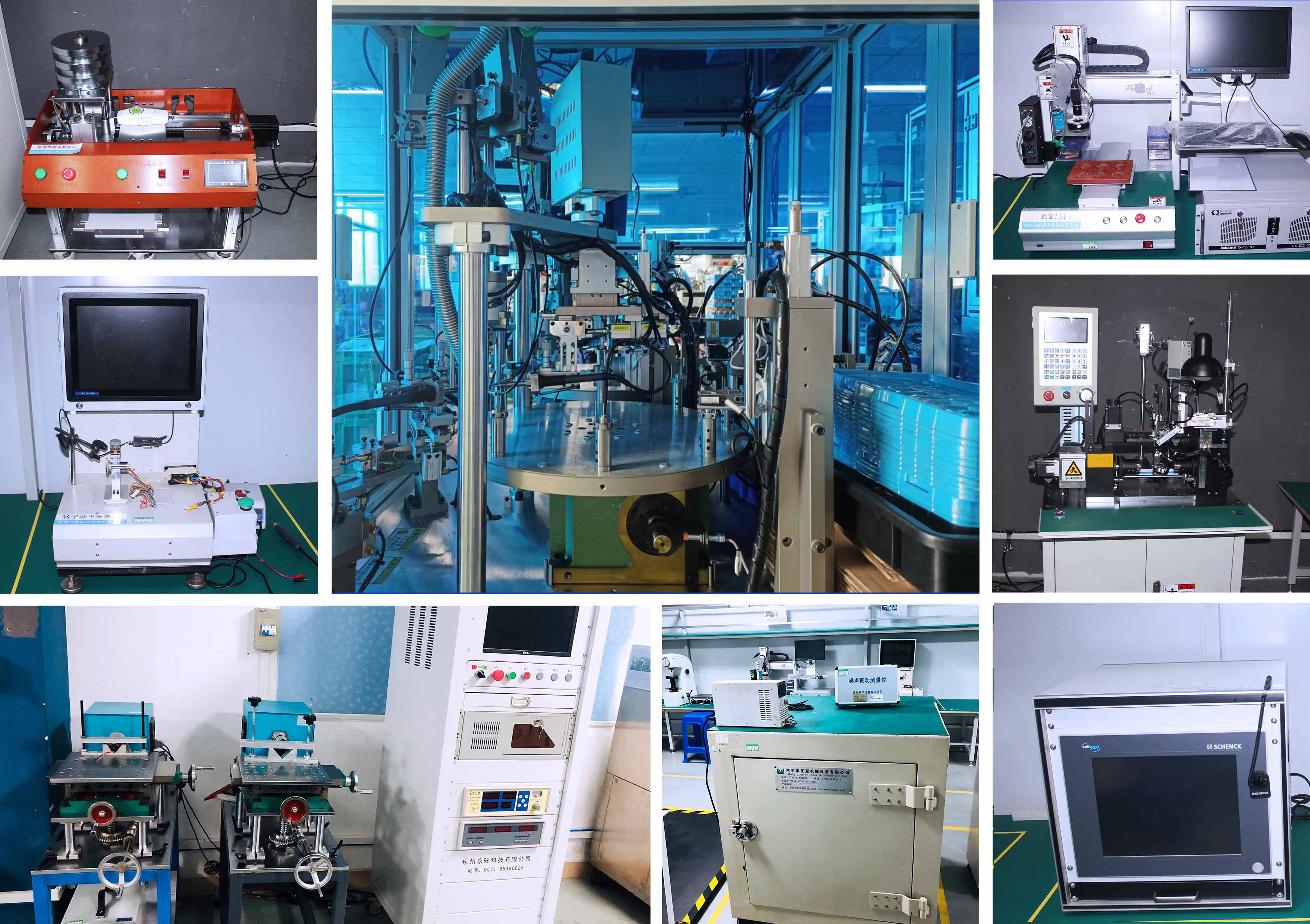

Automatic winding equipment, automatic stator equipment, automatic end cover equipment, automatic stator soldering equipment, reliability testing lab, noise testing, waterproof testing, life testing, crash testing, storage testing, salt spray testing, etc.
Independent R&D team, automated production line, and series of testing to meet your quality criteria; independent R&D team to meet your specialized needs.
Product Certificate
Our Service
1. High compatibility, especially made for the instrument series' micro pump, micro valve, and items.
2. Effective heat dissipation performance is improved by the exquisite shell, leading to better and more efficient operation.
3. A special design with high-purity copper windings may maximize efficiency and tolerate high temperatures.
4. The brushless crawler motor's key benefits are little vibration, low noise, precise construction, maximum power conversion, and being a great accessory!
5. We promise to replace the motor you are unhappy with or find a suitable solution for any quality issues with the product once you receive the products. We also offer customized design services and OEM and ODM services.
Some of our partners
We are thrilled to work with you in China as a long-term partner. We have devoted a lot of time to the motor industry, providing the fuel for the European and American markets.
Application
Transport Packing
Supply Ability
Supply Ability: 200000 Piece/Pieces per Day dc motor with counterweight
Packing: B3B Corrugated Box Our standard for each model is as follows:
amount
Inner packing in foam box: 350*265*280mm
Carton outer packing: 365*275*320mm
Weight 16.7kg/350pcs
Port: Hong Kong/Shenzhen
Shockproof foam packaging, suitable carton size.If you have special packing needs, please contact us in advance.
Buying Guides
Payment & Delivery
Precautions for the use of Vacuum pump for rechargeable spray gun:
There must not be any bindings while utilizing the motor that interfere with its functionality.
The life of the motor can be negatively impacted by the shaft's rotation. Check that the load complies with the rules; no overload or things that prevent the shaft from rotating are permitted in order to extend service life.
Avoid storing the motor in conditions of high ambient temperature or high humidity since they will decrease its efficiency.
Never operate the motor in an environment with excessive humidity and temperatures.
