12V 550 DC Motor Round Shaft
Output shaft length: 14.5±0.5 mm,
axial clearance: 0.05-0.5 mm;
outer diameter: 57 mm;
width: 37.5 mm
12V 550 DC motor round shaft are widely used in medical, beauty, maternal and child health care, smart home, vehicle, office, model aircraft, toys and models, robots and other fields. We have many years of experience in micro-motor production and research and development, escort your products, and provide customers with flexible and professional customized services.
Description
Overview
Warranty | 3 months - 1 year |
Place of Origin | Guangdong, China |
Brand Name | Vshida |
Model Number | VRK-550SA |
Usage | Water Pumps, Air Pumps, Cordless Power Tools, Toys and Models, Home Appliances, Electric Drills, Wireless Control Models, Electric Screwdrivers, Robotics, Medical, Personal Care, Industrial, etc. |
Type | Brushed dc motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brush |
Protect Feature | Customized |
| Voltage range | 5-18 V |
| Bearings | Oil-impregnated or ball bearings(can be customized) |
Efficiency | 80% |
Output Power | 5.0-80 W |
Rated speed | 5450 (rpm) |
| Rated current | 0.942 A |
Rated Voltage | 15 (V) |
Start Current | 5.548 A |
| Start torque | 142.030 (NM) |
Rated torque | 20.619（NM） |
Dimensions | 57*37.5 (mm) |
Payment terms | 30% advance, 70% balance |
Certificate | IATF 16949 2016 |
Customized | Acceped |
Company Highlights
Supply Ability
Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight
Packaging & Delivery
Packaging Details
Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.
Port: Shenzhen / HongKong
Product Description
An average of two months to develop a new motor
Product Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||
OPERATING RANGE | NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
5-15 | 12 | 3400 | 0.140 | 0.793 | 24.023 | 7.270 | 160.099 | 4.492 | 2.348 |
| 10-18 | 24 | 5450 | 0.160 | 0.942 | 20.619 | 10.059 | 142.030 | 5.548 | 0.063 |

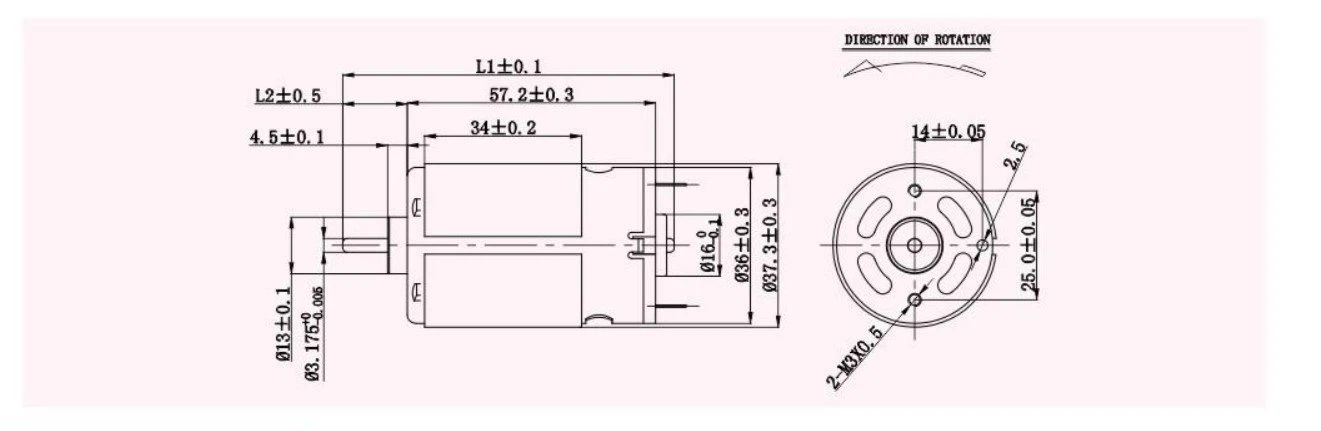

Product Size
Performance Curve
The above specifications are for reference only, the type and parameters of the specific brushed dc motor can be customized
Product Features
Simple structure; stable operation, good starting and braking effects; fast response speed, large starting torque; high control precision; low noise, long life, customized technical data (output shaft, speed, voltage).
Product Details
| 100% actual photos |
|
Rotor: pure copper wire wound, The iron core is made of silicon steel material, the current is small, the torque is large, the operation is stable, the coil is firm and uniform, and the natural insulating sheet is used. | End cap: The back cover is made of refined raw materials, with fine specifications and small tolerances, and the carbon brushes at both ends are evenly distributed in the rotating shaft. | |
| 100% actual photos |
|
Bearing: choose brand bearing, quality is guaranteed (bearing can be customized) | Chassis: choose high-quality materials with high hardness, corrosion resistance, wear resistance and rust resistance, and have a longer service life |
Our Advantage
1.550 motor has low energy consumption and low noise. Improves the bearing quality and service life of the brushed motor, and is extremely durable.
2. The internal structure adopts ring magnet, the magnet is relatively hard, the temperature resistance is good, the magnetic field is stable, and the running noise is low.
3. Wear-resistant carbon metal brush, high-quality copper core high temperature insulating coating rotor, ferrite magnet, strong power
Equipped with flux ring and cooling fan (according to customer requirements).
4. We are a powerful factory with a high reputation. 100% on-time delivery rate confirms your products arrive in time.
5. With an independent R&D team, regular samples will be produced within 3-5 days. Customized samples will be arranged for proofing production within 20 days, timely reply, your message will be replied within 24 hours.
6. Provide OEM and ODM services for customers
Company Strength
Product Certificate
Some of our partners
We have been committed to the motor industry for many years, covering most of the European and American markets, and look forward to becoming your long-term partner in China.
Application
Transport Packing
Shockproof foam packaging, suitable carton size.If you have special packing needs, please contact us in advance.
Buying Guides
Payment & Delivery
The 550 brushed motor is designed as a power tool/drill motor to replace the motor found in many 3/8" drills and other cordless outdoor tools. Also a popular choice for DIY electronic and robotic PowerWheels, door openers, and more.
PLEASE NOTE:
Not available or applicable to all models, be sure to check your specific requirements before purchasing, and if you are replacing a motor, be sure to verify that the motor matches your size and shaft length and diameter before purchasing. Or contact us to recommend (later customized) the most suitable motor for you, looking forward to your inquiry, I wish you a happy life, thank you!
