365 DC Micro Motor

The 365 DC Micro Motor has a diameter of 27.7mm and a length of 33mm, excluding the output shaft which extends a further 12.0mm for a diameter of 2.3mm. To hold it in place, there are two M2.5 mounting holes on the front of the motor. Large solder tabs on the back allow secure connection of wires. It has the advantages of high torque, low noise, long life, etc. The bearings can be oil-impregnated or powder bearings according to customer needs. They are widely used in hair dryers, water pumps, air pumps, household appliances, robots, sweepers, massagers, etc., and can be customized for customers. Design (speed, voltage, bearing, power, etc.) requires supporting encoders, drivers, gearboxes, etc., please contact us.

Company Highlights

Overview

Warranty	3months-1year
Place of Origin	Shenzhen, China
Brand Name	Vshida
Model	VRK-365SA
Usage	Medical equipment, fitness equipment, communication equipment, cameras, automation equipment, electric curtains, hair dryers, water pumps, air pumps, household appliances, robots, sweepers, massagers, etc.
Type	DC Motor
Weight	TBD (different ratio different weight)
Components	Diversifed
Construction	Permanent Magnet
Commutation	Brushed
Protect Feature	Customized
Efficiency	80%
Voltage range	≤36 V
Product Name	Micro  Brush DC Motor
Rated Voltage	18 V
No load Current	0.082 A
No load Speed	800±10%rpm
Load Current	0.33 A
Load Speed	6800士10%rpm
Starting Torque	24.23 mN.m
Starting Current	1.331 A
Shaft	2.3 mm
Payment terms	30% TT as deposit,70% TT balance before delivery
Critificate	IATF16949
Customized	Acceped

Product Description

We have an independent R&D team, and have fixed funds invested in R&D and production every year, which can meet the customization needs of customers.



Product Parameter

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
OPPERATING RANGE	NOMINAL V	SPEED r/min	CURRENT A	SPEED r/min	CURRENT A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	CURRENT A
10-14	12	4996	0.067	3936	0.249	3.84	1.581	18.09	0.924
16-20	18	8361	0.082	6698	0.330	4.82	3.380	24.23	1.331

Motor Outline

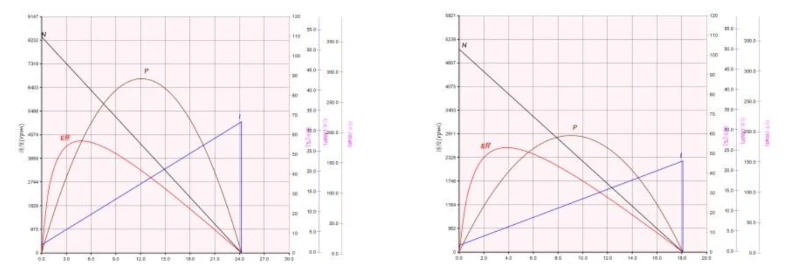

Motor Performance Curve

The above motor parameter information is for reference only, and can be customized according to customer needs. Speed, voltage, bearings, etc. can be adjusted according to needs. Contact me to obtain samples for performance testing.

Product Details

	100% actual photos
It is comprised of pure copper wire twisted around a solid iron core, which gives it high heat resistance. utilizes less energy and has a lower current resistance.		Brand bearings are used to reduce motor noise; you can choose ball bearings or oil bearings to increase friction and facilitate connection.
	100% actual photos
There are two brush feet on the bottom of the motor, which is more convenient to complete various welding processes. Select high-quality raw materials to prolong product life and fix the motor rotor.		Utilizing premium raw materials, lasting, wear-resistant, rust-proof, extending the motor's service life, dependable performance, etc.

Motor Description

1. The brush head is made of high-quality pp material, which is durable and has a long service life. Made of high-quality carbon fiber, it has good heat dissipation performance and is not easy to deform.
2. The micro-motor is made of high-quality steel, which does not rust or corrode. The iron core rotor has high hardness, high torque, stable operation, strong structure and durability. .
3. The built-in rheostat can eliminate sparks and suppress noise. It is a good choice for electric toys, hair dryers, etc. Customized design for customers, providing OEM/ODM services;
4. Low tolerance and high load capacity are suitable for various complex outdoor environments. Ideal for replacing rusted or damaged DC gear motors on machines.
5. 365 DC Micro Motor is widely used in electronic slot machines, electronic toys, car toys, robots, electronic equipment, electric curtains, hair dryers, water pumps, air pumps, household appliances, robots, sweepers, massagers, etc.

Company Strength

Vshida Micro Motor Company currently has more than 30 R&D personnel, more than 40 assembly lines, more than 300 sets of automation equipment, more than 500 front-line employees, and a daily output of more than 200,000 motors. Combining modern manufacturing, research and development methods with cutting-edge production management concepts has obtained ISO 9001:2015 and IATF16949:2016 quality management system certification. Satisfy customer customized service, OEM/ODM service, mass order service. Welcome to visit our company.

In order to provide high-quality assurance for your products, all motors have passed a number of tests, including noise test, waterproof test, life test, impact test, storage test, salt spray test, etc. The manufacturing efficiency is increased by the use of more than 300 highly automated machines, which also fulfill a huge number of customer orders.

Product Certificate

With our continuous efforts, we have obtained a number of international certifications and patent certifications to meet the needs of our customers for certificates. If you need relevant certificates, please contact me for them.

Some of our partners

We have become a supplier of motors of many international brands, and have been recognized and supported by countless customers. We concentrate on quality and look forward to becoming your partner in China.

Application

The application fields of micro motors are extremely wide, far beyond the above mentioned, and can be customized for specific fields

Why choose us?

Transport Packing

 More than 200000 DC motors with  per Day，High-quality packaging, three-layer anti-drip, if you have other packaging and transportation needs, please contact us.

Payment & Delivery

365 DC Micro Motor Maintenance Method

(1) Routine maintenance of the motor. The environment must be kept clean, and no water or oil may flow into the motor. The surface of the motor should be blown clean with compressed air regularly, especially the part of the lead wire. Regularly open the back cover of the motor, and use compressed air to blow off the toner on the surface of the commutator and around the brush holder. Note that the motor power must be cut off during any cleaning work.

(2) The replacement of the brush must be a special brush. Before replacement, the outer surface of the outer circle with a diameter of 60% of the motor diameter should be ground with sand skin above No. 0. After the arc surface is formed, gently put the ground brush into the brush holder, and the brush should be in the brush holder. After sliding smoothly and hearing the slight sound of the brush hitting the surface of the commutator, compress the brush spring and cover the brush cover. After the new brushes are replaced, the motor should run for more than 4 hours without load before it can be put into normal work.

(3) Replacement of bearings. When the bearing is abnormal or its service life expires, the bearing should be replaced in time. The grade of the replacement bearing should be the same as the original bearing as much as possible. Bearings should be disassembled using special drawing dies for bearings. Bearings are assembled by cold pressing, and heating is strictly prohibited.
