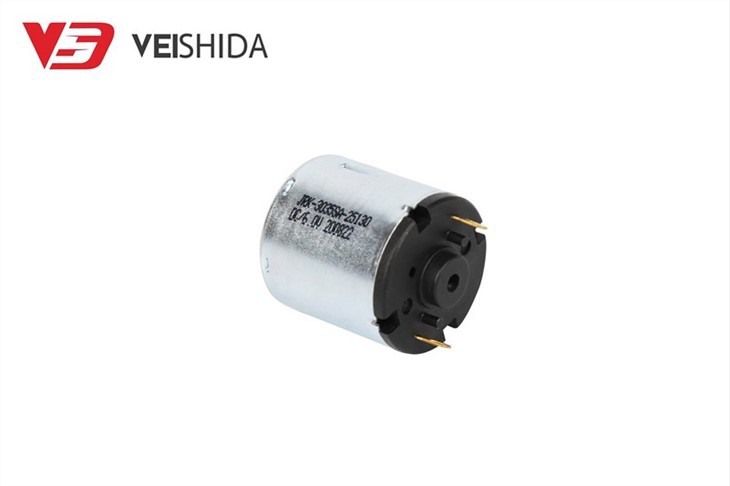

Ball Bearing Carbon Brush Motor
Outer Diameter: 30.3mm;
Length: 30.5mm;
Shaft Diameter: 2.5mm,
Shaft Type: Ball Bearing;
Rotation Direction: CW/CCW;
Widely used in medical, beauty, maternal and child health care, smart home, drones, vehicle, office, model aircraft, toy models, power tools, robots and other fields. We have 15 years of experience in micro-motor production and development, providing customers with flexible and professional customized services.
Description
Ball bearing Carbon Brush Motor normal operating voltage 3V-24V, 30mm small size (OD) outer diameter, axis: central axis; direction of rotation: bidirectional; carbon brush structure. Magnet type: rubber magnet/tile permanent magnet. Typically used in massage tools, electronic motor locks, automatic doors, electric vehicles, air guns, electric curtains, etc., with high speed, precise speed control, easy installation, large starting torque, long life, stable output, easy installation, easy maintenance, etc. . Customize the micro DC motor with the motor parameters you need according to your requirements. The appearance of the motor/gearbox may vary due to special specifications or special gear ratios, please contact us for more details
Company Highlights
Overview
Warranty | 3months-1year |
Place of Origin | Shenzhen, China |
Brand Name | Vshida |
| Model | VRK--3035 |
| Usage | Small household appliances, water pumps, printers, copiers, air pumps, massage tools, electronic locks, automatic doors, electric vehicles, air guns, electric curtains, etc. |
Type | Brush Motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brushed |
Protect Feature | Customized |
Efficiency | 80% |
| Voltage range | ≤36V |
Product Name | Micro Brush DC Motor |
Rated Voltage | 24 V |
| Power | 1.0-5.0 W |
| No load Speed | 5000±10%rpm |
| No Load Current | 0.036 A |
| Starting Torque | 35.19 mN.m |
| Payment terms | 30% advance, 70% balance |
| Critificate | IATF16949 |
Customized | Acceped |
Product Description
Product Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | ||||||
OPPERATING RANGE | NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
| 10-14 | 12 | 4560 | 0.052 | 3822 | 0.269 | 5.58 | 2.232 | 34.48 | 1.396 |
| 22-26 | 24 | 5460 | 0.036 | 4549 | 0.18 | 5.87 | 2.789 | 35.19 | 0.897 |
Motor Outline
The output shaft, lead wire, lead terminal, and speed are among the that can be altered.
Motor Performance Curve
The aforementioned details are merely being offered for reference; customers are free to change and adapt the actual geared motor parameters to suit their needs.
Product Details
| 100% actual photos |
|
Rotor: Pure copper was used to create the coil, which has great strength, low resistance, good electrical conductivity, low heat generation, and high output efficiency. | End cap: There are two brush feet at the bottom, making it easier to finish different welding operations and the wiring. | |
| 100% actual photos |
|
Bearing: CNC processing of the central axis results in an increase in friction, a more stable transmission, and easier connection and fastening. | Chassis: It is made of high-quality aluminum and has dependable performance, corrosion resistance, and is not easily rusty. |
About This Item
1. Simple to connect with welding eyes. It is the perfect motor for solar experimentation due to its low voltage and low current requirements. operates in any direction; all you have to do is switch the power supply's polarity.
2. The use of steel with a high hardness for improved toughness, impact resistance, bearing quality, and reduced motor service life.
3. More than 50 precise manufacturing lines; quick bulk goods production; ability to fulfill bulk orders; and best price for you.
4. Ball bearing carbon brush motor equipment is finished, and the motor specs are complete. To address the specialized needs of clients, it blends production, R&D, and sales.
5. We offer OEM/ODM services, non-standard motors of different types and specifications, high quality assurance, and more. Choosing us is choosing quality.
Company Strength
The Vshida Micro Motor Company makes use of advanced production management techniques as well as professional research, development, and production tools. has obtained certification for the quality management systems ISO 9001:2015 and IATF16949:2016. In order to fulfill both large orders and specific customer requests, the company's current manufacturing facility has an area of more than 10,000 square meters, more than 500 workers on the production floor, more than 300 sets of automation equipment, more than 40 assembly lines, 30 R&D personnel, and a daily output of about 200,000 motors.
Our extensive selection of automation equipment includes automated winding, automatic stator, automatic end cap stator, and other high-quality electric tools.
Send your motor to a lab for high-quality assurance and reliability testing as well as noise, weatherproof, life, collision, storage, and other tests.
Product Certificate
Vshida Micro Motor has passed a variety of international certifications and patent certifications in order to satisfy the demands of clients for various credentials.
Why choose us?
Some of our partners
We have an independent R&D team, a tested process design, and 15 years of motor production and R&D expertise. You will be working with a factory that thoughtfully evaluates each step and generates high-quality products when you interact with us. Every one of our motors undergoes a battery of rigorous tests to further guarantee their exceptional quality.
Application
Micro motors are incredibly adaptable and can be designed for a wide range of usage scenarios. Contact us if you have any unusual requirements.
Transport Packing
Please get in touch with us if you have any further special packaging needs.
Supply Capacity:
More than 200000 DC motors with per Day.
Inner packaging of foam box: 350*265*280mm
Carton outer packaging: 365*275*320mm
Weight 16.7kg/350pcs
Payment & Delivery
How the ball bearing carbon brush motor works
A brush is a device that transmits energy or signals between the fixed part and the rotating part of a rotating machine such as a DC motor or generator. The brush energizes the coil on the rotor, and then changes the direction of the current flow, because the rotor is rotating. The current is delivered to the rotor coils through the brushes. It is generally made of pure carbon plus coagulant, and its appearance is generally square, stuck on a metal bracket, and there is a spring inside to press it tightly on the rotating shaft.
When the brushed motor rotates, it transmits electric energy to the coil through the commutator. Since its main component is carbon, it is called a carbon brush, which is easy to wear. It should be regularly maintained and replaced, and carbon deposits should be cleaned.
If you need to obtain samples for performance testing and other custom needs, please contact us.
