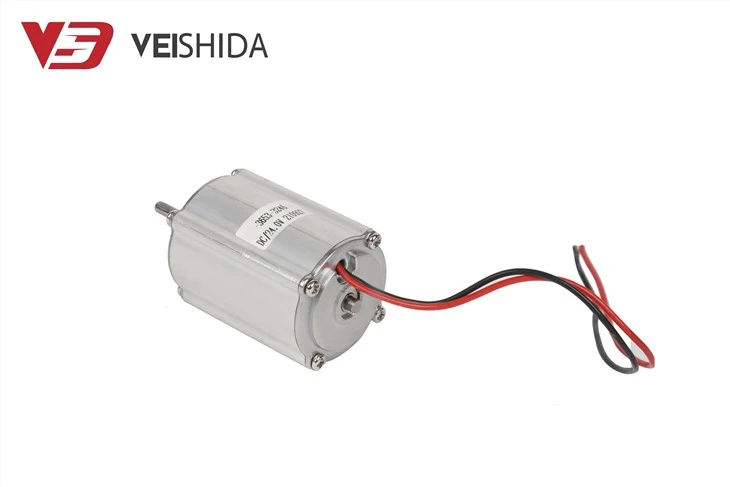

12V BLDC Motor

Overview

Warranty	3months-1year
Place of Origin	Guangdong, China
Brand Name	Vshida
Model Number	VBL-3653
Usage	Small fans, air pumps, medical, maternal and child, beauty, vehicle, household appliances, communication equipment, banking equipment, office supplies, electronic equipment, robots, model aircraft, small household appliances, industry, etc.
Type	Brushless motor
Weight	TBD (different ratio different weight)
Components	Diversifed
Construction	Permanent Magnet
Commutation	Brushless
Protect Feature	Customized
Efficiency	89%
Product Name	Micro motor
Voltage range	8-26 V
Bearing	oil bearing/ball bearing (can be customized)
Rated Voltage	24 V
Rated Current	1.8(A)
Rated speed	8000 r/min
Rated torque	420 mN.m
Certificate	IATF16949:2016
Customized	accept



Company Highlights



Supply Ability

Supply Ability: 4500000 Piece/Pieces per Month dc motor with counterweight

Packaging & Delivery

Packaging Details

Micro motor packing: Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm Your own shipping instruction is welcome.

Port: Shenzhen / HongKong



Product Description

An average of two months to develop a new motor



Product Parameter



VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
OPERATING RANGE	NOMINAL V	SPEED r/min	CURRENT A	SPEED r/min	CURRENT A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	CURRENT A
8-16	12	3909	0.224	3322	1.27	30.987	10.78	206.608	7.195
18-26	24	7943	0.224	7062	1.795	46.572	34.44	419.856	14.39



Product Size

Custom project

Output shaft, rotational speed, voltage, lead wire, lead terminal, mounting hole, etc.

If you need to match the driver, encoder, gear box, please contact us!!!

Performance Curve

The above specifications are for reference only, the type and parameters of the specific micro  brushless motor can be customized.



Product Details

	100%  actual  photos
Bearings: choose brand bearings to reduce motor  noise and improve service life (bearings can be  customized)		Rotor: pure copper wire winding, high-quality iron  core, high temperature resistance, reduce energy  consumption, reduce current resistance
	100%  actual  photos
Chassis: Made of high hardness, high temperature  resistance, corrosion resistance, wear resistance  and rust resistance material, longer service life		End cap: use high-quality raw materials to increase the service life, fix the rotor of the motor, and have a heat dissipation effect.



Our Advantages

1. The 3653 brushless DC motor has a wide range of applications and is widely used in air pumps, auto parts, smart home appliances, pumps, medical care, beauty and other fields;

2. The D-axis structure is adopted, the installation is more convenient, it is not easy to slip, and the installation time is saved. In the process of use, it can better cooperate with the application products, small size, large torque, light weight, easy to carry and use;

3. Using high-quality raw materials, built-in Hall sensor, easy to drive, aluminum alloy shell, good heat dissipation, lower temperature rise, novel cover plate and frame combination structure to ensure installation accuracy

4. It adopts full ball bearing structure: low friction resistance, low noise, long life, fast heat dissipation, high precision and strong compounding ability.

5. The professional R&D team can make customized designs according to customer needs, and also provide OEM/OEM services.



Company Strength



Product Certificate



Some of our partners

We have been committed to the motor industry for many years, covering most of the European and American markets, and look forward to becoming your long-term partner in China.

Application



Transport Packing

Shockproof foam packaging, suitable carton size.If you have special packing needs, please contact us in advance.
