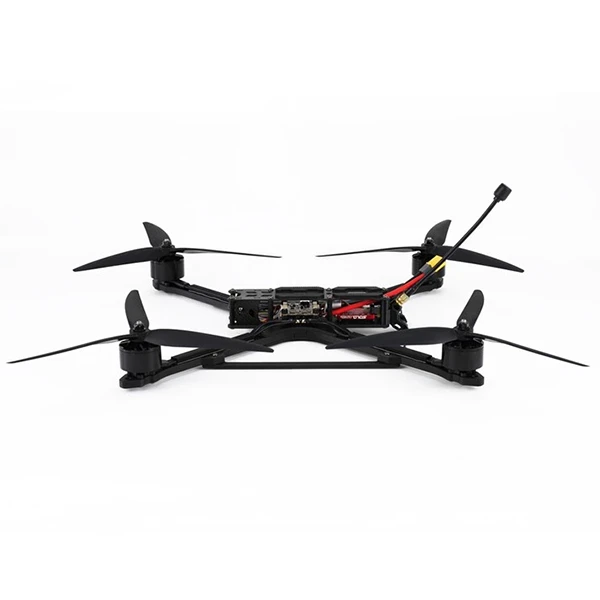

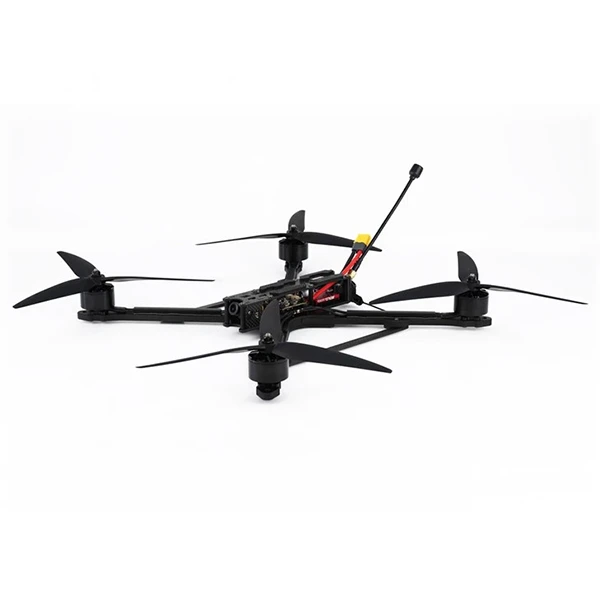

10inch FPV Drone

"10 inches" refers to the diameter of the propeller used on the drone, measured in inches. Generally speaking, the size of the drone propeller directly affects the flight performance and applicable scenarios of the drone. The 10inch FPV Drone propeller is relatively large, which allows the 10-inch FPV Drone to carry 2-5 kg ​​and fly for 10-15 minutes; remote control distance: 5-10 kilometers; maximum speed: 110 km/h; flight stability and endurance are good, suitable for longer flight missions or carrying heavy loads.

FPV (First-Person View) drones are drones equipped with a front-facing camera that transmits video signals back to the pilot in real time via wireless transmission. Pilots usually watch these video signals by wearing a head-mounted display (such as VR glasses) or using a handheld display, so that they can control the flight from the drone's "first-person" perspective. Compared to smaller FPV drones, such as 5-inch or 7-inch FPV drones, 10-inch drones usually have better performance in aerodynamic stability, maximum flight speed and carrying capacity.

*Recommended Configuration

-Camera: Caddx Ratel
-Antenna: 5.8G RHCP
-RX: TBS / ELRS 2.4G
-VTX: Axisflying 1600mw 5.8G
-FC: Axisflying Argus ECO F405
-ESC: Axisflying Argus 60A 8bit
-MOTOR: Axisflying 3115 900kv
-Props: GemFan 1050

Performance
.Payload: 2-3 kg
.Flying time: 10-15 min
.RC distance: 5-10 km
.Max speed: 110 km/h

Battery and endurance: A larger battery can provide longer flight time, but it also increases weight and cost.
Camera quality: For 10inch FPV Drone, the resolution and image quality of the camera are crucial.
Transmission system: The clarity and low latency of video transmission are very important in FPV flight, and the 5.8GHz frequency band is usually used for transmission.
