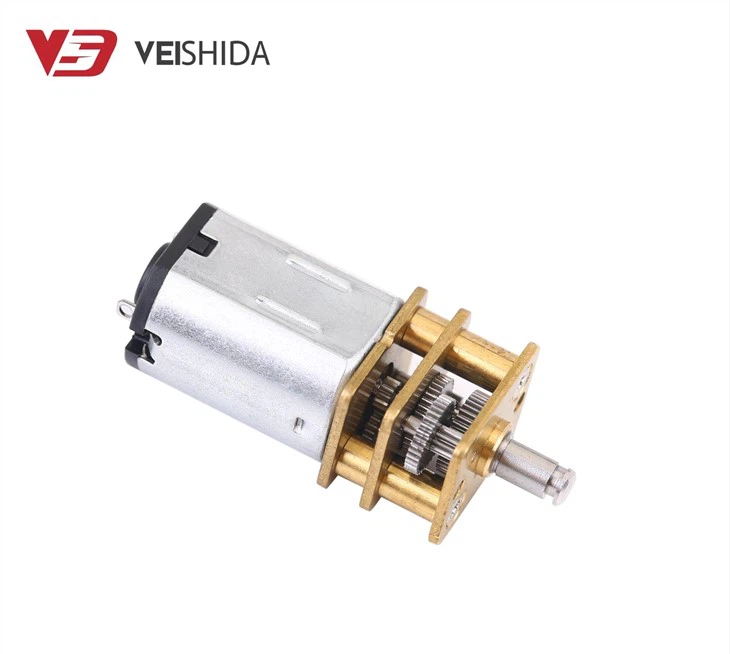

N20 Mini Micro Metal Gear Motor

The N20 Mini Micro Metal Gear Motor integrates a DC motor and a gearbox with metal gears (300:1), allowing it to provide excellent torque and normal speed (100 RPM). Operating Voltage: 3V to 9V; No Load Current Consumption: 40 mA; Load Current Consumption: About 400 mA. ; Torque: 100g*cm; Speed: 10-15000rpm; It has the characteristics of light weight, high torque and low speed. This is a mini DC metal gear motor for DIY motors, electric locks, robot models. Designed for competition robots, especially for line and maze following robots. For fast robots, it is recommended to use 1000 RPM N20 micromotors, which can be customized with parameters and models according to customer needs.

Company Highlights

Overview

Product Description

Within a month, the independent R&D team created a wide range of cutting-edge motors, and the capable R&D team can accommodate your specific requirements.

Motor Parameter

Customized Item

Lead wire, connector, mounting hole, output shaft, and speed

Please get in touch with us if you need to match the driver, encoder, or gear box.

Motor Outline

Performance Curve

The aforementioned details are just provided as a guide; the precise motor model and its settings may be changed to suit the needs of the client.

Product Details

Product Description

1. All metal gears will ensure longer service life, high torque and lower noise. Higher performance than ordinary metal gears, anti-stall, no jammed teeth.

2. Excellent accessories for long-life use, effectively protecting the gear box motor body.

3. The N20 Mini Micro Metal Gear Motor has a small body, high power, low noise, strong bearing capacity, and is sturdy and durable.

4. The motor is sturdy and can be installed in many applications. Such as robotics and automation projects, DIY motors, electric locks, robot models, light following robots, speed line followers, wireless cars, etc.

5. Technical requirements: Gearbox reduction ratio: 298:1; Gearbox is flat and not bent. The gearbox rotates flexibly. The axial clearance of the output shaft is 0.05-0.3mm. All components are RoHS compliant.

Company Strength

The Vshida Micro Motor Company employs more than 500 people, more than 40 production lines, and high levels of automation to create 200,000 motors every day. Additionally, we have a solid business team that places a high priority on technology, quality, and client expectations in order to deliver flexible, expert services that are precisely catered to clients' demands in order to produce win-win outcomes.

An automatic winding machine, an automatic stator machine, an automatic stator machine for the end cover, and an automatic soldering machine are additional examples of high-end motor equipment.

laboratories for evaluating reliability, as well as tests for things like salt spray, noise, waterproofness, life, and collisions. A high-quality warranty for your motor

Product Certificate

Some of our partners

As a trusted partner in China, we are happy to work with you. Over the years, our goal has been to supply DC motors to the vast majority of European and American markets.

Why choose us?

Application

Micro motors have a huge range of applications, and the model parameters can be adjusted to meet various application settings. Contact us if you have any unique requirements.

Transport Packing

Packaging Information:

1. Standard carton/foam for export.

2. Personalized packing conditions that meet your needs

3. 1000 pieces per ctn Size of a carton: 37.8*29.5*26.8 cm 10.6 kilograms per container, gross

Net weight per unit: 9.6 g

 If you require specific packing services, kindly contact us in advance.

Payment & Delivery

The role of Hall or photoelectric encoder in N20 Mini Micro Metal Gear Motor

The Hall encoder used by N20, the encoder can feedback 3 signals when a single motor rotates one revolution. If the reduction ratio is 100, then the output shaft of the reducer can collect 300 signals for one revolution. This accuracy is used for general precision Equipment is enough. The photoelectric encoder used by N20, the encoder can feedback 48 signals when a single motor rotates one revolution. If the reduction ratio is 100, then the output shaft of the gear box rotates one revolution and the device can collect 4800 signals, which is equivalent to the accuracy of each signal to 0.075 Spend. This product is mostly used on ultra-high-precision equipment.

                                                                                                                                                                        If you have other needs, please contact us and reply to your inquiry within 24 hours
