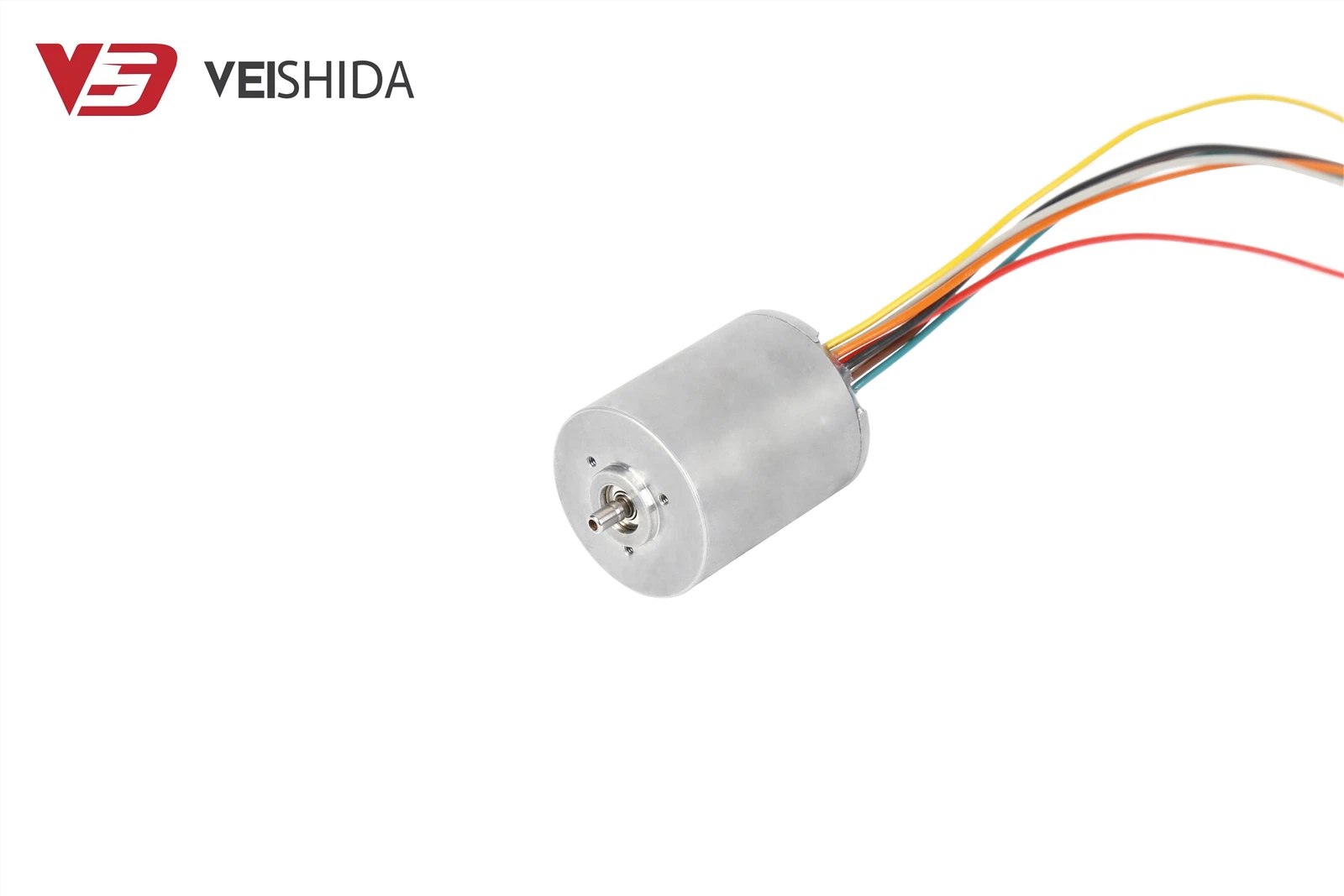

12V 24V High Speed BLDC Brushless DC Motor

12V 24V High Speed BLDC Brushless DC Motor adopts NMB ball bearings, prolongs service life, has the characteristics of low noise, long life, wide speed range, high reliability and good stability; the brushless motor drive circuit board is external; external The driver can realize PWM or 0~5V stepless speed regulation; the speed, voltage, bearing, output shaft, lead-out wire, etc. can be customized according to customer needs.

Company Highlights

Overview

Warranty	3months-1year
Place of Origin	Shenzhen, China
Brand Name	Vshida
Model	VBL-2842
Usage	Small appliances for personal care, industrial, commercial, and household applications include coffee makers, milk tea makers, centrifuges, medical mixers, micro pumps, printers, projectors, ATMs, massagers,etc
Type	BLDC Motor
Weight	TBD (different ratio different weight)
Components	Diversifed
Construction	Permanent Magnet
Commutation	Brushless
Protect Feature	Customized
Efficiency	85%
Rated Voltage	12 V
No Load Speed	2000 rpm
Load Speed	15622
No Load Current	0.42
Starting Torque	180 mN.m
Product Name	Brushless DC Motor
Power	2.0-50W
Direction of rotation	CW&CCW
Payment terms	30% advance, 70% balance
Critificate	IATF16949
Customized	Acceped

Product Description

The company has an independent research and development team, which can customize the design according to your needs. It has strong research and development capabilities, and develops a variety of new motors a month on average.

Product Details

	100% actual photos
Rotor: Comprised of a high-quality iron core with exceptional temperature resistance wrapped around a pure copper wire.It has a lower current resistance and requires less energy.		Bearings: The bearings are composed of CNC machining to increase friction, improve transmission stability, and make connection and fixing easier.
	100% actual photos
End cap: Fixed electronic rotor made with premium raw materials that has better heat dissipation, more matching, and a longer lifespan.		The motor casing is made of high-quality raw materials with high hardness, temperature resistance, low corrosion, low wear and low rust.



Product Parameter

VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STARTING
OPERATING RANGE	NOMINAL V	SPEED r/min	CURRENT A	SPEED r/min	CURRENT A	TORQUE mN.m	OUTPUT W	TORQUE mN.m	CURRENT A
8-26	24	21200	0.43	15842	2.862	30	45.21	236.12	12.1

Performance Curve

Motor Description

1.12V 24V High Speed BLDC Brushless DC Motor is made of imported special steel with the smallest modulus (0.15 modulus), ultra-low noise and high reliability.
2. The motor adopts high anti-oxidation commutator and brush material, which has the characteristics of stable operation, long life, small vibration and high torque.
3. With the functions of FWD/REV, variable speed, overcurrent protector 12VDC 2.5A or 24VDC 1.5A. Hall encoders for measuring and controlling speed.
4. High-quality bearings are used on both sides to ensure that it is durable, stable, quiet and efficient.
5. If you have any questions before purchasing, please contact us. We will provide you with the most satisfactory response and the best guidance, welcome OEM/ODM services and large quantities of orders.

6. Widely used in high-end transmission structures such as automobiles, communication equipment, smart home, medical equipment, smart security, household appliances, western kitchen equipment, machinery and electronics

Company Strength

Shenzhen Vshida Micromotor Co., Ltd. is a micro motor manufacturing firm that combines expert R&D, production, and sales. Hub motors, coreless slotless motors, pumps (water, air, and solenoid valves), precious metal and carbon brush micromotors, gear reduction motors, brushless motors, and Airsoft motors are some of its main products. It offers strong capacities for product development and production as well as a sizeable pool of high-tech and management skills in the automotive industry. Adapt to the expectations of consumer customization.

​

All motors have completed various reliability tests and laboratory inspections, including noise tests, waterproof tests, life tests, crash tests, storage tests, salt spray tests, etc., to guarantee the highest level of quality.

​

Product Certificate

In order to meet the requests of clients for various certificates, it has thus far passed a number of international certifications and patent certifications.

​

Partners

As a trusted partner in China, we are glad to cooperate with you. We have been committed to the research and development of micro motors for a long time, supplying the vast majority of European and American customers while also meeting the huge demand.

​



Why Choose Us

Application

​

Micro motors are very adaptable and may be tailored for a variety of usage scenarios. If you have any particular demands, please contact us.



Transport Packing

​

Inner packaging of foam box: 350*265*280mm
Carton outer packaging: 365*275*320mm

Optimal carton proportions and foam packing that absorbs shock. Please get in touch with us in advance if you need any specific packing services.

The above motor parameters are for reference only, and can be changed and customized according to customer needs. If you have special needs, please contact us to obtain samples for testing.

Payment & Delivery

​



Notes for 12V 24V High Speed BLDC Brushless DC Motor:
Inside the driver: it has the functions of FWD/REV, variable speed, overcurrent protector 12VDC 2.5A or 24VDC 1.5A. Hall encoders for measuring and controlling speed.
Add a PWM (Pulse Width Modulator) speed controller to adjust the speed,
a. The power supply of the PWM governor should be separated from the motor, 5V DC, frequency 10-30K.
b. The Blue wire connects to the middle pin of the 3 pins of the PWM, and the negative part should be connected to "DC-".
c.0-10%, no rotation. 10%-100%, it is infinitely variable.



Most of our motors can be custom designed to run on 12 volts, 24 volts, 36 volts, 48 volts or higher. Different lubricant options and IP65 rated motors are available for extreme temperatures, dusty and wet environments. Integrated Hall sensors or encoders are also available for applications requiring accurate position and velocity feedback. A wide range of brushless gear motors and brushless DC motors with integrated drives are also available. Custom twin shafts and mounting flanges are available upon request.

Please get in touch with us so that we can offer compatible drives, encoders, and gearboxes. Within the following 24 hours, we will react to your message.
