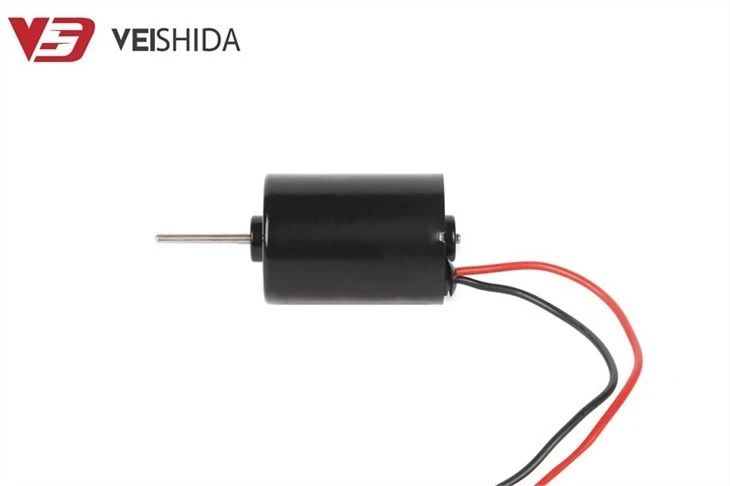

28mm BLDC Motor

The 28mm BLDC Motor is a brushless DC runner motor. With a very compact driver, it has convenience, forward/reverse and PWM functions, as well as Taco output functions. Different speeds and voltages can be provided according to special requirements. Using ball bearings, the default life is>5000 hours. Depending on the application, output speed, applied load, etc., the type of motor can be selected. Depending on the load, various types of gears can be used, namely, polyacetal sintered iron, brass, and steel gears. Polyacetal or sintered gears are commonly used for noise reduction, and when the required output torque is small, use a complete polyacetal gear. Can be used with encoders, drives, gearboxes, etc. Your consultation is welcome.

Company Highlights

Overview

Warranty	3months-1year
Place of Origin	Shenzhen, China
Brand Name	Vshida
Model	VBL-2838
Usage	Fans, household appliances, toys, massagers, household appliances, electric tools, water pumps, beauty instruments, medical devices, etc
Type	BLDC Motor
Weight	TBD (different ratio different weight)
Components	Diversifed
Construction	Permanent Magnet
Commutation	Brushless
Protect Feature	Customized
Efficiency	75%
Rated Voltage	12 V
Product Name	Micro  BLDC motor
Rated Speed	6841 rpm
No load current	0.2 A
Bearing	Ball Bearing
Shaft diameter	2.3 mm
Motor Diameter	28mm
Size	38*28*28mm
Weight	About 90 g
Rated Power	1-30 W
Rated Torque	57
Direction of rotation	CW&CCW
Voltage range	≤36 V
Payment terms	30% TT as deposit,70% TT balance before delivery
Critificate	IATF16949
Customized	Acceped

Product Description

We have a research and development team that invests fixed funds every year to develop new products to meet customer customization needs; Highly automated production lines to meet customer OEM/ODM requirements.

Motor parameter

VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY				STALL
NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
V	r/min	A	r/min	A	mN.m	W	mN.m	A
12	6841	0.208	5529	0.876	11.077	6.414	57.754	3.693
24	8184	0.125	6582	0.513	10.719	7.389	54.770	2.108

Motor Outline

Motor Performance Curve

The above parameter information is for reference only. Voltage, rotational speed, power, output shaft, lead wire, mounting hole, etc. can be customized according to customer requirements. Contact me to obtain samples for performance testing.

Product Details

	100% actual photos
Pure copper wire winding, high-quality iron core, reduce energy consumption, reduce current resistance, wear and rust resistance, and longer service life.		It is made of high hardness, high temperature, and corrosion resistant materials, from laminated materials, housings, plastic covers, rotors, stators, to the production of components, and drives the rotor to rotate. Longer service life and higher matching.

Motor Description

1. Wiring method: CW: red: "+", black: "-"; CWW: Red: "-", Black: "+"；Working voltage V (optional) 6V 12V 12V 24V 24V; CW (clockwise), CCW (counterclockwise), CW/CCW (automatic reverse rotation when resistance is high);

2. With self protection function, the motor coil will not burn out if overloaded or locked.

3. Working at rated frequency, the speed will not be affected by voltage, and is very stable.

4. It is mainly used for electric fan ventilation mechanisms, heaters, various display racks, handicrafts, lamps, lighting, toys and other equipment, air conditioners, microwave ovens, etc.

5. The 28mm BLDC Motor operates without sparks, greatly reducing spark radio interference. Brushless motors have no brushes, greatly reducing friction during operation, making them smoother and less noisy, which greatly benefits the running stability of the motor.

Company Strength

Vshida Micromotor Company is a company specializing in motor research and development, manufacturing, and sales. Headquartered in Shenzhen, China, with an existing factory area of over 10000 square meters, it has more than 500 front-line employees, more than 300 sets of automation equipment, more than 40 assembly lines, and 30 research and development personnel. It produces about 200000 electric machines per day, meeting customers' massive orders and customization needs. With advanced production equipment and technical force, the product quality and technical level are in the leading position in the industry. The company's products cover brush motors, brushless motors, speed reduction motors, coreless motors, micropumps, and other fields of product application. We have been committed to providing customers with high-quality, high-performance, and highly reliable products and professional technical support.

All of our motors undergo a series of tests before leaving the factory, including noise testing, salt spray testing, life testing, and anti drop testing, to ensure that the products produced meet customer requirements.



Product Certificate

We have professional production and research equipment and advanced production management concepts. We have passed ISO 9001:2015 quality management system certification, IATF16949:2016 quality management system certification, and multiple patent certifications to meet different requirements for certificates.

Some of our partners

Inner packaging of foam box: 350*265*280mm

Carton outer packaging: 365*275*320mm

Weight 16.7kg/350pcs

With our continuous efforts, we have become a supplier of many internationally renowned brands. We always adhere to the principle of "quality first, customer first", and are committed to producing the most satisfactory and high-quality motors for customers.

Application

Widely used in medical, beauty, maternal and child health care, smart home, drones, vehicle, office, model aircraft, toy models, power tools, robots and other fields. We have 15 years of experience in micro-motor production and development, providing customers with flexible and professional customized services.

Transport Packing

The 28mm BLDC Motor packages the product in strict accordance with export packaging requirements to ensure product safety. If you have other packaging requirements, please contact us.

Payment & Delivery



Our factory supports customizing various types of brushless DC motors, which can be provided based on the following information:

1) Model or size: main model or size, shaft size, extended shaft size, shaft type, output shaft length, etc;

2) Parameters: voltage, speed, current, torque

3) Purpose: The more detailed the information about which product to use for brushless DC motors, the easier it will be for engineers to match suitable products for you;

4) DC motor types: brush motor, brushless motor, gear motor, pump motor, coreless motor, etc;

5) Other requirements: Do you need to be environmentally friendly? Or anti interference? Life, noise amplitude, etc.

DC brushless motor series 24mm series 28mm series, 36mm series, 42mm series, etc;

A full range of precision gear boxes with diameters of 6mm, 8mm, 10mm, 12mm, 13mm, 16mm, 20mm, 22mm, 24mm, 28mm, 32mm, 36mm, 37mm, 42mm, 48mm, output rotational speed of 5-3000rpm, reduction ratio of 5-1500, output torque of 1g.cm to 50kg.cm

If you have other requirements, please contact us.
