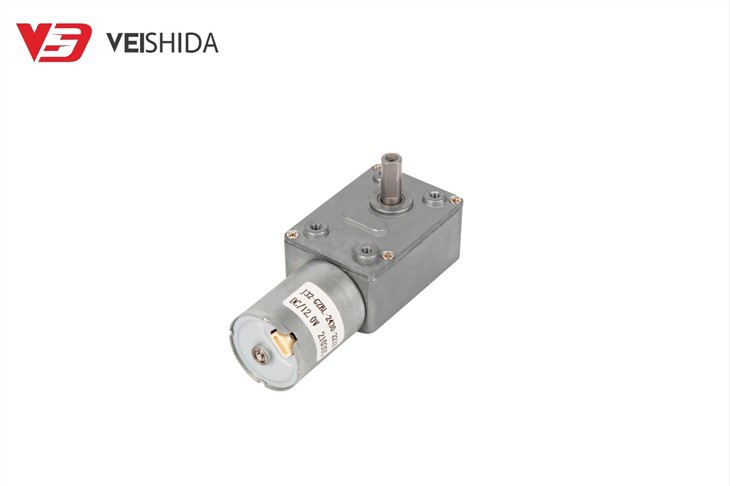

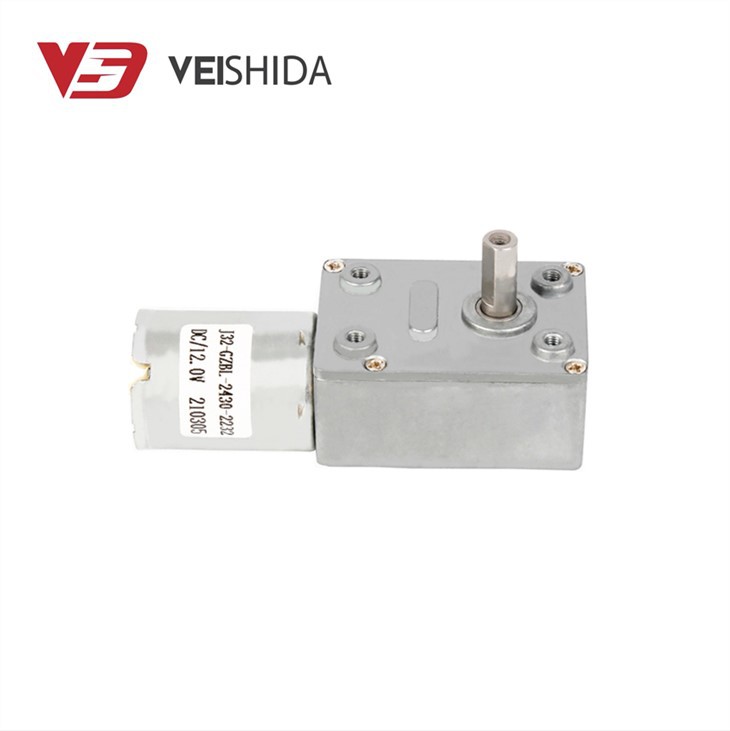

2430 Brushless DC Worm Gear Motor
Outer diameter: 32 mm,
length: 46 mm,
axial clearance: 0.05-0.5 mm.
Speed, voltage, current, power can be customized
Widely used in medical, beauty, maternal and child health care, smart home, drones, vehicle, office, model aircraft, toy models, power tools, robots and other fields. We have 15 years of experience in micro-motor production and development, providing customers with flexible and professional customized services.
Description
2430 Brushless DC worm gear motor rotates at 25 rpm under no load (can be customized according to customer needs), rated voltage 12v, maximum efficiency point torque 437.936mN.m, starting torque 1962mN.m, starting current 1.09A, yes Large torque, low noise, long life, fast heat dissipation, small size, large transmission ratio, large overload capacity, etc., can be customized supporting facilities, such as encoders, gearboxes, drives, etc., to meet customer customization needs.
Company Highlights
Overview
Warranty | 3 months - 1 year |
Place of Origin | Shenzhen, China |
Brand Name | Vshida |
Model Number | VSD-GBL2430 |
Usage | Industrial equipment, electric valve, screwdriver, air pump, water pump, home appliance, automobile, smart hardware, smart home, electric toothbrush, smart pan/tilt, rearview mirror, etc. |
Type | Gear motor |
Weight | TBD (different ratio different weight) |
Components | Diversifed |
Construction | Permanent Magnet |
Commutation | Brushless/Brush |
Protect Feature | Customized(Waterproof, Fireproof, Totally closed） |
Efficiency | 92% |
Bearing | ball bearing |
| Rated speed | 50 (rpm)(Customized） |
| Starting torque | 4100 mN.m |
Rated Voltage | 24 (V) |
Load current | 0.087 A |
| Dimensions | 46*32 (mm) |
Payment terms | 30% advance, 70% balance |
Certificate | IATF16949 |
Customized | Acceped |
Product Description
Make at least one new motor per month.
Motor Parameter
VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STARTING | |||||
NOMINAL V | SPEED r/min | CURRENT A | SPEED r/min | CURRENT A | TORQUE mN.m | OUTPUT W | TORQUE mN.m | CURRENT A |
24 | 50 | 0.087 | 42 | 0.426 | 692.477 | 3.028 | 4100.58 | 2.096 |
| 12 | 25 | 0.09 | 19 | 0.313 | 437.936 | 0.891 | 1962 | 1.09 |
Product Size
Customizing Item
Output shaft, Lead wire, Connector, Mounting hole, Speed
If you need to match the driver, encoder, gear box, please contact us!!!
Performance Curve
The information above is just provided as a guide; the kind and specifications of a particular gear motor can be altered.
Product Details
| 100% actual photos |
|
Rotor:High temperature resistance, low current resistance, and low energy loss are all characteristics of pure copper wire that has been coiled around a premium iron core. | End cap: Use premium raw materials to improve heat dissipation, fix the motor's rotor, and lengthen product life. | |
| 100% actual photos |
|

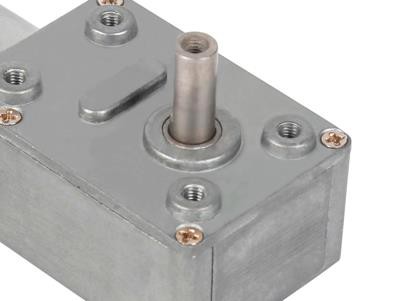

Bearings: high-quality bearings that can be choose (oil bearing/ball bearing), reputed bearing brand. | Chassis: Pick materials with a long service life, great quality, and resistance to rust, corrosion, wear, and wear-and-tear. |
Product Features
Combine with 24mm brushless dc motor
Voltage Range from 6 volt to 24 volt
2430 Brushless DC worm gear motor shaft can be custom made such as threaded shaft
Special customized gears available
DC worm gearbox
3-4 stage gearbox, 65/1-900/1 reduction ratio
Lifetime more than 2000h
Rated torque 3-5kg.cm
Company Strength
We have more than 500 trained employees and a monthly productivity of more than 4.5 million motors thanks to modern automated production lines. To further ensure that the motors comply with CE, REACH, and RoHS laws, we have comprehensive quality control methods in place with more than 300 high-end machines of various types.
Product Certificate
Some of our partners
We are ecstatic to collaborate with you as a long-term partner in China. We have made it our mission for many years to supply the majority of the European and American markets with high torque DC gear motors.
Why choose us
Application
Micro motors can be modified for different use scenarios and have a very wide variety of applications. If you have any unique requirements, please contact us.
Transport Packing
The 2430 Brushless DC worm gear motor is packed in shockproof foam, suitable carton size. If you require specific packaging services, please contact us in advance.
Payment & Delivery
FA
Q: What is your delivery time?
A: Generally speaking, it takes 3-7 days for our regular standard products, and about 25 days for customized products. But we are very flexible in delivery time, it will depend on your order quantity and cycle
Q: What is your payment term?
A: For all our new customers, we will need 30% deposit, 70% paid before shipment.
Q: After receiving my inquiry, when will you reply?
A: Once we receive your inquiry, we will reply within 24 hours.
Q: What is the minimum order quantity?
A: Our minimum order quantity depends on different motor models, please email us for inquiries.
Q: How to order?
A: Send us an inquiry → Receive our quotation → Negotiate details → Confirm samples → Sign contract/deposit → Mass production → Stock up → Balance/delivery → Further cooperation
Q: Do you accept customization?
A: Of course, because we have a strong design team, any questions will be answered by our technology.
Q: What kind of data do I need to provide if I want to order?
A: Please tell us your voltage, speed, torque and dimensions and other parameters you know.
